SECTION 9A

BODY & ACCESSORIES (BODY WIRING SYSTEM)

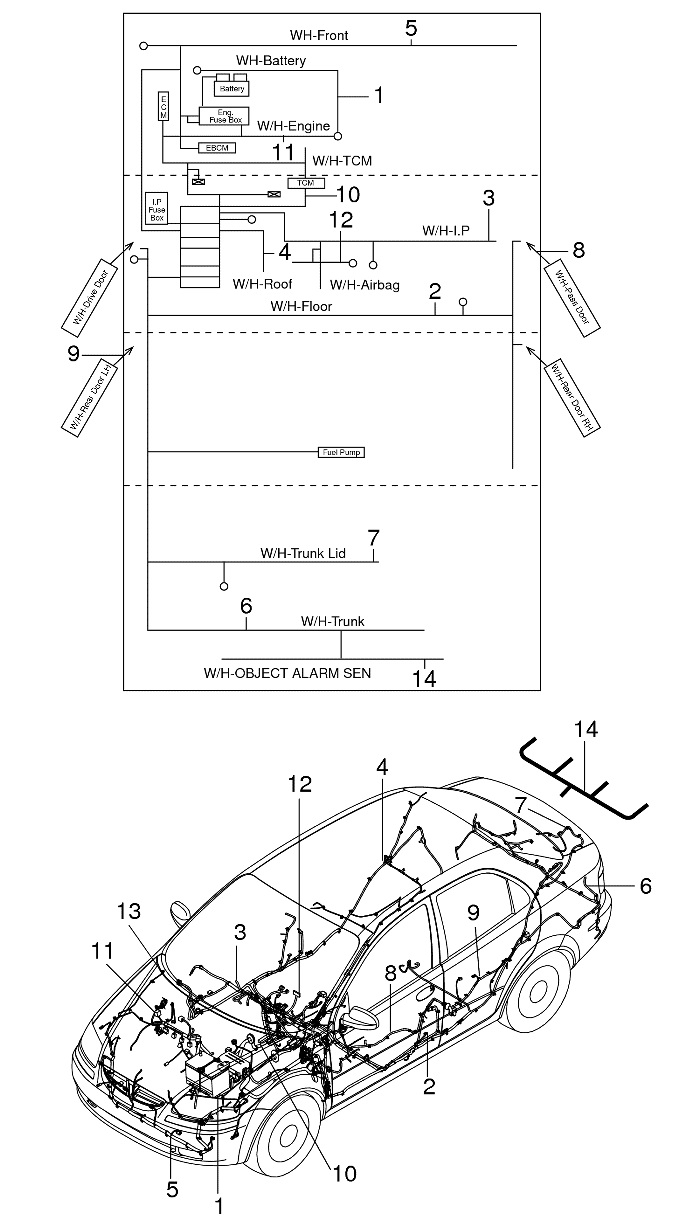

G159A01A
Display graphicTranslations of text in graphics


BODY WIRING SYSTEM - WIRING HARNESS (911)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. CABLES, BATTERY - REPLACE
.
.
.
.
.
.
Battery to Alternator
9110100
0.8
0.8
0.6
0.6
0.6
Negative
9110300
0.5
0.5
0.5
—
—
2
. WIRING, FLOOR - REPLACE
9110500
2.6
2.6
4.2
4.7
4.7
3
. WIRING, INST PANEL - REPLACE
9110700
2.2
2.3
3.2
3.2
3.2
4
. WIRING, ROOF - REPLACE
9110900
1.3
1.3
1.7
1.3
1.3
5
. WIRING, FRONT - REPLACE
9111300
2.6
2.6
1.7
1.2
1.2
6
. WIRING, REAR - REPLACE
9111700
0.4
0.4
0.6
0.4
0.4
7
. WIRING, TRUNK LID - REPLACE
9112100
0.5
0.5
0.5
0.7
0.7
8
. WIRING, FRONT DOOR - REPLACE
9112300
0.5
0.5
0.9
1.1
1.1
9
. WIRING, REAR DOOR - REPLACE
9112500
0.5
0.5
0.9
0.8
0.8
10
. WIRING, TCM - REPLACE
9112800
0.8
0.8
0.8
1.0
1.0
11
. WIRING, ENGINE CONTROL - REPLACE
9112900
1.2
1.2
1.4
2.5
2.5
12
. WIRING, AIRBAG - REPLACE
9113400
1.3
1.3
1.4
2.4
2.4
13
. WIRING, RON S/W - REPLACE
9113500
0.2
0.2
0.2
0.2
0.2
14
. WIRING, REAR OBJECT SEN WRG - REPLACE
9114900
—
—
—
1.1
1.1
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA
