Service Manual2007 Nubira-Lacetti/Kalos-Aveo/Evanda-Epica BODY & ACCESSORIES (INTERIOR TRIM)

SECTION 9G

BODY & ACCESSORIES (INTERIOR TRIM)

INTERIOR TRIM - INSTRUMENT PANEL (931)

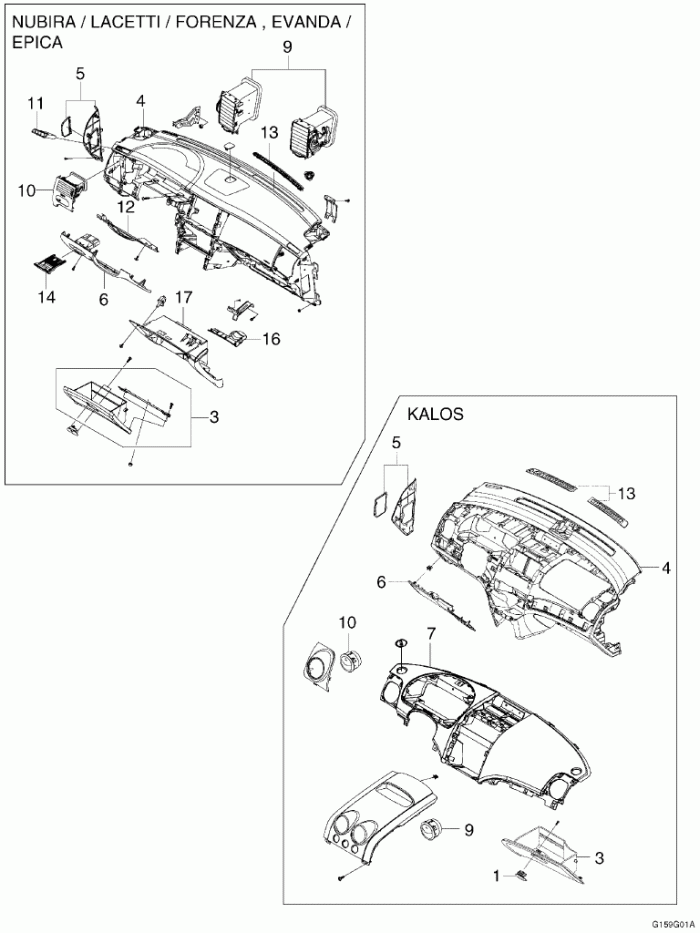

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2
1	LOCK, COMPARTMENT I/P - REPLACE	9310100	0.2	0.2	0.2	0.2	0.2
2	HINGE AND/OR STRIKER, COMPARTMENT I/P - ADJUST OR REPLACE	9310300	0.2	0.2	0.3	0.2	0.2
3	BOX, GLOVE - REPLACE	9310700	0.2	0.2	0.3	0.3	0.3
4	PANEL, CARRIER ASSEMBLY INSTRUMENT CONTROL - REPLACE	9310900	2.1	2.1	2.5	2.5	2.6
	INC : Enable and disable SIR system if nec.	.	.	.	.	.	.
	INC : Transfer of all nec. parts	.	.	.	.	.	.
	A - W/Passenger side air bag	931090A	0.2	0.2	0.2	0.2	0.2
5	PANEL, SHROUD SIDE TRIM (KICK PAD) - REPLACE	.	.	.	.	.	.
	Right	9311100	0.2	0.2	0.2	0.2	0.2
	Left	9311200	0.2	0.2	0.2	0.2	0.2
6	PANEL, INSTRUMENT UPR - REPLACE	9311300	0.2	2.2	2.6	0.3	0.3
7	COVER, INSTRUMENT LOWER - REPLACE	9311400	0.2	0.2	0.2	0.3	0.3
8	COVER, BLANK - REPLACE	9311600	0.2	--	0.2	0.2	0.2
9	NOZZLE, VENTILATION CENTER - REPLACE	9311800	0.3	0.3	0.4	0.4	0.6
10	NOZZLE, VENTILATION - REPLACE	.	.	.	.	.	.
	Left	9311900	2.1	2.1	0.6	2.7	0.2
	Right	9311910	2.1	2.1	0.6	2.7	0.2
	Both	9311920	2.1	2.1	1.0	2.7	0.3
11	NOZZLE, DEFROSTER - REPLACE	.	.	.	.	.	.
	Right	9312100	--	--	0.3	0.2	0.2
	Left	9312200	--	--	0.3	0.2	0.2
	Both	9312300	--	--	0.5	0.3	0.3
12	KNEE BOLSTER - REPLACE	.	.	.	.	.	.
	Right	9312400	0.4	0.4	0.4	0.4	0.4
	Left	9312500	0.4	0.4	0.4	0.4	0.4

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - INSTRUMENT PANEL (931)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2
13	GRILLE, WINDSHIELD DEFROSTER - REPLACE	.	.	.	.	.	.
	Right	9312600	--	--	--	0.2	0.2
	Left	9312700	--	--	--	0.2	0.2
	Both	9312800	--	--	--	0.3	0.3
-	SEAL, IP FOAM ADRIFT - REPAIR	9312810	-	-	0.2	-	-
14	BOX, COIN - REPLACE	9313000	0.2	--	--	0.2	0.2
15	COVER, PASSENGER AIR BAG (RHD ONLY) - REPLACE	9313200	0.3	0.3	--	--	--
16	COVER, A/C I/P - REPLACE	9314000	--	--	--	0.2	0.2
17	HOUSING, GLOVE BOX - REPLACE	9314100	--	--	--	0.4	0.4

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - MOLDING & SWITCH (932)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2

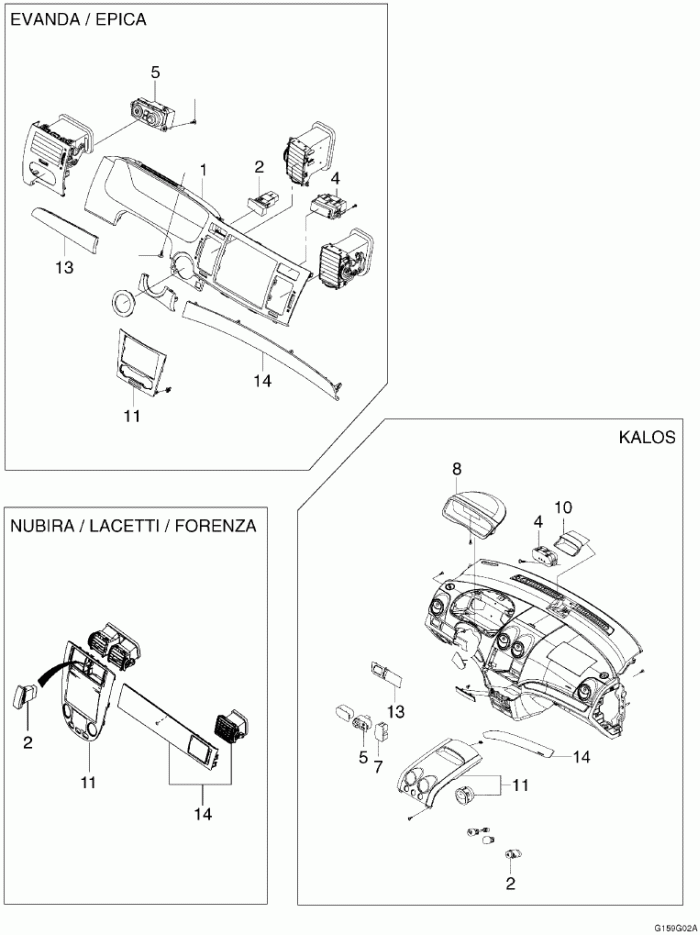

1	PLATE, I/P CLUSTER TRIM - REPLACE	9320100	--	--	0.3	0.6	0.4
2	SWITCH ASS'Y - REPLACE	.	.	.	.	.	.
	Hazard Warning	9320300	0.2	0.2	0.2	0.4	0.2
	Fog Lamp	9320400	0.2	0.2	0.3	0.3	0.3
	Rear Defogger	9320450	0.3	0.3	0.3	0.3	0.4
3	SWITCH, ASS'Y - REPLACE	.	.	.	.	.	.
3	Anti-theft Lamp	9320500	0.3	0.3	0.3	0.3	0.5
4	CLOCK - REPLACE	9320600	0.2	0.2	0.2	0.4	0.4
5	SWITCH, ELECTRIC REMOTE MIRROR - REPLACE (ONE PIECE)	9320800	0.3	0.3	0.2	0.3	0.3
6	HOUSING, SWITCH - REPLACE	9321100	--	--	0.2	0.2	0.2
7	SWITCH, HEAD LAMP LEVELING - REPLACE	9321500	0.3	0.3	0.3	0.3	0.3
8	MOLDING, UPPER CLUSTER - REPLACE	9322400	0.2	0.2	--	--	--
9	MOLDING, LOWER CLUSTER - REPLACE	9322600	0.2	0.2	--	--	--
10	COVER, CLOCK - REPLACE	9322700	0.2	0.2	--	--	--
11	MOLDING, CENTER UPPER INSTRUMENT PANEL - REPLACE	9322800	0.2	0.2	0.2	--	0.2
12	SWITCH, DIMMER CONTROL - REPLACE	9322900	--	--	0.3	0.3	0.3
13	MOLDING, INSTRUMENT PANEL GARNISH - REPLACE	9323000	--	0.2	0.4	0.2	0.2
14	BEZEL, I/P PASS - REPLACE	9323100	--	0.3	0.3	0.3	0.3

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - INSTRUMENT PARTS (933)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2

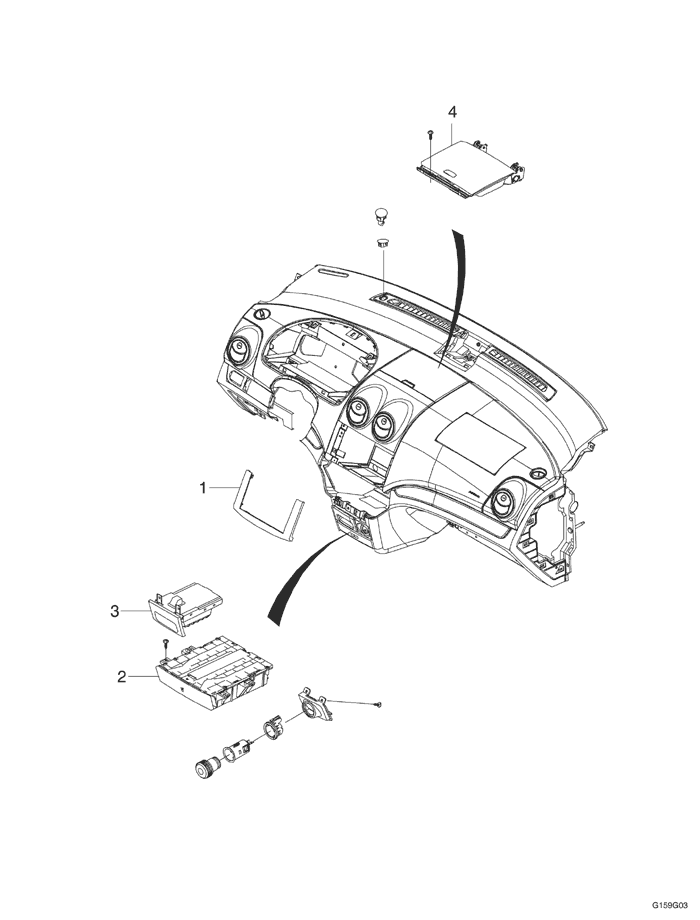

1	PLATE, I/P CENTER TRIM - REPLACE	9330100	0.2	0.2	--	0.2	0.2
2	CUP, HOLDER, INSTRUMENT PANEL - REPLACE	9330300	2.0	0.2	--	0.3	0.3
3	ASH TRAY, I/P - REPLACE	9330500	0.2	0.2	0.6	0.2	0.2
4	BOX, DEPOSIT - REPLACE	9330900	0.2	0.2	0.2	0.2	0.2

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - CONSOLE (934)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2

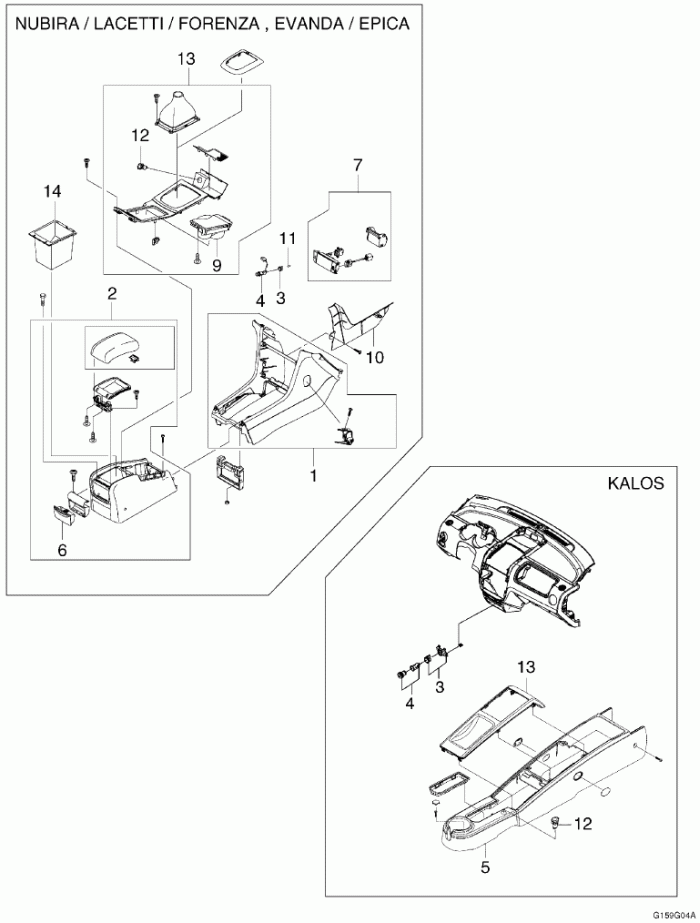

1	CONSOLE ASSEMBLY, FRONT - REPLACE	.	.	.	.	.	.
	Auto	9340100	--	--	0.5	0.5	0.5
	Manual	9340200	--	--	0.5	0.5	0.5
2	CONSOLE ASSEMBLY, REAR - REPLACE	.	.	.	.	.	.
	Auto	9340400	--	--	0.4	0.4	0.4
	Manual	9340500	--	--	0.4	0.4	0.4
3	HOUSING, CIGARETTE LIGHTER - REPLACE	9340700	0.2	0.2	0.6	0.2	0.2
4	LIGHTER ASSEMBLY, CIGARETTE - REPLACE	9340900	0.3	0.3	0.2	0.2	0.2
5	CONSOLE ASSEMBLY - REPLACE	9341100	0.3	0.3	--	--	--
6	ASHTRAY, REAR - REPLACE	9341300	--	--	0.2	0.2	0.2
7	ASHTRAY, CONSOLE - REPLACE	9341400	--	--	--	0.2	0.2
8	HOUSING, CONSOLE ASHTRAY	9341440	--	--	--	0.3	0.3
9	HOLDER, CUP, CONSOLE - REPLACE	9341500	--	--	0.2	0.2	0.2
10	EXTENSION - CONSOLE, FRONT	.	.	.	.	.	.
	Right	9341600	--	--	--	0.2	0.2
	Left	9341610	--	--	--	0.2	0.2
	Both	9341620	--	--	--	0.3	0.3
11	LAMP, ASHTRAY	9341650	0.2	0.2	0.2	0.3	0.3
12	JACK, EXTRA POWER SUPPLY (CONSOLE) - REPLACE	9341700	0.3	0.3	0.3	0.3	0.3
13	COVER, CONSOLE - REPLACE	9342400	--	0.2	0.3	0.3	0.3
14	BOX, REAR CONSOLE - REPLACE	9342500	--	--	0.2	0.2	0.2
15	LID, REAR CONSOLE - REPLACE	9342600	--	--	0.2	0.2	0.2

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - FRONT DOOR TRIM (935)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2

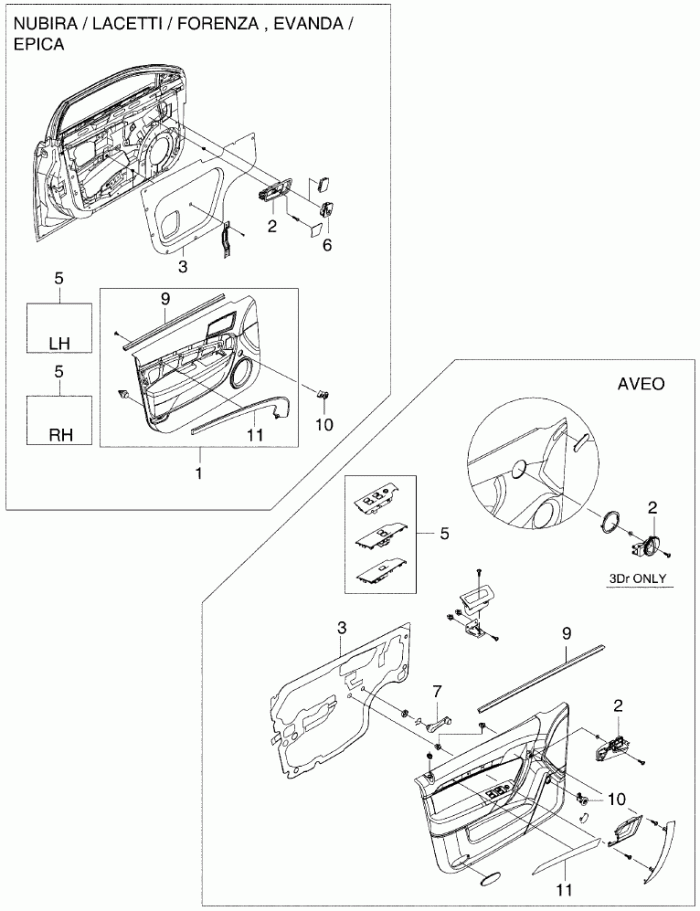

1	TRIM ASSEMBLY, FRONT DOOR - REPLACE	.	.	.	.	.	.
	Right	9350100	0.3	0.3	0.3	0.4	0.4
	Left	9350200	0.3	0.3	0.3	0.4	0.4
	Both	9350300	0.5	0.5	0.5	0.7	0.7
2	HANDLE, FRONT DOOR INSIDE - REPLACE	.	.	.	.	.	.
	Right	9350500	0.4	0.4	0.5	0.4	0.4
	Left	9350600	0.4	0.4	0.5	0.4	0.4
	Both	9350700	0.7	0.7	0.8	0.7	0.7
3	SEAL, FRONT DOOR TRIM	9350800	0.3	0.3	0.3	0.5	0.5
4	GRILLE, FRONT DOOR DEFROSTER - REPLACE	9351100	--	--	--	--	--
5	SWITCH, WINDOW LIFTER MAIN - REPLACE	9351300	0.3	0.3	0.3	0.3	0.3
5	Passenger	9351310	0.3	0.3	0.3	0.3	0.3
6	SWITCH, HEATING MAT - REPLACE	.	.	.	.	.	.
	Right	9351320	--	--	--	--	0.4
	Left	9351330	--	--	--	--	0.4
	Both	9351340	--	--	--	--	0.7
7	CRANK, WINDOW LIFTER, FRONT - REPLACE	.	.	.	.	.	.
	Right	9351500	0.2	0.2	--	--	--
	Left	9351600	0.2	0.2	--	--	--
	Both	9351700	0.3	0.3	--	--	--
8	GRILLE, FRONT SPEAKER - REPLACE	.	.	.	.	.	.
	Right	9351800	--	--	--	0.4	0.4
	Left	9351900	--	--	--	0.4	0.4
	Both	9352000	--	--	--	0.5	0.5
9	WEATHER STRIP, FRONT DOOR INNER - REPLACE	.	.	.	.	.	.
	Right	9353100	0.3	0.3	0.3	0.3	0.3
	Left	9353200	0.3	0.3	0.3	0.3	0.3
	Both	9353300	0.5	0.5	0.5	0.5	0.5
10	SWITCH, TRUNK OPEN - REPLACE	9353400	--	--	0.3	0.3	0.3
11	GARNISH, FRONT DOOOR TRIM - REPLACE	.	.	.	.	.	.
	Right	9353500	--	--	--	--	0.4
	Left	9353510	--	--	--	--	0.4
	Both	9353520	--	--	--	--	0.7

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - REAR DOOR TRIM (936)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2

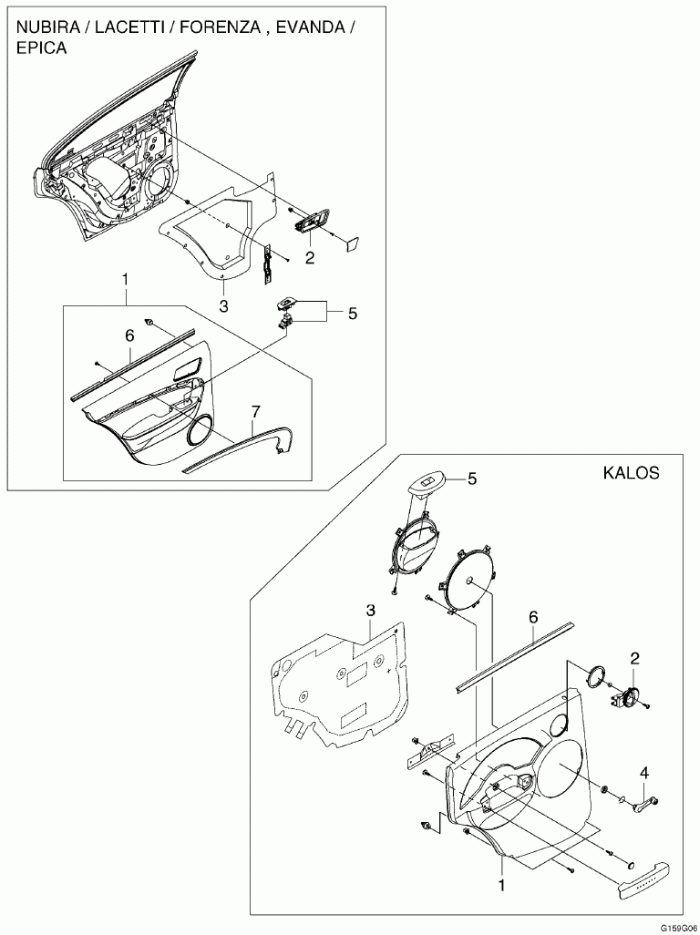

1	TRIM ASSEMBLY, REAR DOOR - REPLACE	.	.	.	.	.	.
	Right	9360300	0.3	0.3	0.3	0.4	0.4
	Left	9360400	0.3	0.3	0.3	0.4	0.4
	Both	9360500	0.5	0.5	0.5	0.7	0.7
2	HANDLE, REAR DOOR INSIDE - REPLACE	.	.	.	.	.	.
	Right	9360700	0.4	0.4	0.4	0.4	0.4
	Left	9360800	0.4	0.4	0.4	0.4	0.4
	Both	9360900	0.7	0.7	0.7	0.7	0.7
3	SEAL, REAR DOOR TRIM - REPLACE	9361100	0.4	0.4	0.4	0.5	0.5
4	CRANK, WINDOW LIFTER - REPLACE	.	.	.	.	.	.
	Right	9361300	0.2	0.2	0.2	--	--
	Left	9361400	0.2	0.2	0.2	--	--
	Both	9361500	0.3	0.3	0.3	--	--
5	SWITCH, WINDOW LIFTER REAR - REPLACE	.	.	.	.	.	.
	Right	9361700	0.3	0.3	0.3	0.3	0.3
	Left	9361800	0.3	0.3	0.3	0.3	0.3
	Both	9361900	0.5	0.5	0.5	0.5	0.5
6	WEATHER STRIP, REAR DOOR INNER - REPLACE	.	.	.	.	.	.
	Right	9363100	0.3	0.3	0.3	0.3	0.3
	Left	9363200	0.3	0.3	0.3	0.3	0.3
	Both	9363300	0.5	0.5	0.5	0.5	0.5
7	GARINSH, REAR DOOR TRIM - REPLACE	.	.	.	.	.	.
	Right	9363400	--	--	--	--	0.4
	Left	9363410	--	--	--	--	0.4
	Both	9363420	--	--	--	--	0.7

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - PILLAR TRIM (938)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2

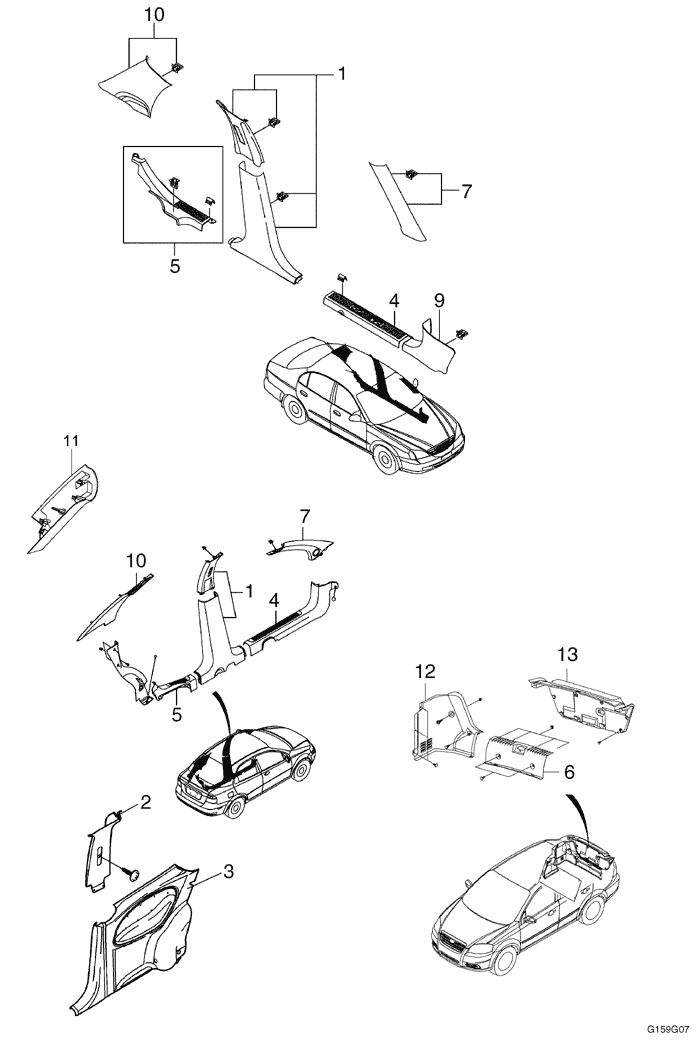

1	TRIM, CENTER PILLAR - REPLACE	.	.	.	.	.	.
	Upper Right	9380100	0.2	0.2	0.3	0.3	0.3
	Lower Right	9380200	0.2	0.2	0.3	0.3	0.3
	Both	9380300	0.3	0.3	0.4	0.4	0.4
	TRIM, CENTER PILLAR - REPLACE	.	.	.	.	.	.
	Upper Left	9380400	0.2	0.2	0.3	0.3	0.3
	Lower Left	9380500	0.2	0.2	0.3	0.3	0.3
2	TRIM, CENTER PILLAR OPR (HATCH BACK) - REPLACE	.	.	.	.	.	.
	Right	9380610	0.5	0.5	--	--	--
	Left	9380640	0.5	0.5	--	--	--
3	TRIM, SIDE PNL (HATCH BACK) - REPLACE	.	.	.	.	.	.
	Right	9380620	0.3	0.3	--	--	--
	Left	9380650	0.3	0.3	--	--	--
4	COVER, ROCKER PANEL FRONT - REPLACE	.	.	.	.	.	.
	Right	9380700	0.2	0.2	0.2	0.2	0.2
	Left	9380800	0.2	0.2	0.2	0.2	0.2
	Both	9380900	0.3	0.3	0.3	0.3	0.3
5	COVER, ROCKER PANEL REAR - REPLACE	.	.	.	.	.	.
	Right	9381100	0.2	0.2	0.2	0.2	0.2
	Left	9381200	0.2	0.2	0.2	0.2	0.2
	Both	9381300	0.3	0.3	0.3	0.3	0.3
6	TRIM, BACK PANEL - REPLACE	9381400	0.2	0.2	0.2	0.2	0.2
6	TRIM, TAILGATE - REPLACE	9381500	0.2	0.2	0.2	0.2	0.2
7	MOLDING, WINDSHIELD GARNISH - REPLACE	9381600	0.2	0.2	0.2	0.2	0.2
8	TRIM, TRUNK - REPLACE	9381800	0.2	0.2	0.3	0.3	0.3
8	TRIM, QUARTER (WAGON) - REPLACE	9381900	--	--	0.3	--	--

S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

INTERIOR TRIM - PILLAR TRIM (938)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S1	S2	N	L1	L2
9	TRIM, SHROUD SIDE - REPLACE	.	.	.	.	.	.
	Right	9382100	0.2	0.2	0.2	0.2	0.2
	Left	9382200	0.2	0.2	0.2	0.2	0.2
	Both	9382300	0.3	0.3	0.3	0.3	0.3
10	TRIM, C PILLAR - REPLACE	9382400	0.6	0.6	0.6	0.2	0.2
11	TRIM, D PILLAR (WAGON) - REPLACE	9382500	--	--	0.2	--	--
12	TRIM, REAR SIDE - REPLACE	.	.	.	.	.	.
	Right	9382600	0.2	0.2	0.2	0.2	0.2
	Left	9382700	0.2	0.2	0.2	0.2	0.2
13	TRUNK TRIM LID INNER - REPLACE	9382900	0.2	0.4	--	--
