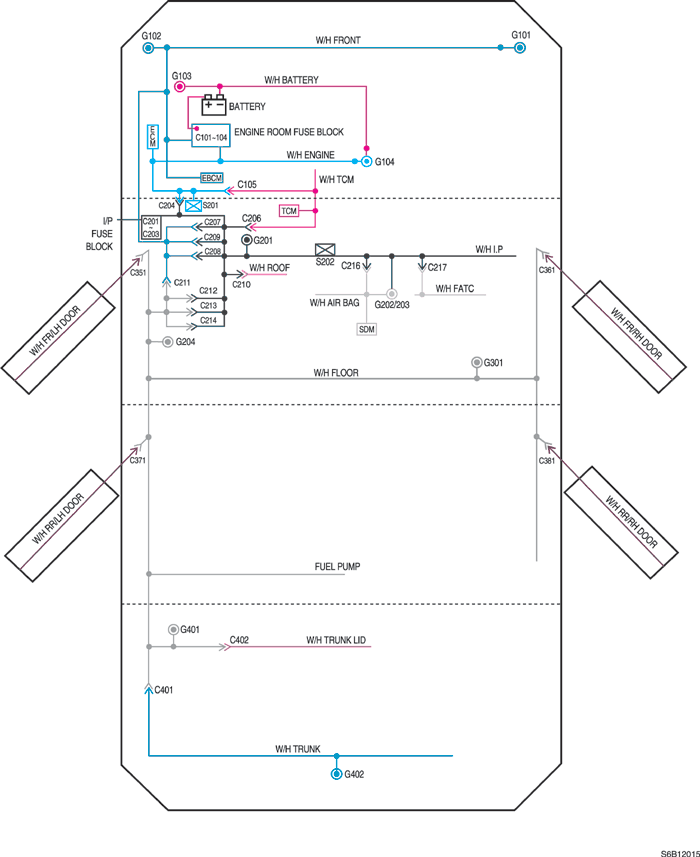

C101

32

Black

Engine - Engine Fuse Block

Engine Fuse Block

C102

32

Gray

Front - Engine Fuse Block

Engine Fuse Block

C103

32

Brown

Front - Engine Fuse Block

Engine Fuse Block

C104

2

Colorless

Front - Engine Fuse Block

Engine Fuse Block

C105

3

Gray

Engine - TCM

Next to EBCM

C106

8

Black

Engine - Injector

Upper Cylinder

C201

76

Black

I.P - I.P Fuse Block

I.P Fuse Block

C202

20

White

I.P - I.P Fuse Block

I.P Fuse Block

C203

18

White

I.P - I.P Fuse Block

I.P Fuse Block

C204

18

Gray

I.P - Engine

Upper Driver Leg Room

C206

10

White

TCM - I.P

Below TCM

C207

12

Gray

Front - I.P

Below I.P Fuse Block

C208

20

Yellow

Front - I.P

Front TCM

C209

4

White

Front - I.P

Front TCM

C210

10

White

Roof - I.P

Below I.P Fuse Block

C211

15

Yellow

Front - Floor

Under Left A Pillar

C212

11

Blue

I.P - Floor

Under Left A Pillar

C213

20

White

I.P - Floor

Under Left A Pillar

C214

22

Black

I.P - Floor

Under Left A Pillar

C216

12

White

Air Bag - I.P

Behind Airconditioner

C217

16

White

I.P - FATC

Under Blower Motor

C351

29

White

Floor - Front Left Door

Under Left A Pillar

C361

29

White

Floor - Front Right Door

Under Right A Pillar

C371

6

White

Floor - Rear Left Door

Under Left B Pillar

C381

6

White

Floor - Rear Right Door

Under Right B Pillar

C401

8

White

Floor - Trunk

Behind Left Wheel House Trim

C402

6

White

Trunk Lid - Floor

Below Back Shelf Panel

G101

Front

Behind Right Headlamp

G102

Front

Behind Left Headlamp

G103

Battery

Below ECM

G104

Battery

Next to Start Motor

G201

I.P

Upper Mirror Control Switch

G202

Air Bag

Upper Mirror Control Switch

G203

I.P

Below Ashtray

G204

Floor

Under Right A Pillar

G301

Floor

Under Right Seat Cushion

G401

Floor

Upper Back Shelf Panel

G402

Trunk

Center Trunk Back Panel

S201

Brown/Gray

Engine

Behind I.P Fuse Block

S202

Colorless/Yellow

I.P

Behind Left Tie Bar
