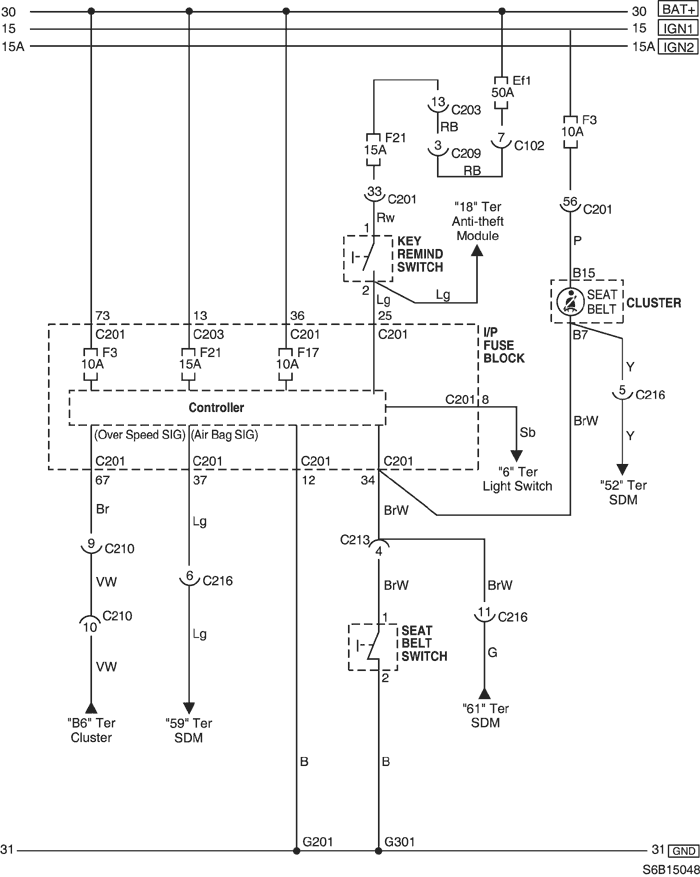

17. CHIME BELL, SEAT BELT & KEY REMIND SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C209 (4 Pin, White) | Front - I.P | Front TCM |
| C213 (20 Pin, White) | I.P - Floor | Under Left A Pillar |
| C216 (12 Pin, White) | Air Bag - I.P | Behind Airconditioner |
| G201 | I.P | Upper Mirror Control Switch |
| G301 | Floor | Under Right Seat Cushion |

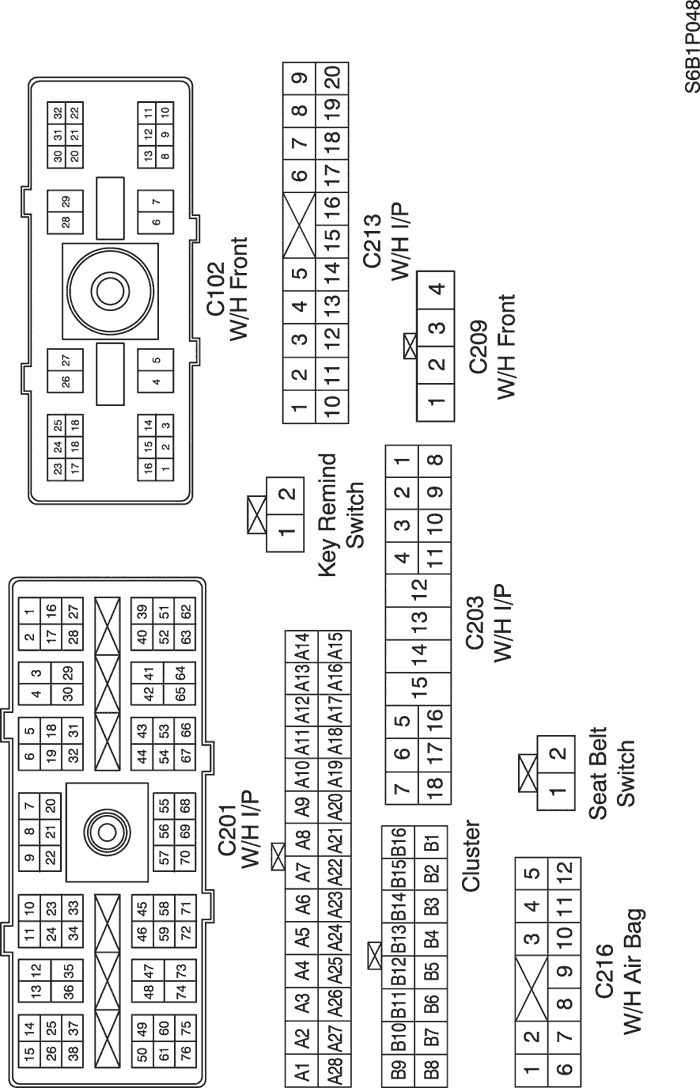

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
