21. POWER WINDOW CIRCUIT

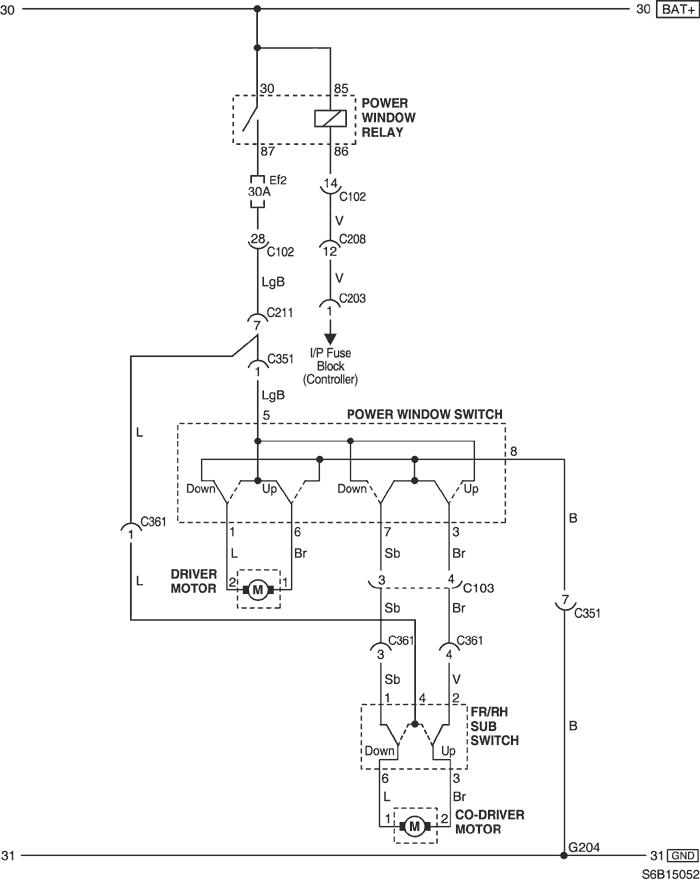

1) ONLY FRONT POWER WINDOW CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C211 (15 Pin, Yellow)Front - FloorUnder Left A Pillar
C351 (29 Pin, White)Floor - Front Left DoorUnder Left A Pillar
C361 (29 Pin, White)Floor - Front Right DoorUnder Right A Pillar
G204FloorUnder Right A Pillar

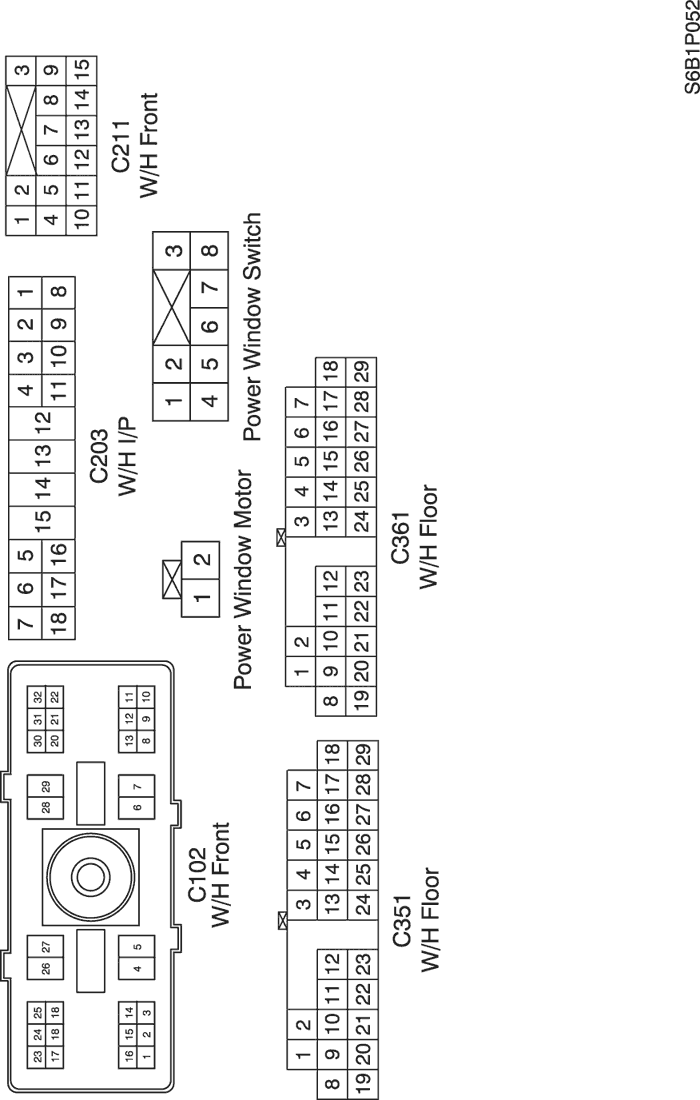

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

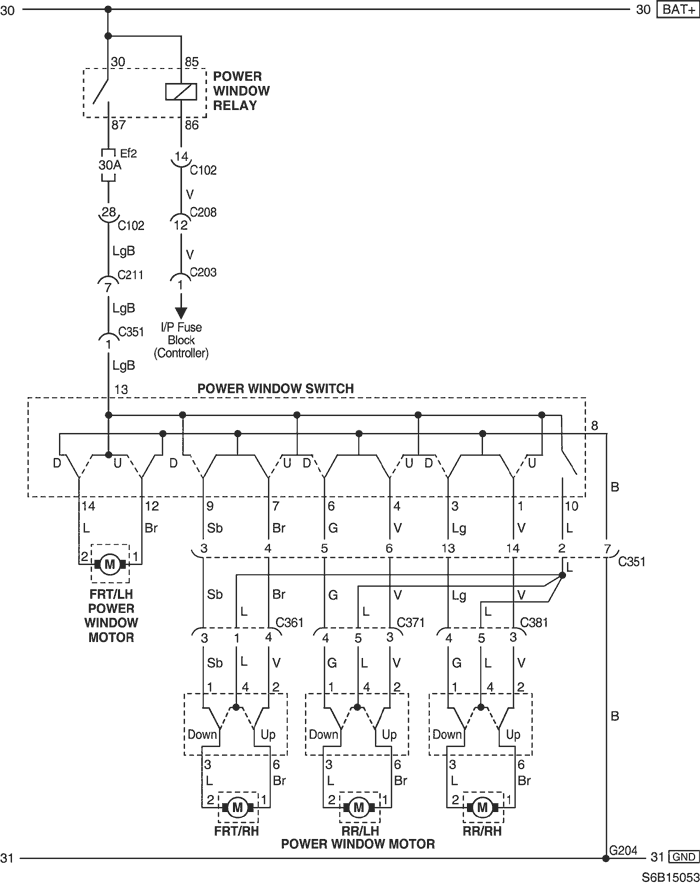

2) FRONT & REAR POWER WINDOW CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C208 (20 Pin, Yellow)Front - I.PFront TCM
C211 (15 Pin, Yellow)Front - FloorUnder Left A Pillar
C351 (29 Pin, White)Floor - Front Left DoorUnder Left A Pillar
C361 (29 Pin, White)Floor - Front Right DoorUnder Right A Pillar
C371 (6 Pin, White)Floor - Rear Left DoorUnder Left B Pillar
C381 (6 Pin, White)Floor - Rear Right DoorUnder Right B Pillar
G204FloorUnder Right A Pillar

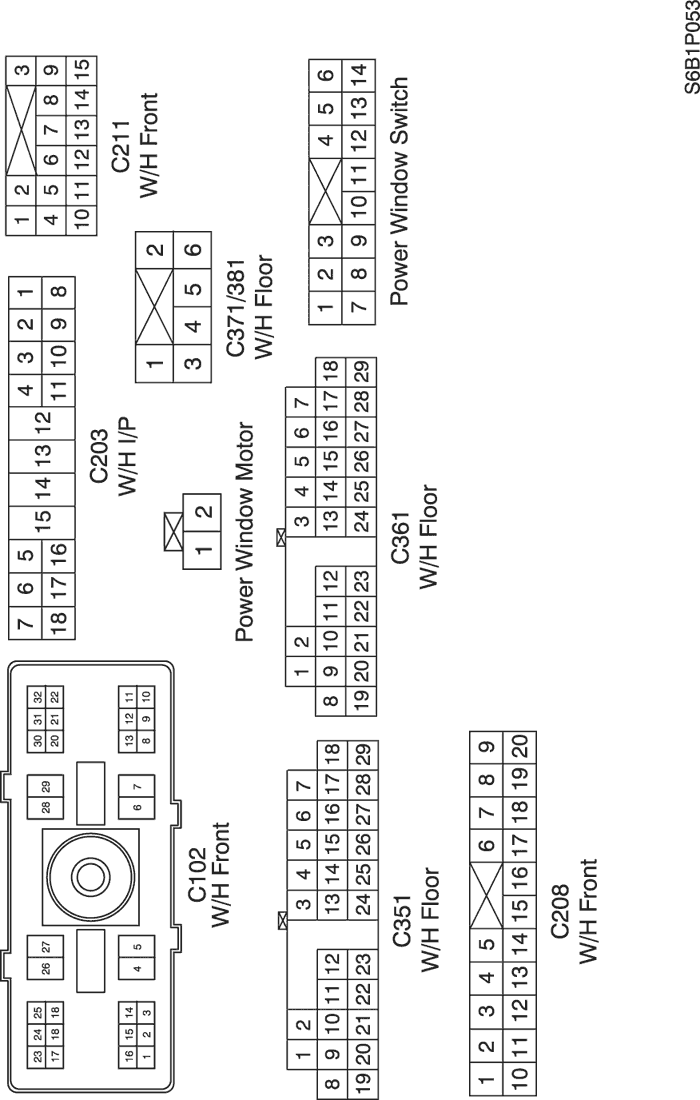

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

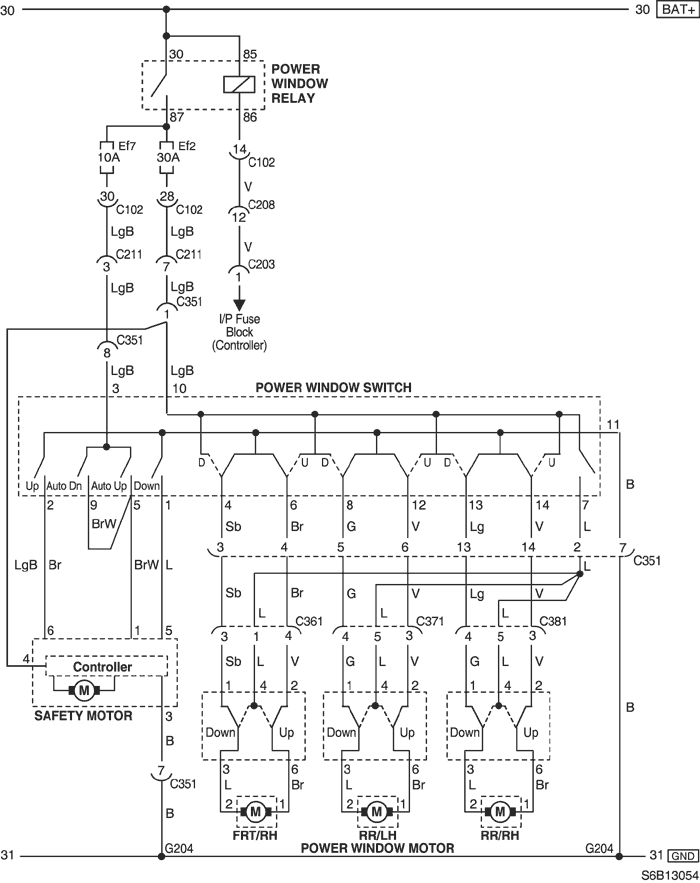

3) SAFETY POWER WINDOW CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C208 (20 Pin, Yellow)Front - I.PFront TCM
C211 (15 Pin, Yellow)Front - FloorUnder Left A Pillar
C351 (29 Pin, White)Floor - Front Left DoorUnder Left A Pillar
C361 (29 Pin, White)Floor - Front Right DoorUnder Right A Pillar
C371 (6 Pin, White)Floor - Rear Left DoorUnder Left B Pillar
C381 (6 Pin, White)Floor - Rear Right DoorUnder Right B Pillar
G204FloorUnder Right A Pillar

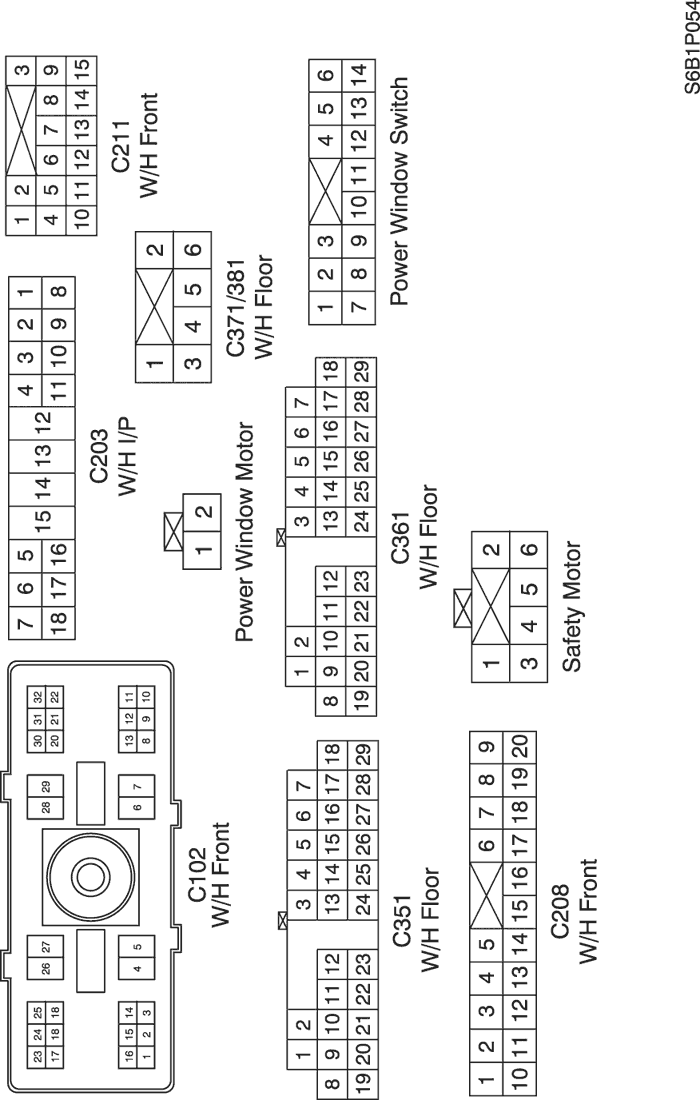

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
