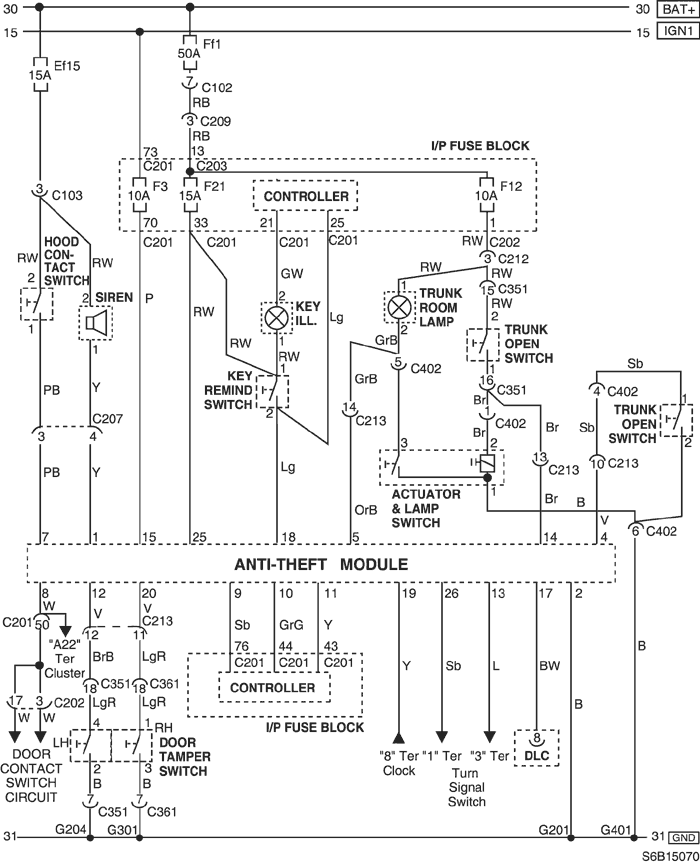

30. ANTI-THEFT CONTROL SYSTEM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C202 (20 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C207 (12 Pin, Gray)Front - I.PBelow I.P Fuse Block
C212 (11 Pin, Blue)I.P - FloorUnder Left A Pillar
C213 (20 Pin, White)I.P - FloorUnder Left A Pillar
C351 (29 Pin, White)Floor - Front Left DoorUnder Left A Pillar
C361 (29 Pin, White)Floor - Front Right DoorUnder Right A Pillar
C402 (6 Pin, White)Trunk Lid - FloorBelow Back Shelf Panel
G201I.PUpper Mirror Control Switch
G204FloorUnder Right A Pillar
G301FloorUnder Right Seat Cushion
G401FloorUpper Back Shelf Panel

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
