4. ECM (ENGINE CONTROL MODULE) : SIRIUS D42

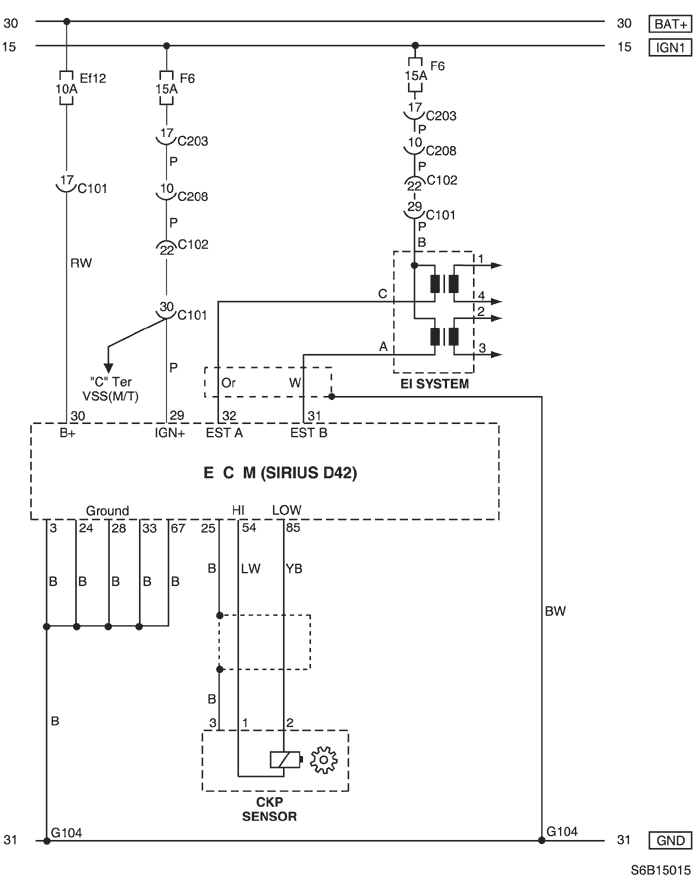

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM & CKP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C208 (20 Pin, Yellow)Front - I.PFront TCM
G104BatteryNext to Start Motor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

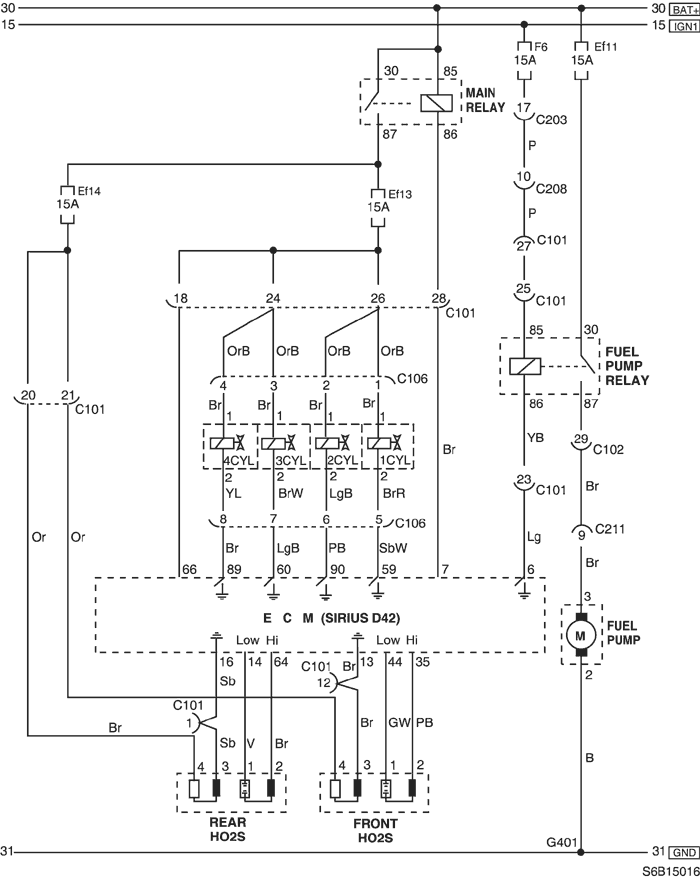

2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C208 (20 Pin, Yellow)Front - I.PFront TCM
C211 (15 Pin, Yellow)Front - FloorUnder Left A Pillar
G104BatteryNext to Start Motor

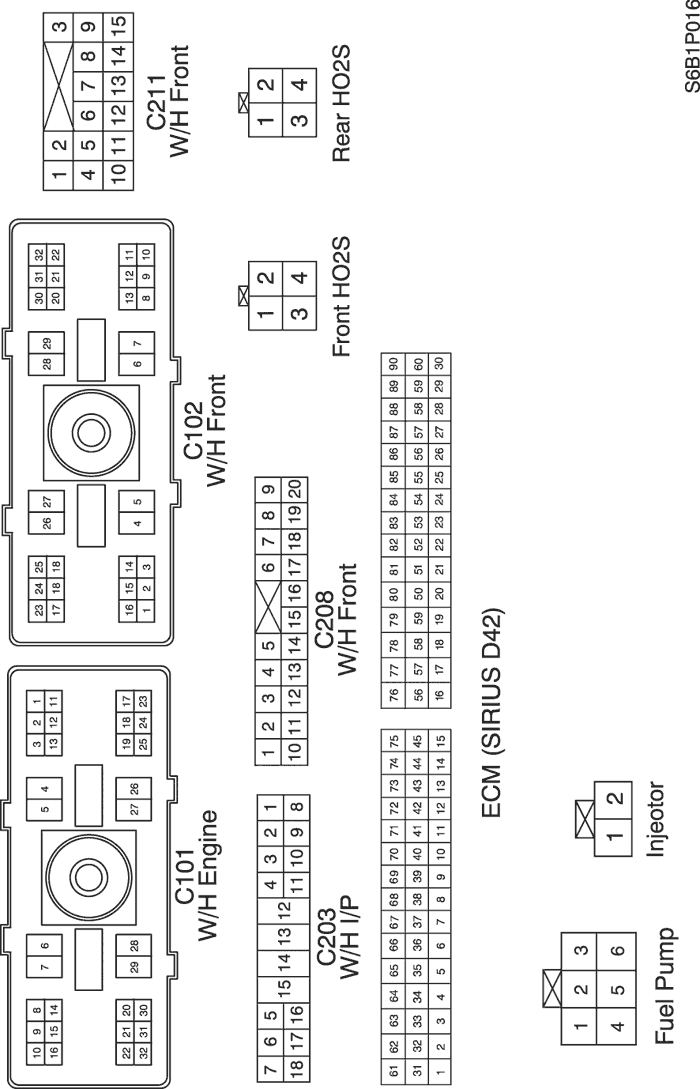

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


3) MITA & SENSOR (ECT, ROUGH ROAD, O2, MAP, IAT, ACP, EVAPORATOR TEMPERATURE & KNOCK) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Driver Leg Room
S201EngineBehind I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S201

Display graphicTranslations of text in graphics

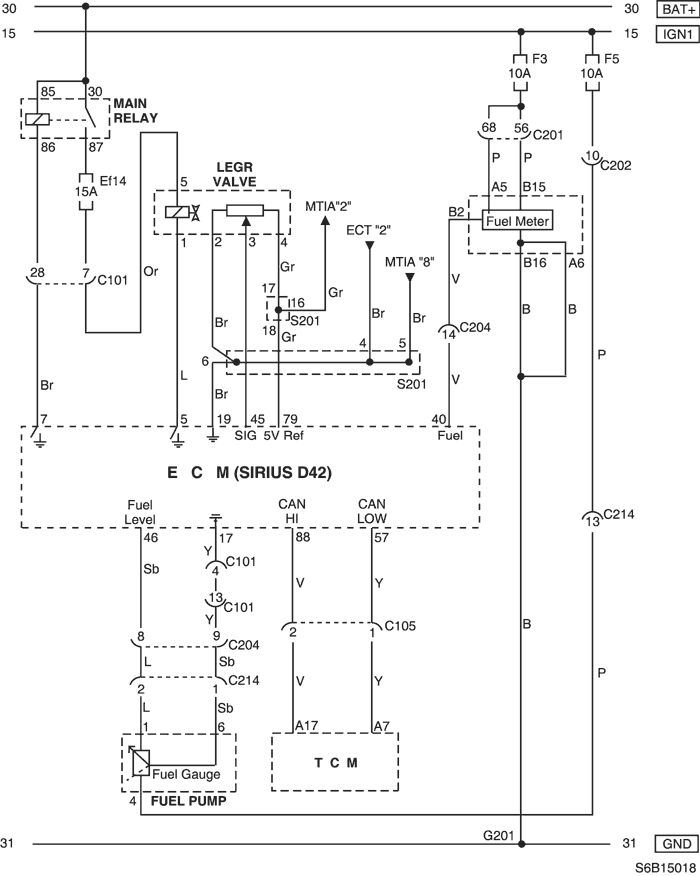

4) CLUSTER, EEGR VALVE, FUEL PUMP & TCM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C105 (3 Pin, Gray)Engine - TCMNext to EBCM
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C202 (20 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Driver Leg Room
C214 (22 Pin, Black)I.P - FloorUnder Left A Pillar
G201I.PUpper Mirror Control Switch

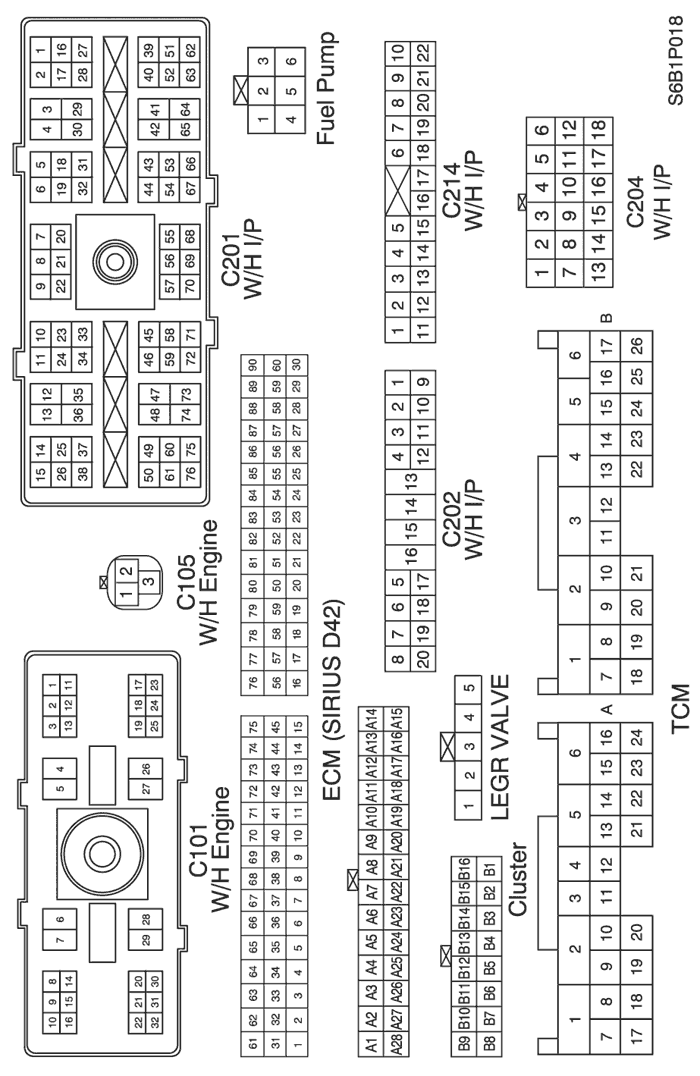

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S201

Display graphicTranslations of text in graphics

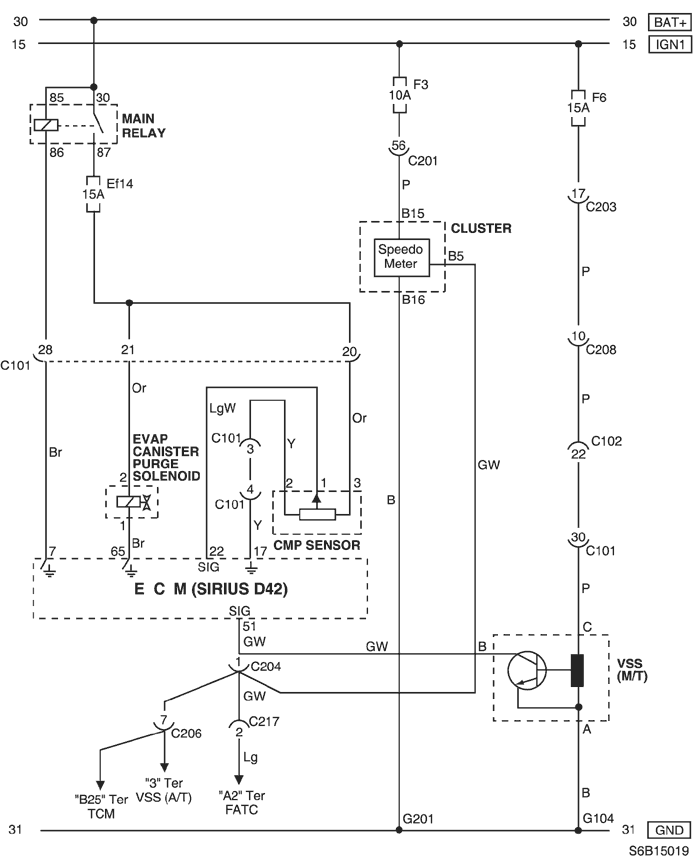

5) CMP SENSOR, EVAP CANISTER PURGE SOLENOID, CLUSTER & VSS CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Driver Leg Room
C206 (10 Pin, White)TCM - I.PBelow TCM
C217 (16 Pin, White)I.P - FATCUnder Blower Motor
G104BatteryNext to Start Motor
G201I.PUpper Mirror Control Switch

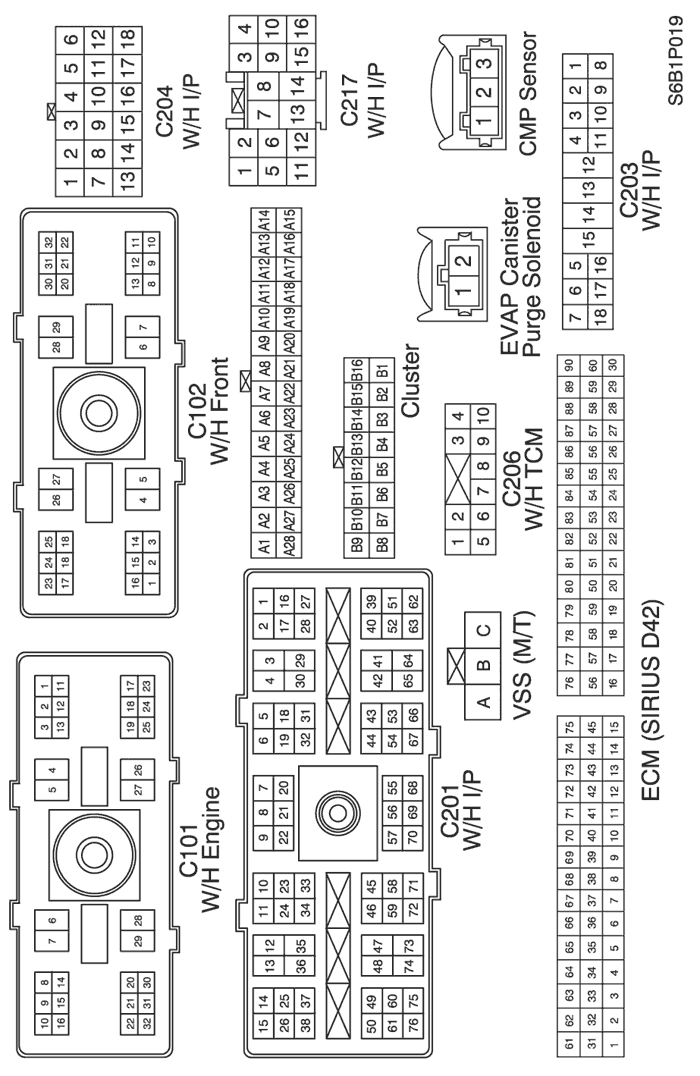

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

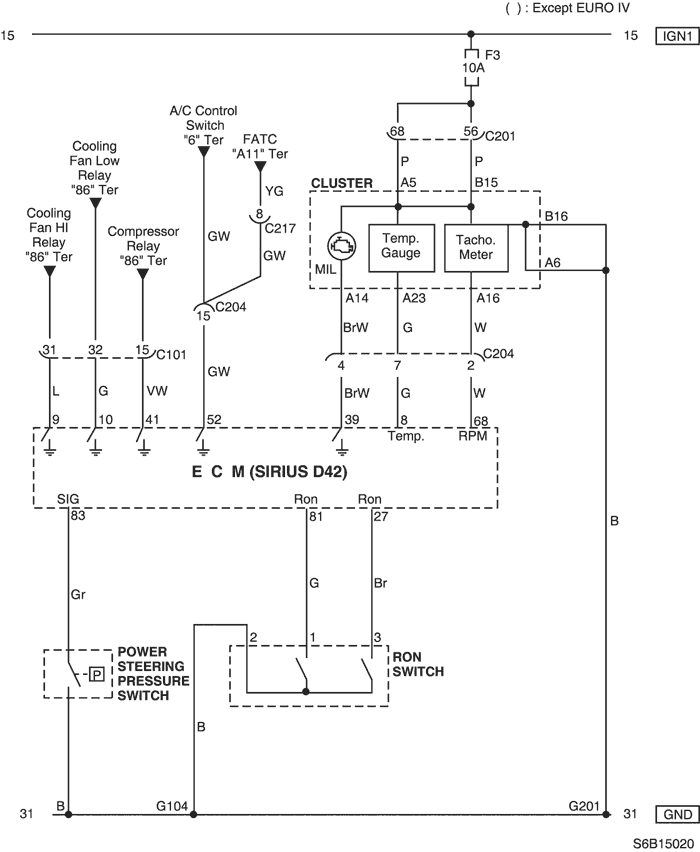

6) CLUSTER, POWER STEERING PRESSURE SWITCH & RON SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Driver Leg Room
G104BatteryNext to Start Motor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

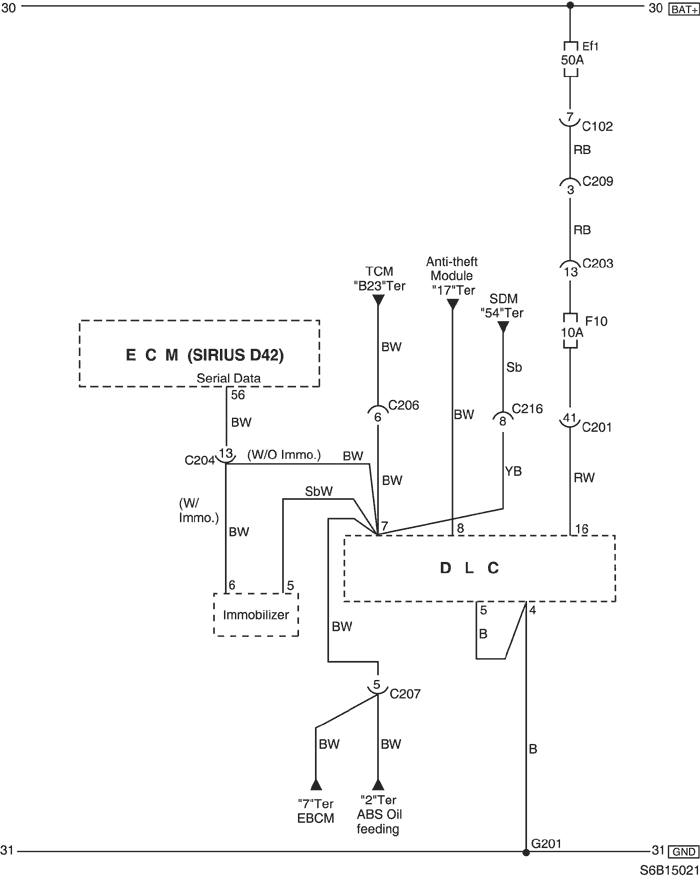

7) DLC, MIL & RON SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Driver Leg Room
C206 (10 Pin, White)TCM - I.PBelow TCM
C207 (12 Pin, Gray)Front - I.PBelow I.P Fuse Block
C209 (4 Pin, White)Front - I.PFront TCM
C216 (12 Pin, White)Air Bag - I.PBehind Airconditioner
G201I.PUpper Mirror Control Switch

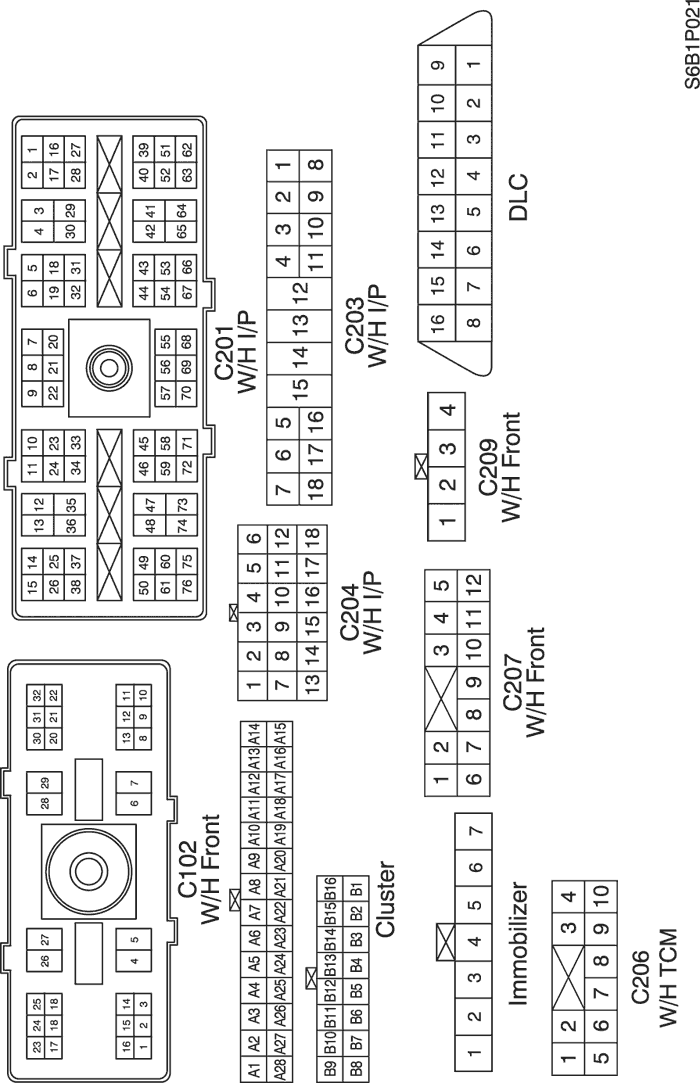

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
