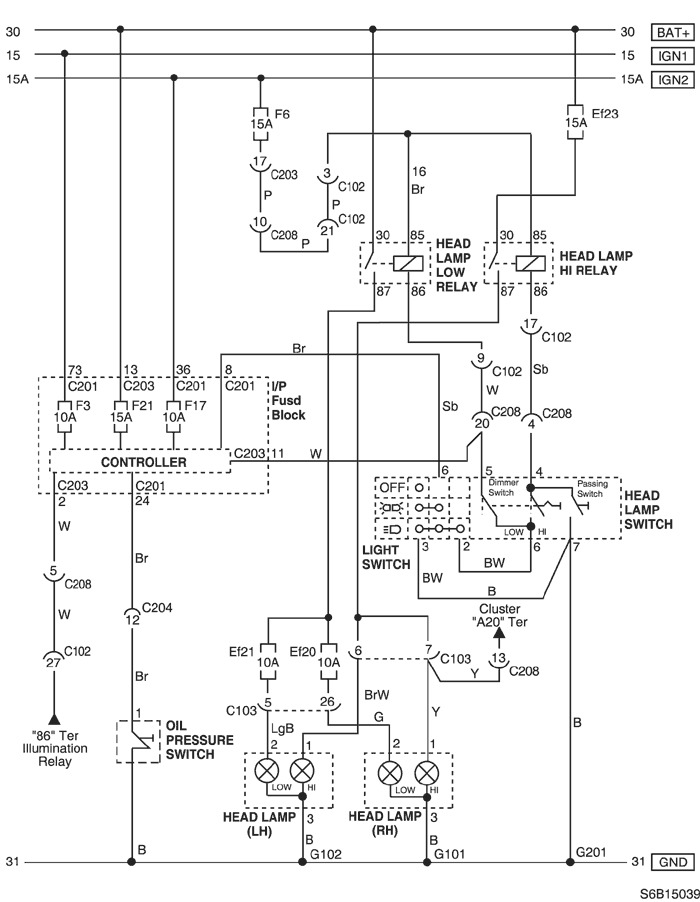

9. HEAD LAMP & HEAD LAMP LEVELING DEVICE (HLLD) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C207 (12 Pin, Gray) | Front - I.P | Below I.P Fuse Block |
| C208 (20 Pin, Yellow) | Front - I.P | Front TCM |
| S202 | I.P | Behind Left Tie Bar |
| G101 | Front | Behind Right Headlamp |
| G102 | Front | Behind Left Headlamp |
| G201 | I.P | Upper Mirror Control Switch |

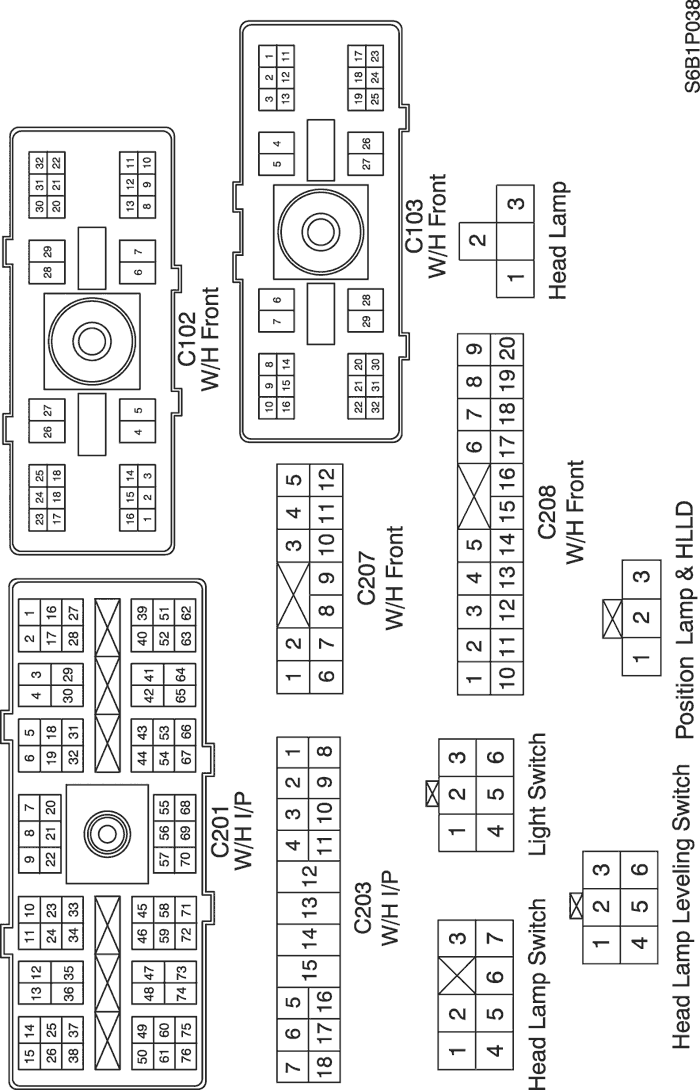

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
