SECTION 3

WIRING DIAGRAM FOR POWER SUPPLIES

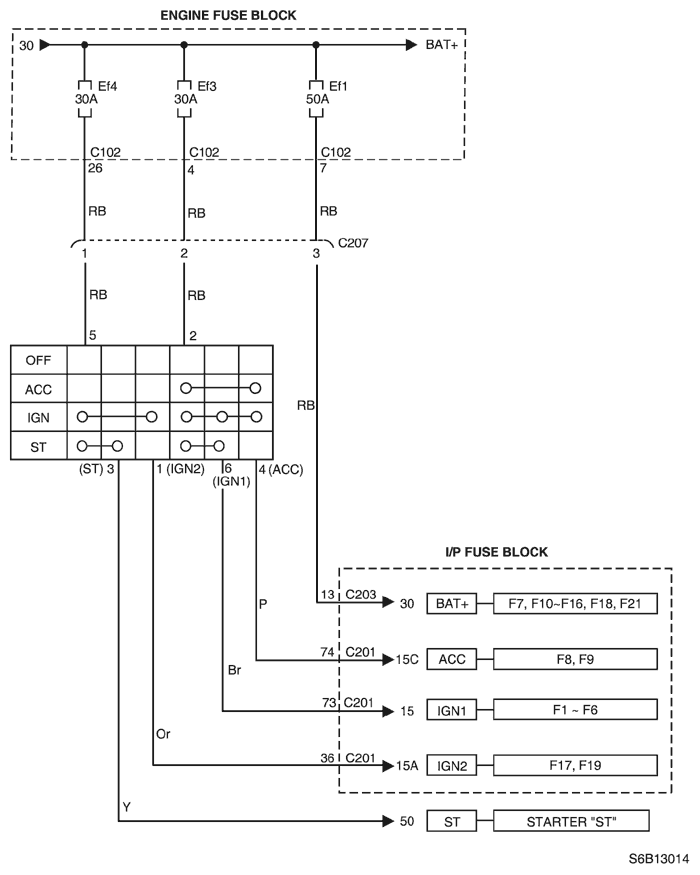

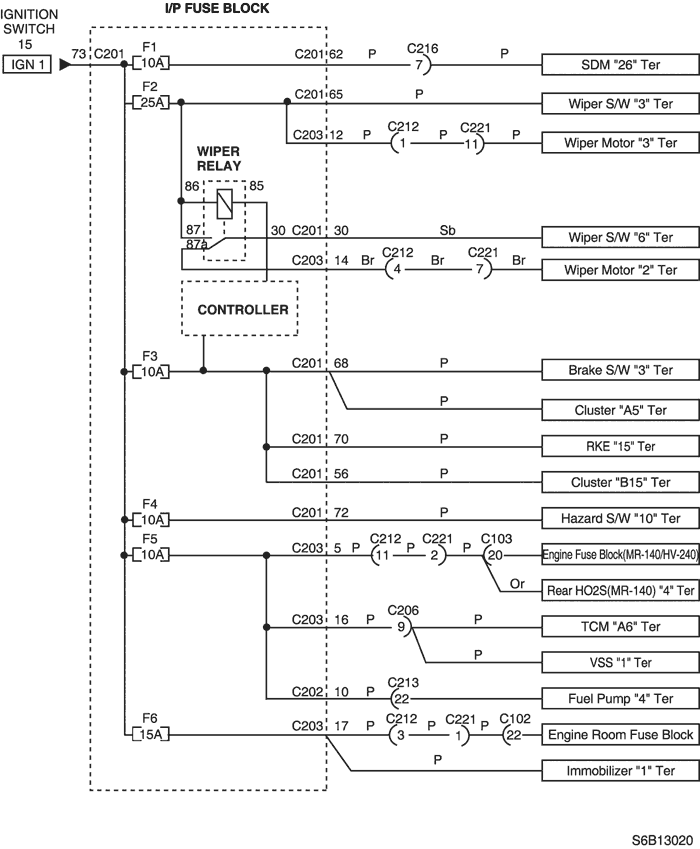

1. IGNITION SWITCH CIRCUIT

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

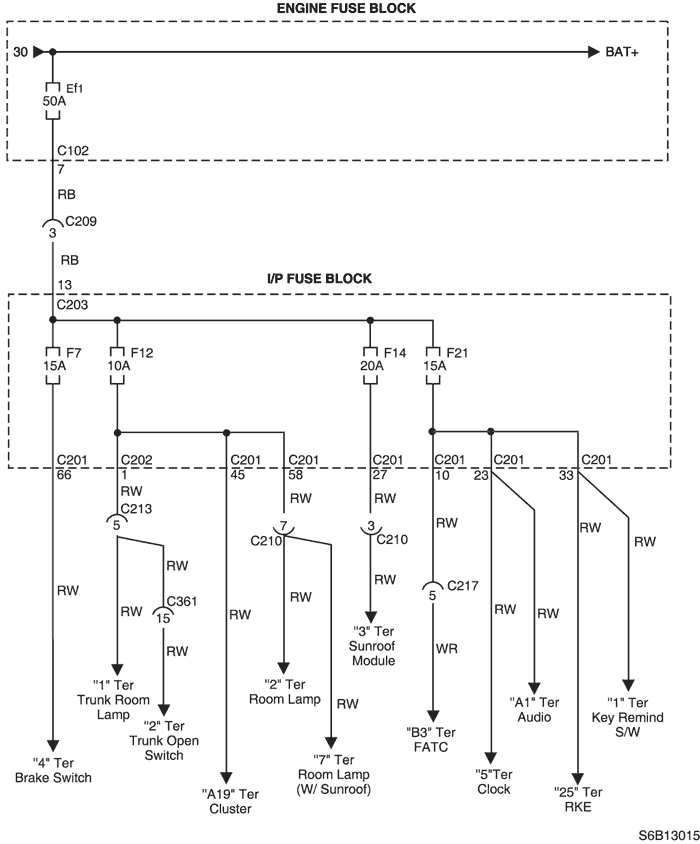

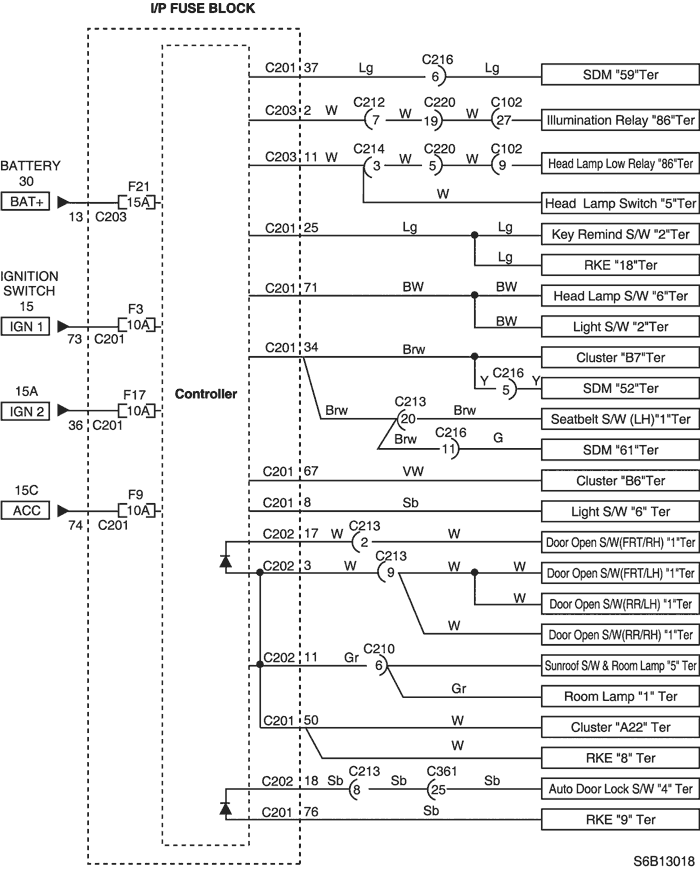

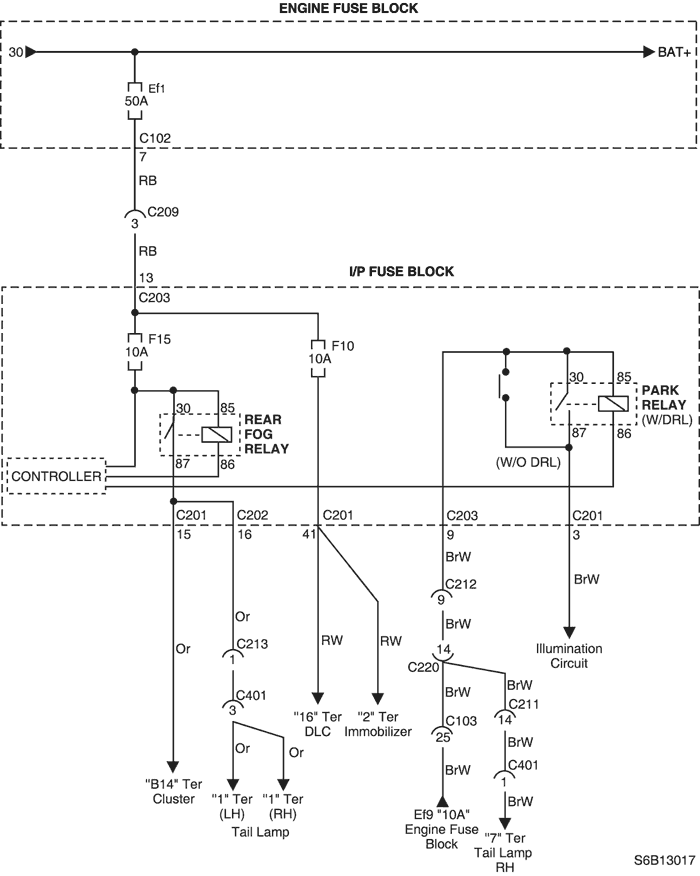

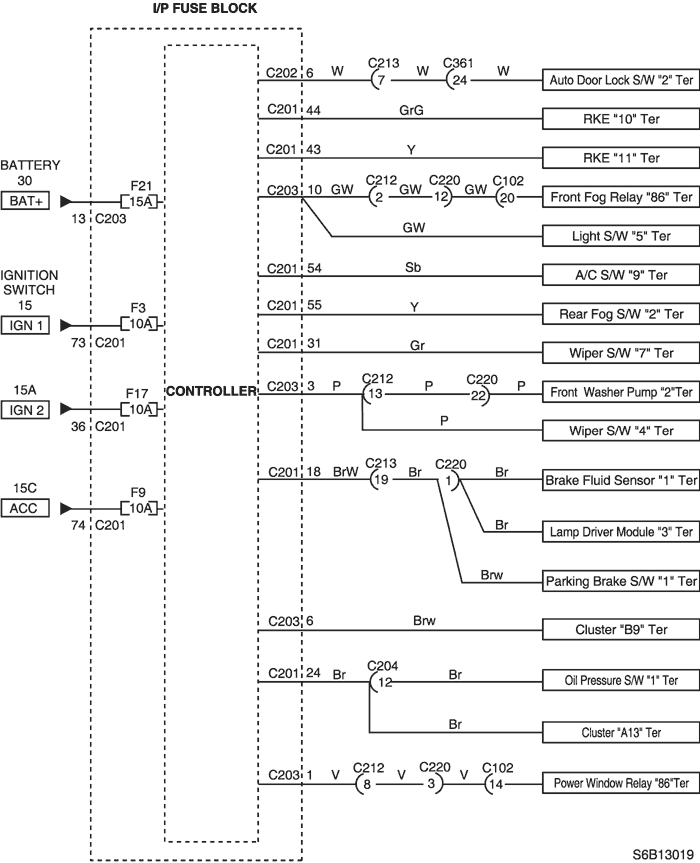

2. CONTROLLER CIRCUIT (I/P FUSE BLOCK)

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

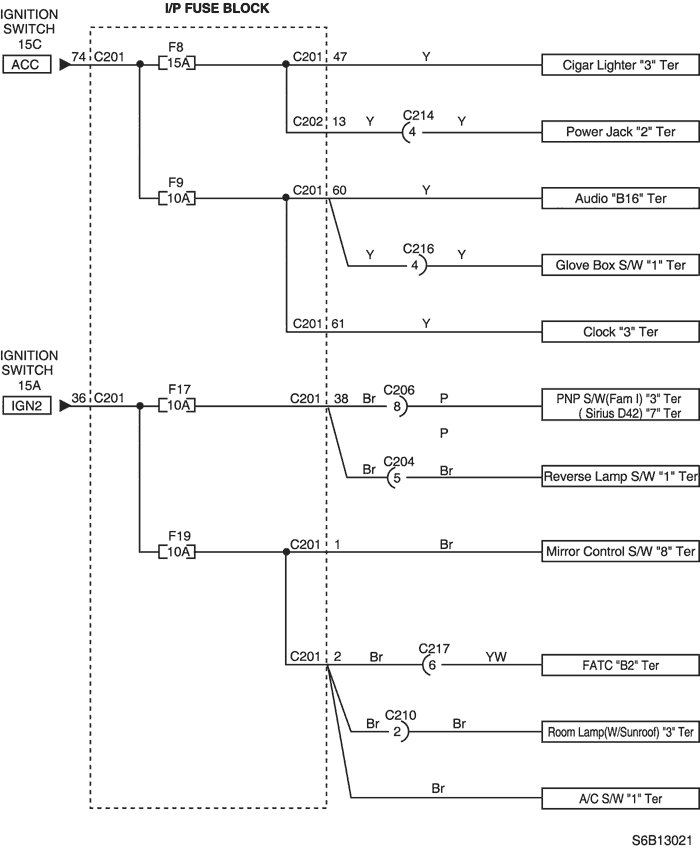

3. 15 TER "IGN1", 15C "ACC", 15A "IGN2" POWER SUPPLY CIRCUIT (I/P FUSE BLOCK)

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

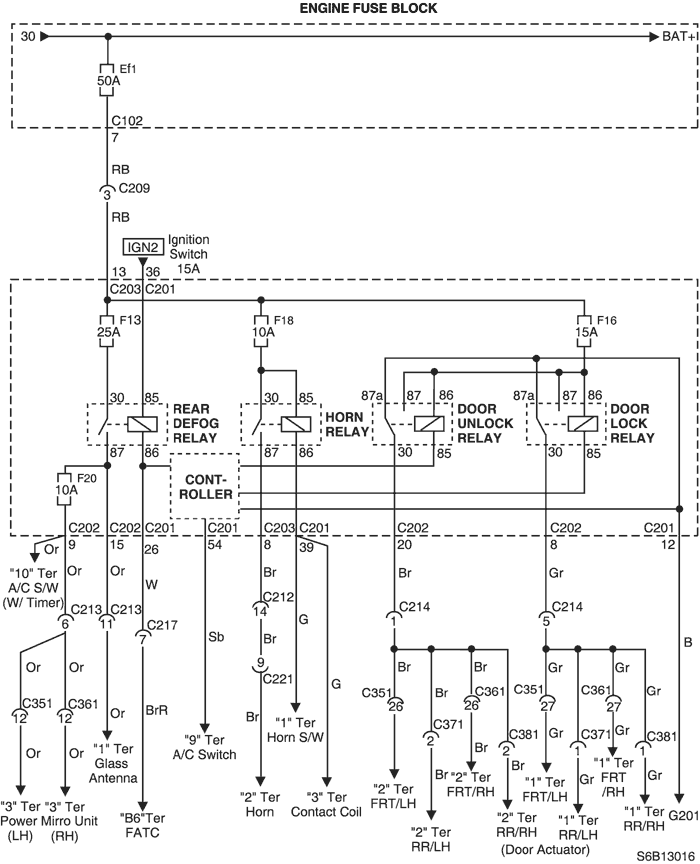

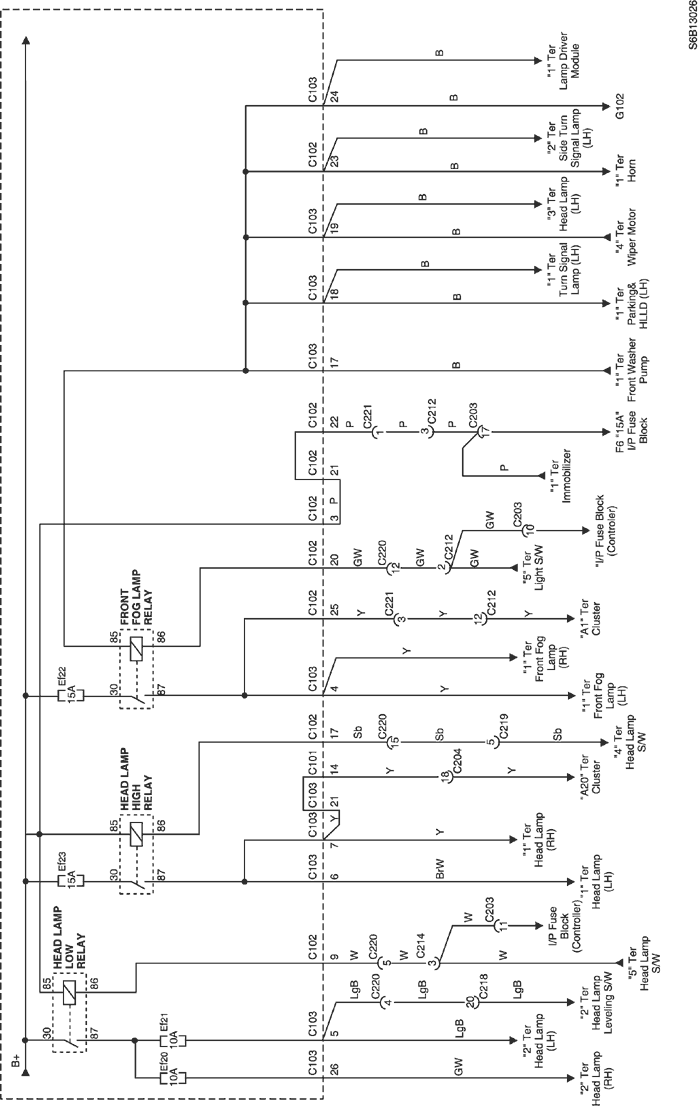

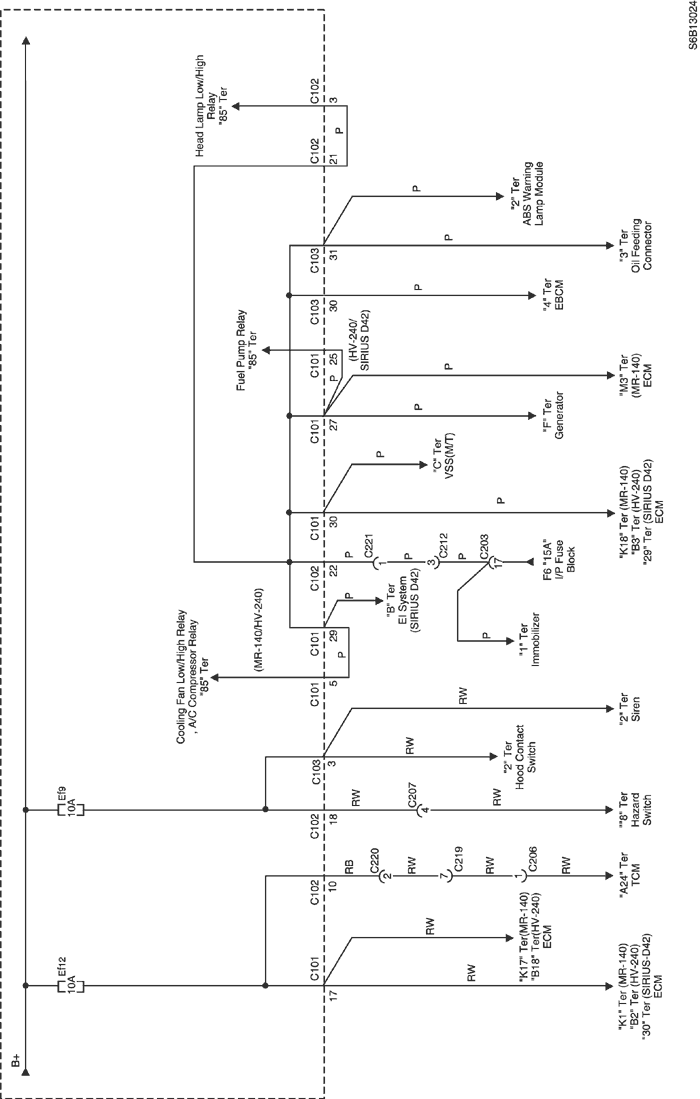

4. ENGINE FUSE BLOCK & RELAY CIRCUIT

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
