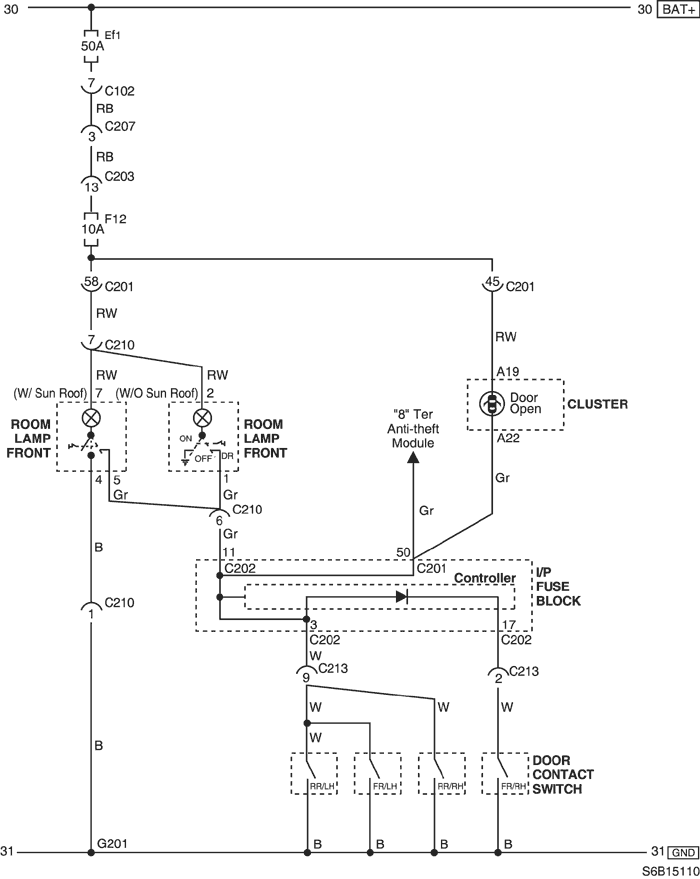

15. LAMPS (ROOM, DOOR OPENING WARNING) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C207 (4 Pin, Black) | Front - I.P | Below I.P Fuse Block |
| C210 (10 Pin, White) | Roof - I.P | Under Left A Pillar |
| C213 (22 Pin, Yellow) | I.P - Floor | Below I.P Fuse Block |
| G201 | I.P | Upper Mirror Control Switch |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
