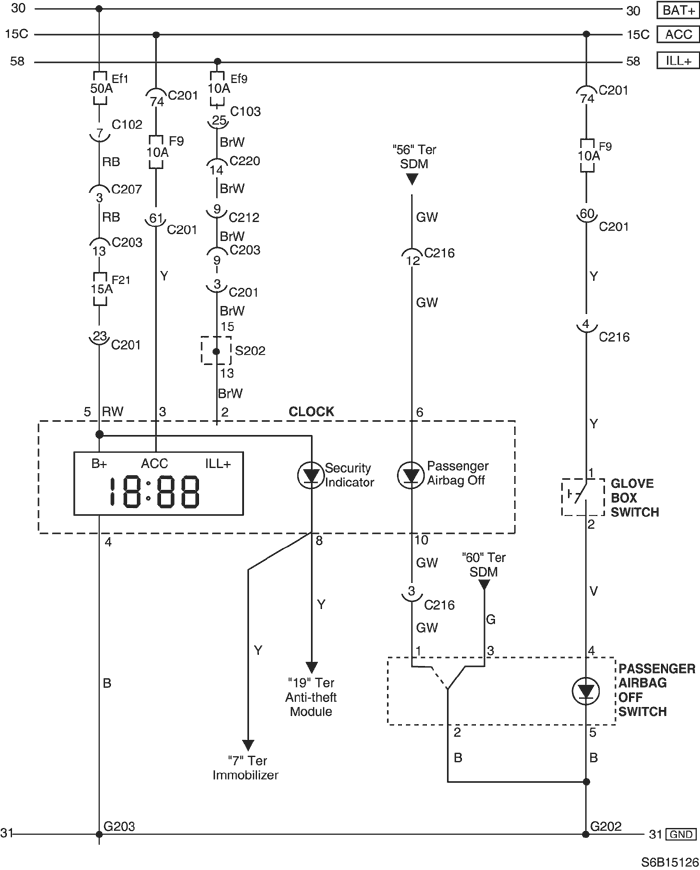

23. CLOCK

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C207 (4 Pin, Black)Front - I.PBelow I.P Fuse Block
C212 (15 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C216 (12 Pin, White)Air Bag - I.PBehind Airconditioner
C220 (22 Pin, Black)Front - FloorUnder Left A Pillar
S202I.PBehind I.P Fuse Block
G202Air BagUpper Mirror Control Switch
G203I.PBelow Ashtray

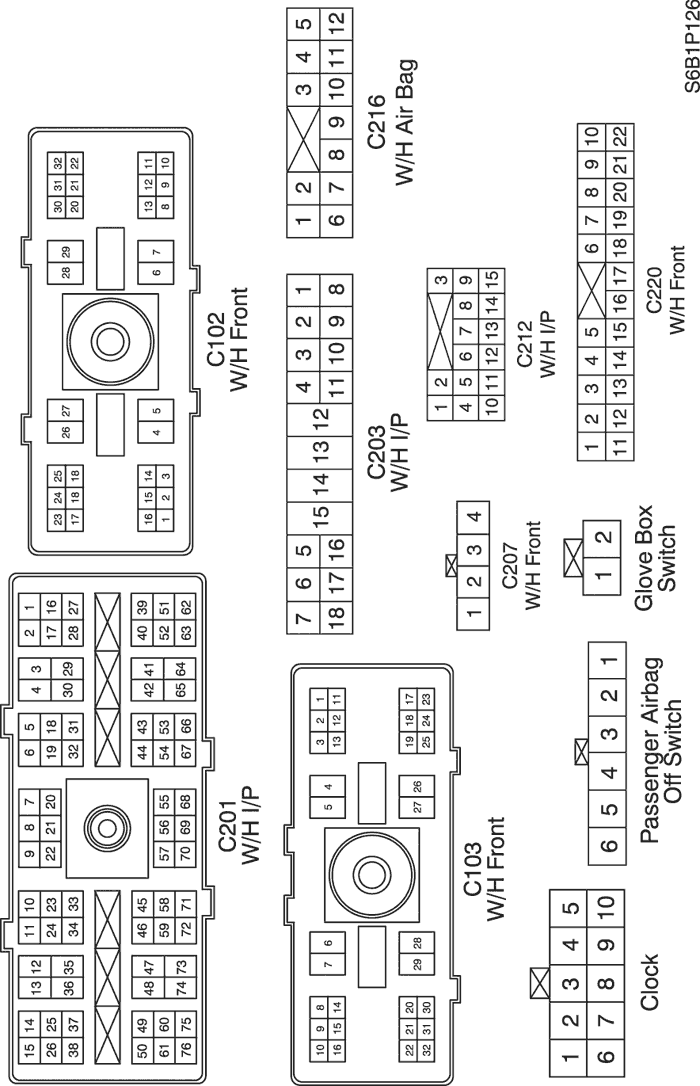

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics

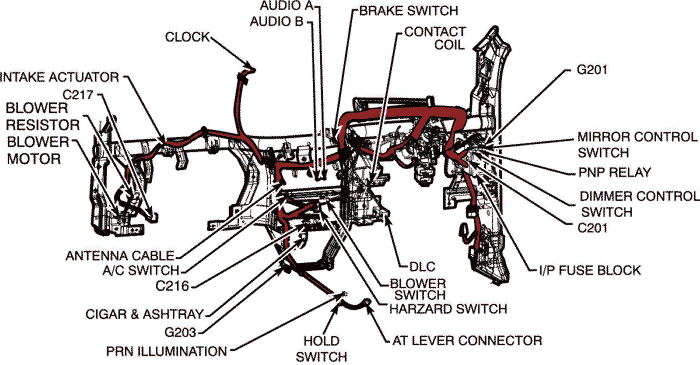

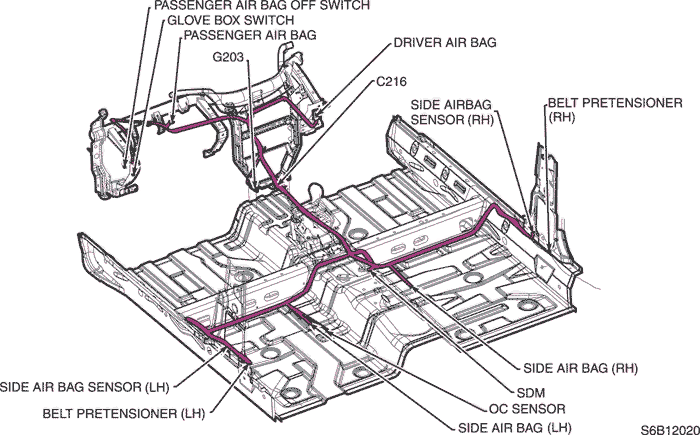

c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

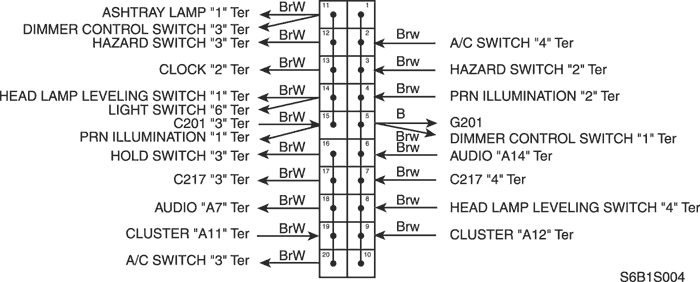

d. SPLICE PACK

S202

Display graphicTranslations of text in graphics
