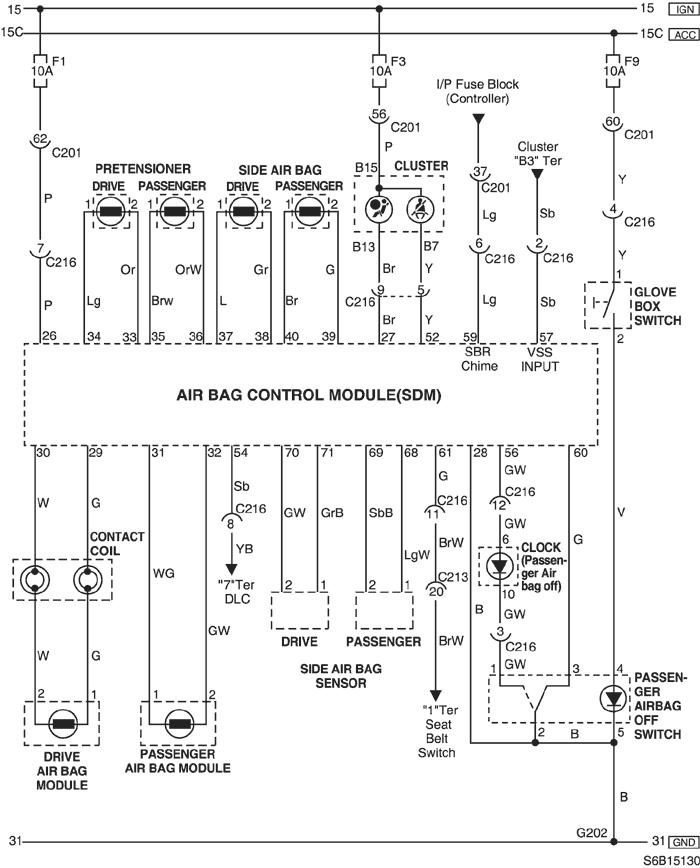

26. AIR BAG (SDM : SENSING & DIAGNOSTIC MODULE)

Display graphic

Translations of text in graphics

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
C201 (76 Pin, Black)	I.P - I.P Fuse Block	I.P Fuse Block
C213 (22 Pin, Yellow)	I.P - Floor	Below I.P Fuse Block
C216 (12 Pin, White)	Air Bag - I.P	Behind Airconditioner
G202	Air Bag	Upper Mirror Control Switch

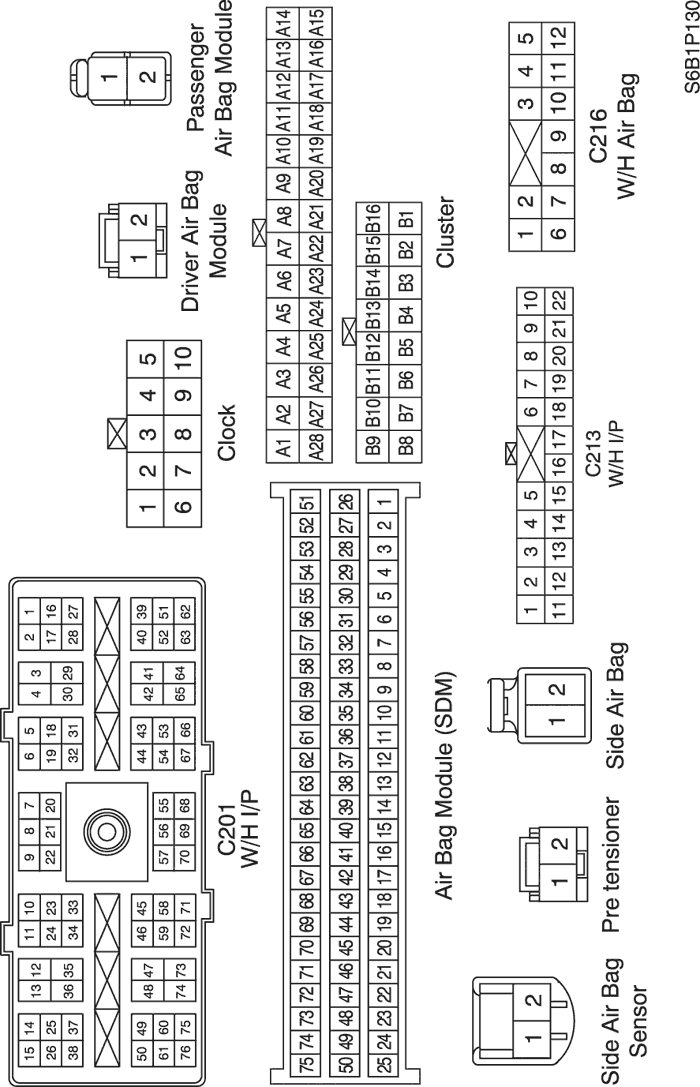

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphic

Translations of text in graphics

c. POSITION OF CONNECTORS AND GROUNDS

W/H AIR BAG

Display graphic

Translations of text in graphics

W/H I/P

Display graphic

Translations of text in graphics
