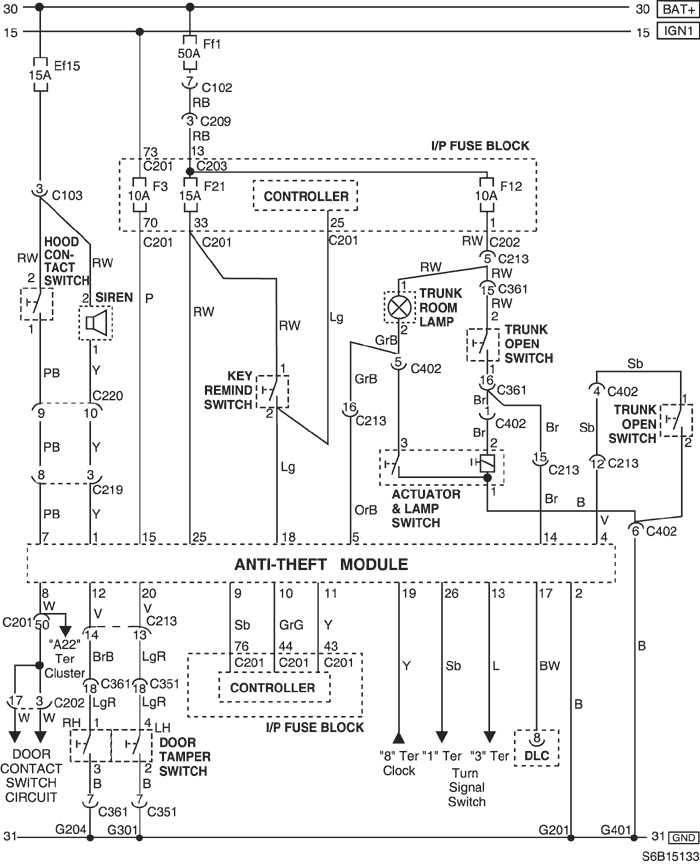

29. ANTI-THEFT CONTROL SYSTEM CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C202 (20 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C213 (22 Pin, Yellow) | I.P - Floor | Below I.P Fuse Block |
| C219 (8 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C220 (22 Pin, Black) | Front - Floor | Under Left A Pillar |
| C351 (29 Pin, White) | Floor - Front Left Door | Under Left A Pillar |
| C361 (29 Pin, White) | Floor - Front Right Door | Under Right A Pillar |
| C402 (6 Pin, White) | Trunk Lid - Floor | Below Back Shelf Panel |
| G201 | I.P | Upper Mirror Control Switch |
| G204 | Floor | Under Right A Pillar |
| G301 | Floor | Under Right Seat Cushion |
| G401 | Floor | Upper Back Shelf Panel |

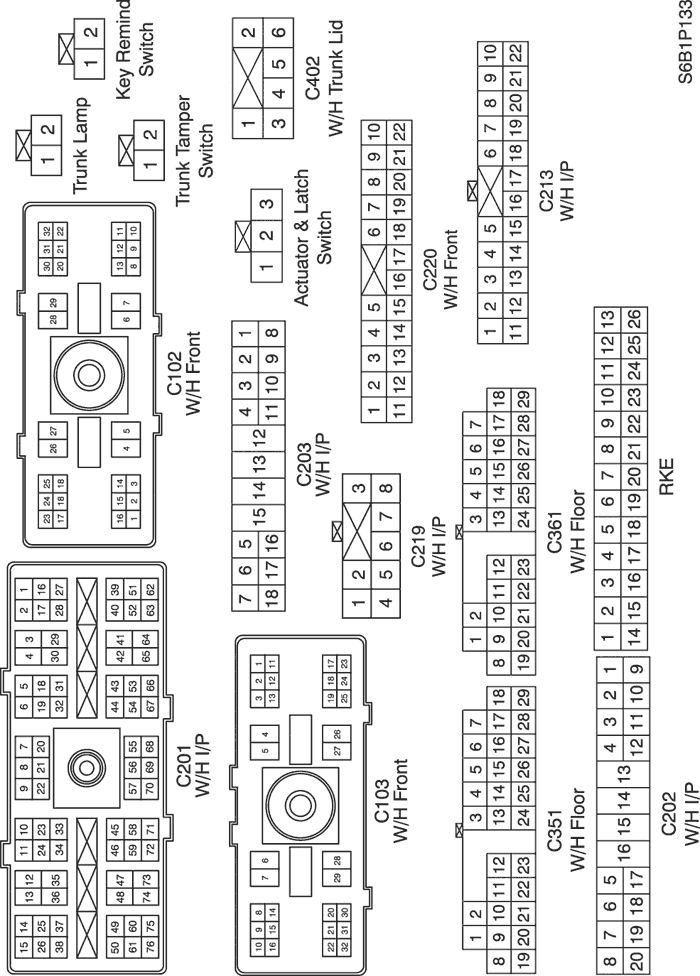

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
