SECTION 2C

SUSPENSION (FRONT SUSPENSION)

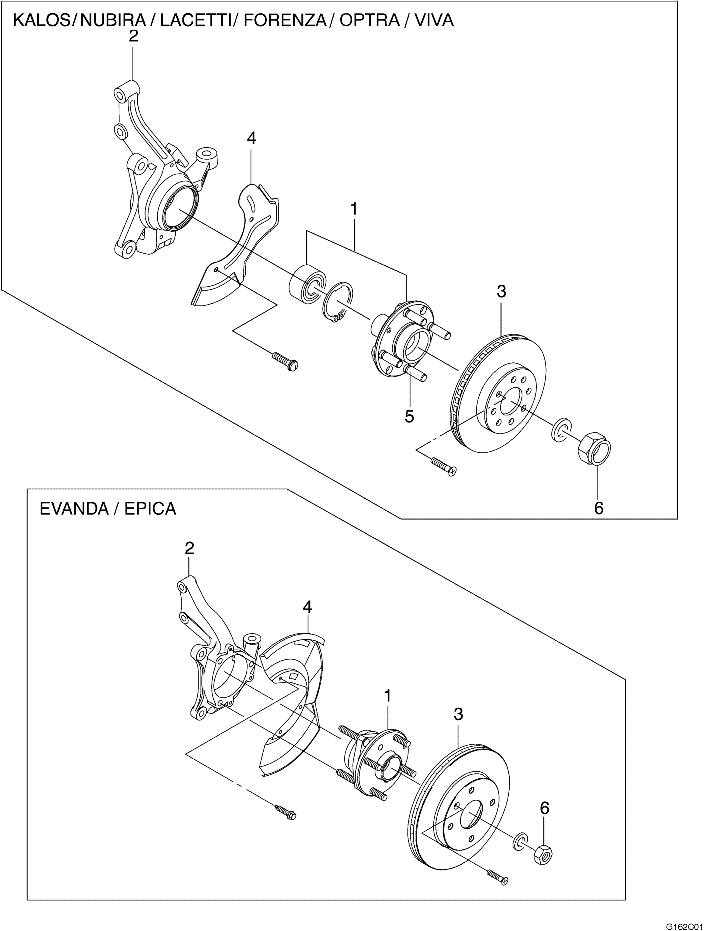

G162C01
Display graphicTranslations of text in graphics


FRONT SUSPENSION - KNUCKLE & HUB (213)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
.
. TOE, FRONT - ADJUST.
2130100
0.6
0.6
0.6
0.6
0.6
.
. WHEEL ALIGNMENT - CHECK AND/OR ADJUST.
2130300
1.0
1.0
1.0
1.0
1.0
1
. BEARING AND HUB ASSEMBLY, FRONT WHEEL - REPLACE
.
.
.
.
.
.
Right
2130500
1.3
1.3
1.3
1.0
1.0
Left
2130600
1.3
1.3
1.3
1.0
1.0
Both
2130700
2.4
2.4
2.4
1.8
1.8
. RUNOUT, BRAKE DISC - MEASURE
2131900
0.3
0.3
0.3
0.3
0.3
. RUNOUT, BRAKE DISC - ADDITIONAL
213190A
0.3
0.3
0.3
0.3
0.3
2
. KNUCKLE ASSEMBLY, STEERING - REPLACE
.
.
.
.
.
.
Right
2131100
1.3
1.3
1.3
1.0
1.0
Left
2131200
1.3
1.3
1.3
1.0
1.0
Both
2131300
2.4
2.4
2.4
1.8
1.8
3
. ROTOR ASSEMBLY - REPLACE
.
.
.
.
.
.
Right Front
2131500
0.6
0.6
0.6
0.6
0.6
Left Front
2131600
0.6
0.6
0.6
0.6
0.6
Both Front
2131700
0.8
0.8
0.8
0.8
0.6
. ROTOR ASSEMBLY - GRINDING
.
.
.
.
.
.
Right Front
2131510
0.8
0.8
0.8
0.8
0.8
Left Front
2131610
0.8
0.8
0.8
0.8
0.8
Both Front
2131710
1.4
1.4
1.4
1.4
1.4
4
. SHIELD, DISC BRAKE SPLASH - REPLACE
.
.
.
.
.
.
Right Front
2132100
0.6
0.6
0.6
0.6
0.6
Left Front
2132200
0.6
0.6
0.6
0.6
0.6
Both Front
2132300
0.9
0.9
0.9
0.9
0.9
5
. STUD, FRONT - REPLACE
.
.
.
.
.
.
Right
2132500
—
—
—
—
—
Left
2132600
—
—
—
—
—
Both
2132700
—
—
—
—
—
6
. NUT, DRIVE SHAFT - REPLACE
.
.
.
.
.
.
Right
2134100
0.3
0.3
0.3
0.3
0.3
Left
2134200
0.3
0.3
0.3
0.3
0.3
Both
2134300
0.4
0.4
0.4
0.4
0.4
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

G162C01
Display graphicTranslations of text in graphics


FRONT SUSPENSION - KNUCKLE & HUB (213)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
7
. NUT, DRIVE SHAFT - REPLACE
.
.
.
.
.
.
Right
2134100
0.3
0.3
0.3
0.3
0.3
Left
2134200
0.3
0.3
0.3
0.3
0.3
Both
2134300
0.4
0.4
0.4
0.4
0.4
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

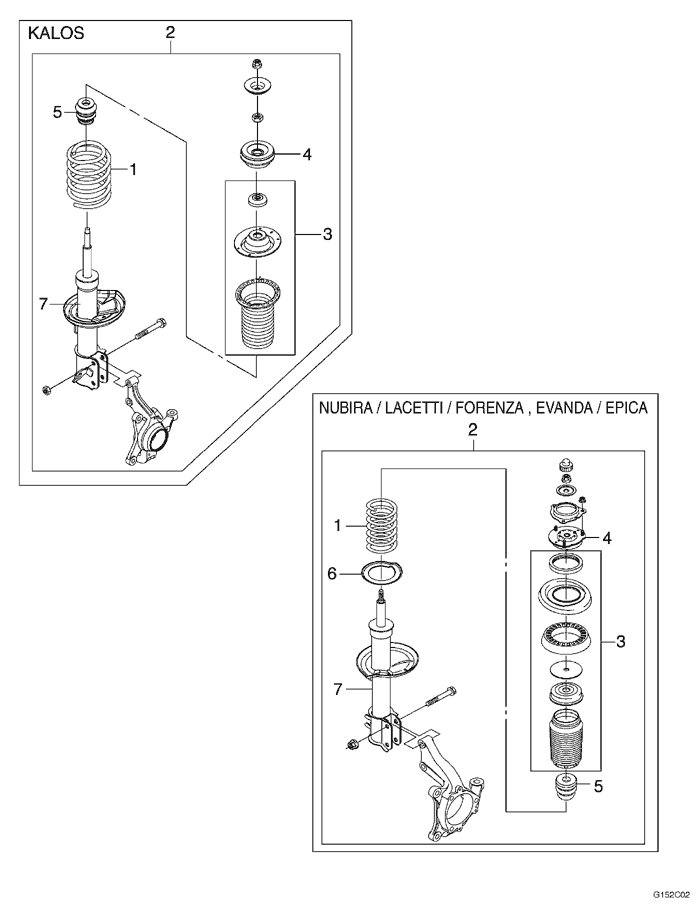

G152C02
Display graphicTranslations of text in graphics


FRONT SUSPENSION - FRONT SHOCK ABSORBER (214)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. SPRING, FRONT COIL - REPLACE
.
.
.
.
.
.
Right
2140100
1.6
1.6
1.2
1.2
1.2
Left
2140200
1.6
1.6
1.2
1.2
1.2
Both
2140300
3.0
3.0
2.2
2.2
2.2
2
. STRUT ASSEMBLY, FRONT - REPLACE
.
.
.
.
.
.
Right
2140900
1.3
1.3
0.6
0.6
0.6
Left
2141100
1.3
1.3
0.6
0.6
0.6
Both
2141200
1.9
1.9
1.0
1.0
1.0
3
. SEAT AND/OR INSULATOR, FRONT SPRING (UPPER/LOWER) - REPLACE
.
.
.
.
.
.
Right
2141500
1.6
1.6
1.0
1.0
1.0
Left
2141600
1.6
1.6
1.0
1.0
1.0
Both
2141700
2.9
2.9
1.8
1.8
1.8
4
. MOUNT ASSEMBLY, FRONT STRUT BEARING - REPLACE
.
.
.
.
.
.
Right
2141900
1.4
1.4
1.0
1.0
1.0
Left
2142100
1.4
1.4
1.0
1.0
1.0
Both
2142200
2.6
2.6
1.8
1.8
1.8
5
. HOLLOW BUMPER - REPLACE
.
.
.
.
.
.
Right
2142400
1.6
1.6
1.2
1.2
1.2
Left
2142500
1.6
1.6
1.2
1.2
1.2
Both
2142600
3.0
3.0
2.2
2.2
2.2
6
. RING, SPRING LOWER INSULATION - REPLACE
.
.
.
.
.
.
Right
2142700
—
—
1.2
1.2
1.2
Left
2142800
—
—
1.2
1.2
1.2
Both
2142900
—
—
2.2
2.2
2.2
7
. SHOCK ABSORBER ? REPLACE
.
.
.
.
.
.
Right
2143100
1.2
1.2
1.2
1.2
1.2
Left
2143200
1.2
1.2
1.2
1.2
1.2
Both
2143300
2.2
2.2
2.2
2.2
2.2
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

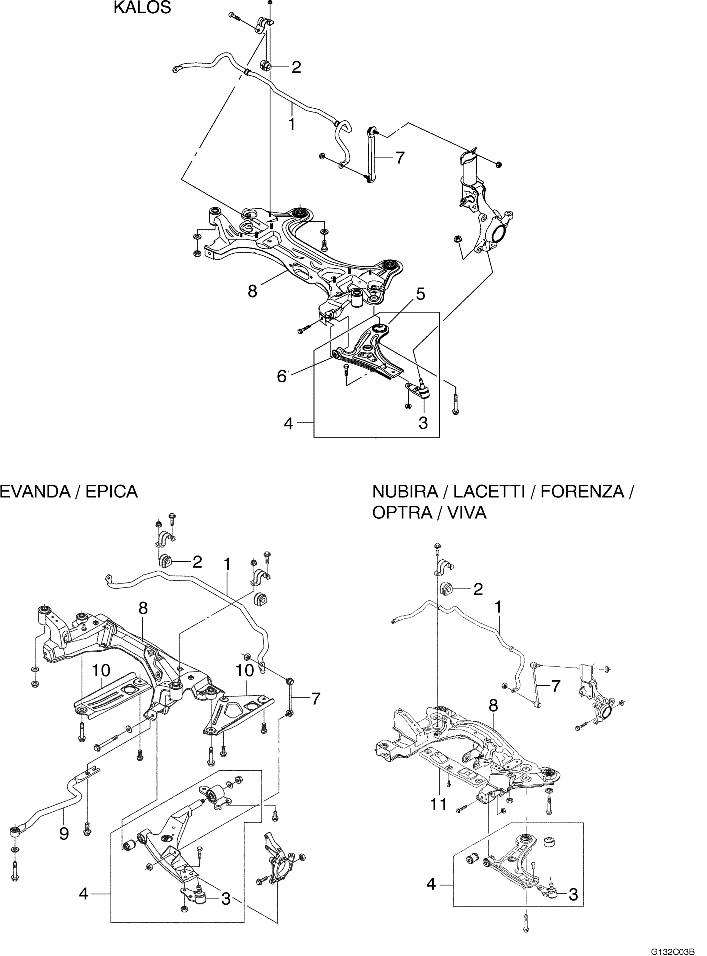

G132C03B
Display graphicTranslations of text in graphics


FRONT SUSPENSION - CONTROL ARM (215)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. STABILIZER, FRONT - REPLACE
2150500
1.7
1.7
1.7
1.6
1.6
2
. BUSHING, FRONT STABILIZER - REPLACE
2150700
0.9
0.9
0.9
1.0
1.0
3
. BALL JOINT, CONTROL ARM - REPLACE
.
.
.
.
.
.
Right
2150900
0.5
0.5
0.5
0.5
0.5
Left
2151100
0.5
0.5
0.5
0.5
0.5
Both
2151200
0.8
0.8
0.8
0.8
0.8
4
. ARM ASSEMBLY, FRONT CONTROL - REPLACE
.
.
.
.
.
.
Right
2151500
0.8
0.8
0.8
0.6
0.6
Left
2151600
0.8
0.8
0.8
0.6
0.6
Both
2151700
1.4
1.4
1.4
1.0
1.0
5
. BUSH REAR, FRONT CONTROL ARM - REPLACE
.
.
.
.
.
.
Right
2151900
0.9
0.9
0.9
0.6
0.6
Left
2152100
0.9
0.9
0.9
0.6
0.6
Both
2152200
1.6
1.6
1.6
1.0
1.0
6
. BUSH FRONT, CONTROL ARM - REPLACE
.
.
.
.
.
.
Right
2152400
0.9
0.9
0.9
0.7
0.7
Left
2152500
0.9
0.9
0.9
0.7
0.7
Both
2152600
1.6
1.6
1.6
1.2
1.2
7
. LINK, FRONT STABILIZER - REPLACE
.
.
.
.
.
.
Right
2152700
0.3
0.3
0.3
0.3
0.3
Left
2152800
0.3
0.3
0.3
0.3
0.3
Both
2152900
0.5
0.5
0.5
0.5
0.5
8
. CROSSMEMBER, FRONT SUSPENSION - REPLACE
2153100
1.6
1.6
1.5
1.5
1.5
9
. BEAM A-IMPACT, FRT, SUSP - REPLACE
.
.
.
.
.
.
Right
2154100
—
—
—
0.4
0.4
Left
2154200
—
—
—
0.4
0.4
Both
2154300
—
—
—
0.5
0.5
10
. BRACKET-FRT, SUB FRAME - REPLACE
.
.
.
.
.
.
Right
2154400
—
—
—
—
0.3
Left
2154500
—
—
—
—
0.3
Both
2154600
—
—
—
—
0.4
11
. BRACKET-C/MBR, LWR - REPLACE
2154700
—
—
0.3
—
—
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA
