Labor Time Guide2005 SUSPENSION (REAR SUSPENSION)

SECTION 2D

SUSPENSION (REAR SUSPENSION)

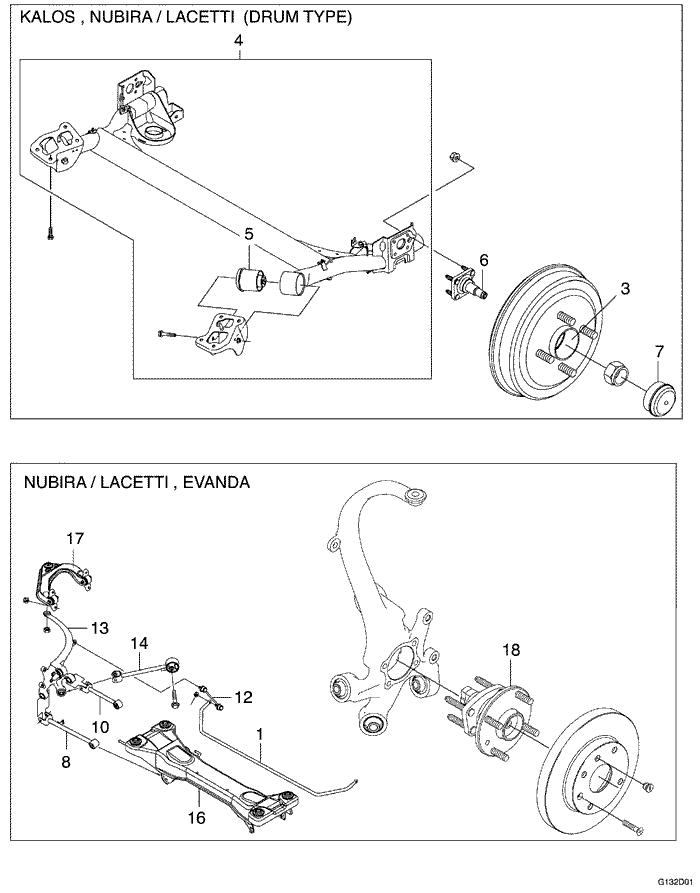

REAR SUSPENSION – REAR AXLE (231)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
1	. STABILIZER, REAR - REPLACE	2310100	—	0.4	0.4
2	. DAMPER, STABILIZER - REPLACE	2310300	—	—	—
3	. BEARING, REAR WHEEL - REPLACE	.	.	.	.
	Right	2310500	0.7	—	—
	Left	2310600	0.7	—	—
	Both	2310700	1.2	—	—
4	. AXLE ASSEMBLY, REAR - BALANCE	2310900	2.3	—	—
6	. SPINDLE, WHEEL BEARING - REPLACE	.	.	.	.
	Right	2311500	0.6	—	—
	Left	2311600	0.6	—	—
	Both	2311700	1.1	—	—
7	. CAP, HUB - REPLACE	.	.	.	.
	Right	2312100	0.2	—	—
	Left	2312200	0.2	—	—
	Both	2312300	0.3	—	—
8	. LINK, FRONT PARALLEL - REPLACE	.	.	.	.
	Right	2312500	—	0.4	0.4
	Left	2312600	—	0.4	0.4
	Both	2312700	—	0.6	0.6
9	. BUSH, SUSPENSION LINK - REPLACE	.	.	.	.
	Right	2313100	—	—	—
	Left	2313200	—	—	—
	Both	2313300	—	—	—

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA

REAR SUSPENSION – REAR AXLE (231)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
10	. LINK, REAR PARALLEL - REPLACE	.	.	.	.
	Right	2313400	—	0.4	0.4
	Left	2313500	—	0.4	0.4
	Both	2313600	—	0.6	0.6
11	. BUSH, TOE ADJUST LINK - REPLACE	.	.	.	.
	Right	2313700	—	—	—
	Left	2313800	—	—	—
	Both	2313900	—	—	—
12	. LINK, REAR STABILIZER - REPLACE	.	.	.	.
	Right	2314100	—	0.3	0.3
	Left	2314200	—	0.3	0.3
	Both	2314300	—	0.4	0.4
13	. KNUCKLE, REAR (DRUM) - REPLACE	.	.	.	.
	Right (Non ABS)	2314400	—	1.3	—
	Left (Non ABS)	2314500	—	1.3	—
	Both (Non ABS)	2314600	—	2.0	—
	Right (ABS)	2314700	—	1.1	—
	Left (ABS)	2314800	—	1.1	—
	Both (ABS)	2314900	—	1.7	—
	. KNUCKLE, REAR (DISC) - REPLACE	.	.	.	.
	Right	2315100	—	0.8	0.8
	Left	2315200	—	0.8	0.8
	Both	2315300	—	1.4	1.4
14	. LINK, REAR TRAILING - REPLACE	.	.	.	.
	Right	2315400	—	0.3	0.3
	Left	2315500	—	0.3	0.3
	Both	2315600	—	0.4	0.5
15	. BRACKET, TRAILING LINK - REPLACE	.	.	.	.
	Right	2315700	—	—	—
	Left	2315800	—	—	—
	Both	2315900	—	—	—

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA

REAR SUSPENSION – REAR AXLE (231)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
16	. CROSSMEMBER, REAR SUSPENSION - REPLACE	2316100	—	0.6	0.6
17	. ARM, UPPER - REPLACE	.	.	.	.
	Right	2318100	—	—	0.4
	Left	2318200	—	—	0.4
	Both	2318300	—	—	0.6
18	. BEARING AND HUB ASSEMBLY, REAR WHEEL - REPLACE	.	.	.	.
	Right	2318400	—	0.5	0.5
	Left	2318500	—	0.5	0.5
	Both	2318600	—	0.9	0.9

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA

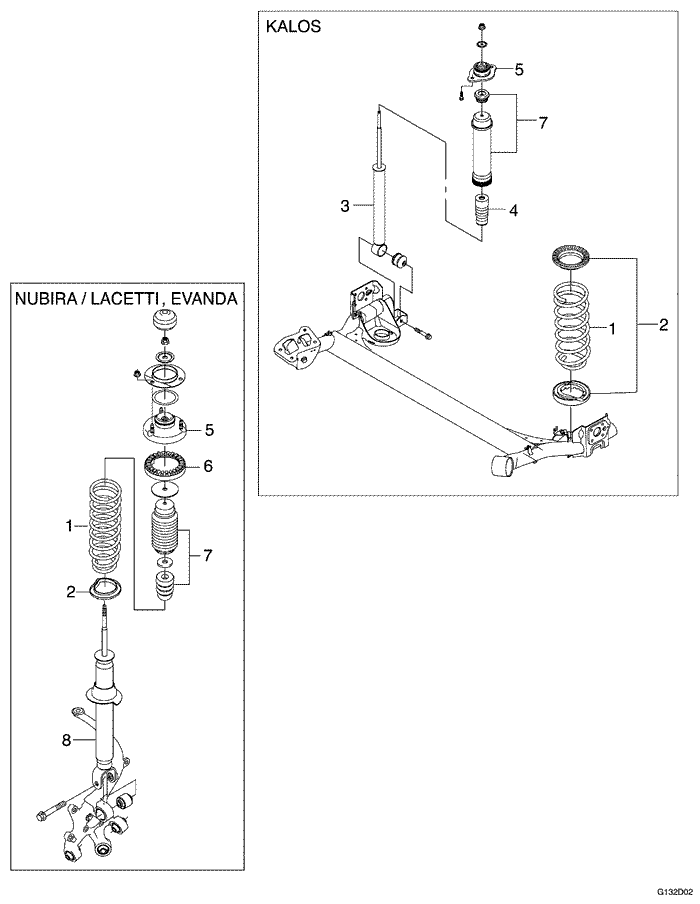

REAR SUSPENSION– REAR SHOCK ABSORBER (232)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
1	. SPRINGS, REAR COIL - REPLACE	.	.	.	.
	Right	2320100	0.7	1.0	1.0
	Left	2320300	0.7	1.0	1.0
	Both	2320400	0.8	1.6	1.6
2	. SEAT AND/OR INSULATOR, REAR SPRING (UPPER/LOWER) - REPLACE	.	.	.	.
	Right	2320700	0.7	1.0	1.0
	Left	2320800	0.7	1.0	1.0
	Both	2320900	0.8	1.6	1.6
3	. SHOCK ABSORBER, REAR - REPLACE	.	.	.	.
	Right	2321100	0.6	—	—
	Left	2321200	0.6	—	—
	Both	2321300	0.8	—	—
4	. BUMPER, SHOCK ABSORBER (UPPER/LOWER) - REPLACE	.	.	.	.
	Right	2321400	0.3	—	—
	Left	2321500	0.3	—	—
	Both	2321600	0.5	—	—
5	. STRUT MOUNT, REAR - REPLACE	.	.	.	.
	Right	2321700	0.7	0.9	0.9
	Left	2321800	0.7	0.9	0.9
	Both	2321900	1.2	1.4	1.4
6	. SEAT, REAR UPPER SPRING - REPLACE	.	.	.	.
	Right	2322100	—	0.9	0.9
	Left	2322200	—	0.9	0.9
	Both	2322300	—	1.4	1.4
7	. DUST COVER &/OR HOLLOW BUMPER - REPLACE	.	.	.	.
	Right	2322400	0.7	1.0	1.0
	Left	2322500	0.7	1.0	1.0
	Both	2322600	1.2	1.6	1.6
8	. DAMPER, SHOCK ABSORBER STRUT - REPLACE	.	.	.	.
	Right	2322700	—	1.0	1.0
	Left	2322800	—	1.0	1.0
	Both	2322900	—	1.6	1.6

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA
