SECTION 2E

SUSPENSION (TIRES & WHEEL)

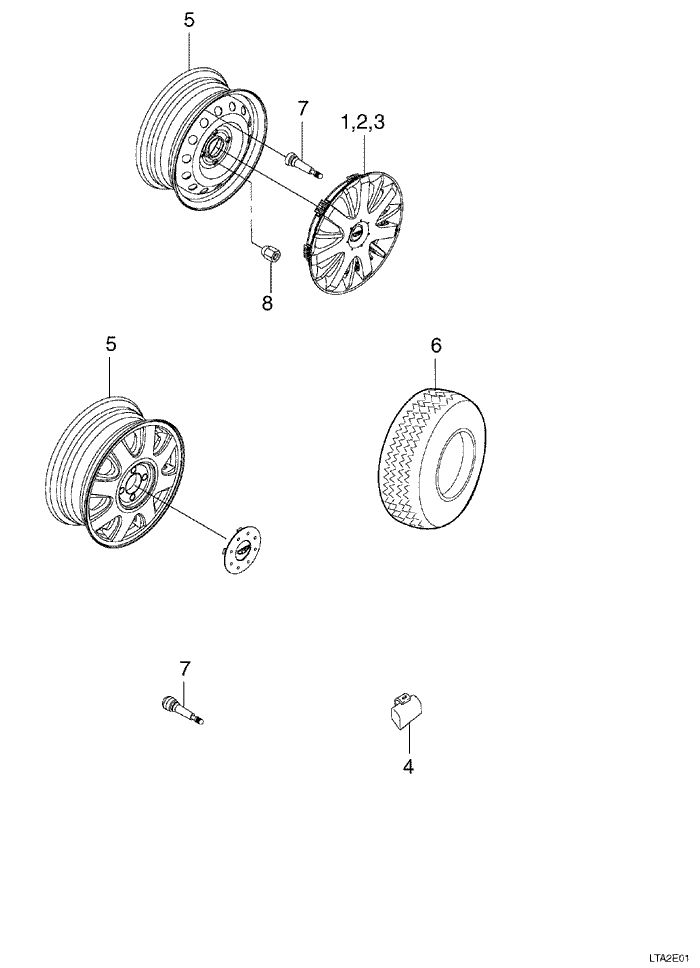

LTA2E01
Display graphicTranslations of text in graphics


TIRES & WHEEL - WHEELS & WHEEL COVER (241)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. COVER, WHEEL (FRONT) - REPLACE
2410100
0.2
0.2
0.2
0.2
0.2
2
. COVER, WHEEL (RR) - REPLACE
2410300
0.2
0.2
0.2
0.2
0.2
3
. COVER, WHEEL (ALL) - REPLACE
2410500
0.2
0.2
0.2
0.2
0.2
4
. WHEEL - BALANCE
.
.
.
.
.
.
One
2410700
0.4
0.4
0.4
0.4
0.4
Two
2410800
0.7
0.7
0.7
0.7
0.7
Four
2410900
1.2
1.2
1.2
1.2
1.2
5
. WHEEL - REPLACE
.
.
.
.
.
.
One
2411100
0.6
0.6
0.6
0.6
0.6
Two
2411110
1.0
1.0
1.0
1.0
1.0
Three
2411120
1.4
1.4
1.4
1.4
1.4
Four
2411130
1.8
1.8
1.8
1.8
1.8
6
. TIRE - REPLACE
.
.
.
.
.
.
One
2411300
0.6
0.6
0.6
0.6
0.6
Two
2411310
1.0
1.0
1.0
1.0
1.0
Three
2411320
1.4
1.4
1.4
1.4
1.4
Four
2411330
1.8
1.8
1.8
1.8
1.8
7
. STEM, VALVE - REPLACE
.
.
.
.
.
.
One
2411500
0.4
0.4
0.4
0.4
0.4
Two
2411510
0.6
0.6
0.6
0.6
0.6
Three
2411520
0.8
0.8
0.8
0.8
0.8
Four
2411530
1.0
1.0
1.0
1.0
1.0
8
. NUT, WHEEL - REPLACE
2411700
0.2
0.2
0.2
0.2
0.2
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L : EVANDA / EPICA

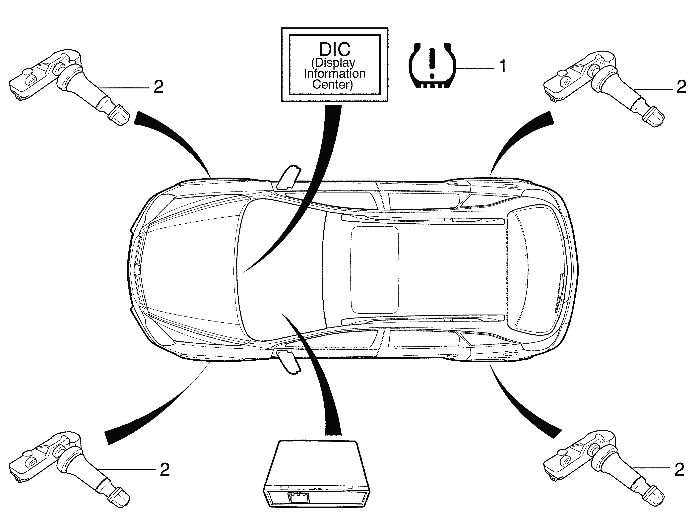

G162E03
Display graphicTranslations of text in graphics


TPMS - TIRE PRESSURE MONITORING SYSTEM (242)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. LIGH, LOW TIRE PRESSURE WARNING - DAGNOSIS TIME
2421000
0.2
0.2
0.2
0.2
—
2
. SENSOR, LOW TIRE PRESSURE WARNING SENSOR - REPLACE
.
.
.
.
.
.
INC : ID REGISTRATION
.
.
.
.
.
.
One
2421100
0.8
0.8
0.8
0.8
—
Two
2421110
1.2
1.2
1.2
1.2
—
Three
2421120
1.6
1.6
1.6
1.6
—
Four
2421130
2.0
2.0
2.0
2.0
—
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L : EVANDA / EPICA
