SECTION 4F

BRAKE (ANTI-LOCK BRAKES SYSTEM)

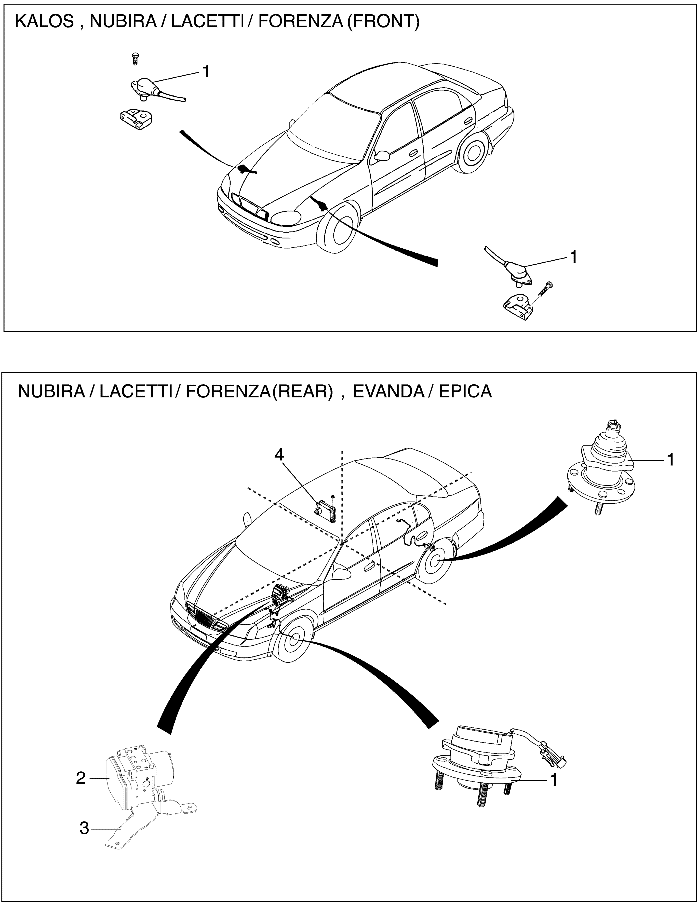

G164F01A
Display graphicTranslations of text in graphics


ANTI-LOCK BRAKES SYSTEM - ANTI-LOCK BRAKE SYSTEM (462)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. SENSOR, WHEEL SPEED - REPLACE
.
.
.
.
.
.
Right Front
4620100
0.3
0.3
0.3
0.5
0.5
Left Front
4620200
0.3
0.3
0.3
0.5
0.5
Both Front
4620300
0.4
0.4
0.4
0.9
0.9
Right Rear
4620400
0.3
0.3
0.5
0.5
0.5
Left Rear
4620500
0.3
0.3
0.5
0.5
0.5
Both Rear
4620600
0.4
0.4
0.9
0.9
0.9
2
. HYDRAULIC MODULATOR ASSEMBLY (ABS) - REPLACE
4620800
1.0
1.0
0.9
1.3
1.3
3
. BRACKET, MODULATOR - REPLACE
.
.
.
.
.
.
Upper
4622100
Lower
4622200
1.0
1.0
0.9
1.3
1.3
4
. SENSOR, YAW-RATE - REPLACE
4622300
0.2
. DIAGNOSTIC TIME - DTC RELATED DIAGNOSIS
1869900
0.2
0.2
0.2
0.2
0.2
S1 : T200(AVEO / KALOS / BARINA) , S2 : T250(AVEO) , N : NUBIRA / LACETTI / FORENZA / OPTRA / VIVA , L : EVANDA / EPICA
