Labor Time Guide2005 BRAKE (REAR BRAKES)

SECTION 4E

BRAKE (REAR BRAKES)

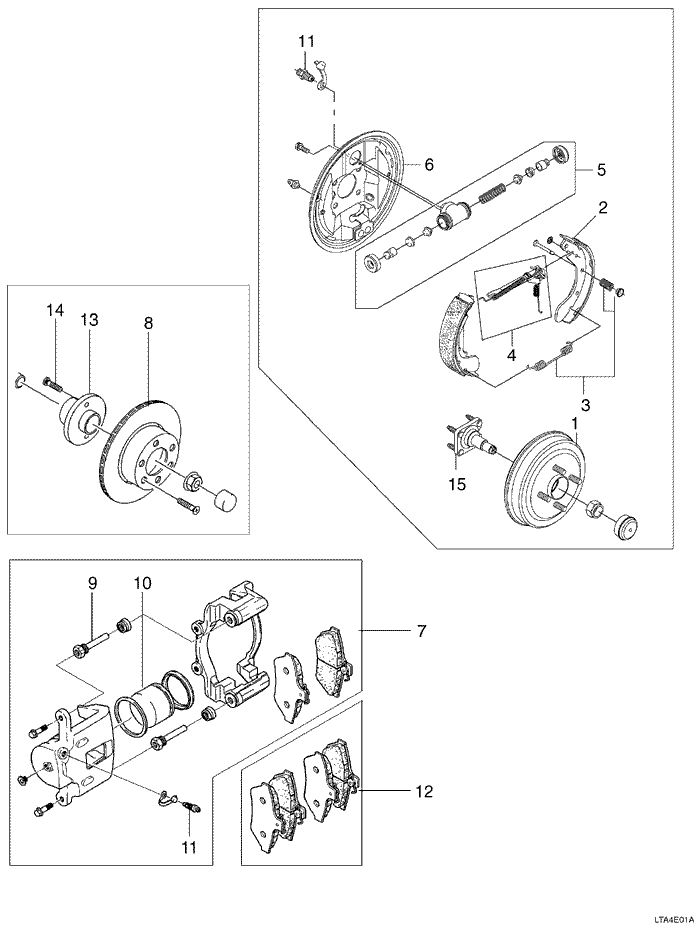

REAR BRAKES - REAR BRAKE (456)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
1	. DRUM, BRAKE - REPLACE (NON ABS)	.	.	.	.
	Right Rear	4560100	0.6	0.6	—
	Left Rear	4560200	0.6	0.6	—
	Both Rear	4560300	0.9	0.9	—
	. DRUM, BRAKE - MACHINING	.	.	.	.
	Right Rear	4560400	0.3	0.3	—
	Left Rear	4560410	0.3	0.3	—
	Both Rear	4560420	0.5	0.5	—
	. DRUM, BRAKE - REPLACE (ABS)	.	.	.	.
	Right Rear	4560500	0.4	0.4	—
	Left Rear	4560600	0.4	0.4	—
	Both Rear	4560700	0.6	0.6	—
2	. SHOES AND LININGS, DRUM BRAKE - REPLACE (NON ABS)	.	.	.	.
	Both Rear	4560900	1.2	1.2	—
	Right Rear	4560910	0.7	0.7	—
	Left Rear	4560920	0.7	0.7	—
	. SHOES AND LININGS, DRUM BRAKE - REPLACE (ABS)	.	.	.	.
	Both Rear	4561100	0.9	0.9	—
	Right Rear	4561110	0.6	0.6	—
	Left Rear	4561120	0.6	0.6	—
3	. SPRINGS, SHOE RETURN AND/OR HOLD DOWN - REPLACE (NON ABS)	.	.	.	.
	Right Rear	4561300	0.7	0.7	0.7
	Left Rear	4561400	0.7	0.7	0.7
	Both Rear	4561500	1.2	1.2	1.2
	. SPRINGS, SHOE RETURN AND/OR HOLD DOWN - REPLACE (ABS)	.	.	.	.
	Right Rear	4561700	0.6	0.6	—
	Left Rear	4561800	0.6	0.6	—
	Both Rear	4561900	0.8	0.8	—
4	. SELF ADJUSTER, BRAKE - REPLACE (NON ABS)	.	.	.	.
	Right Rear	4562100	0.6	0.6	0.6
	Left Rear	4562200	0.6	0.6	0.6
	Both Rear	4562300	1.2	1.2	1.2

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA

REAR BRAKES - REAR BRAKE (456)

NO.	. OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	. OPERATION DESCRIPTION	OPERATION CODE	S	N	L
.	. SELF ADJUSTER, BRAKE - REPLACE (ABS)	.	.	.	.
	Right Rear	4562500	0.5	0.5	—
	Left Rear	4562600	0.5	0.5	—
	Both Rear	4562700	0.8	0.8	—
5	. CYLINDER, BRAKE WHEEL - REPLACE (NON ABS)	.	.	.	.
	Right Rear	4562900	1.1	1.1	1.1
	Left Rear	4563100	1.1	1.1	1.1
	Both Rear	4563200	1.6	1.6	1.6
	. CYLINDER, BRAKE WHEEL - REPLACE (ABS)	.	.	.	.
	Right Rear	4563400	0.9	0.9	—
	Left Rear	4563500	0.9	0.9	—
	Both Rear	4563600	1.4	1.4	—
6	. PLATE, BRAKE BACKING - REPLACE	.	.	.	.
	Right Rear	4563800	1.0	1.0	1.0
	Left Rear	4563900	1.0	1.0	1.0
	Both Rear	4564100	1.6	1.6	1.6
7	. SLIDING CALIPER, REAR - REPLACE	.	.	.	.
	Right	4564300	—	0.7	0.7
	Left	4564400	—	0.7	0.7
	Both	4564500	—	0.9	0.9
	. SLIDING CALIPER, REAR - OH	.	.	.	.
	Right	4564700	—	1.0	1.0
	Left	4564800	—	1.0	1.0
	Both	4564900	—	1.6	1.6
8	. DISC, REAR BRAKE - REPLACE	.	.	.	.
	Right	4565100	—	0.6	0.6
	Left	4565200	—	0.6	0.6
	Both	4565300	—	0.8	0.8
9	. PIN, CALIPER GUIDE (UPPER/LOWER) - REPLACE	.	.	.	.
	Right	4565500	—	0.9	0.9
	Left	4565600	—	0.9	0.9
	Both	4565700	—	1.1	1.1
10	. PISTON, CALIPER - REPLACE	4565900	—	0.9	0.9
11	. BLEEDER SCREW - REPLACE	4566100	0.2	0.2	0.2
12	. AD, REAR BRAKE - REPLACE	.	.	.	.
	Right	4566300	—	0.4	0.4
	Left	4566400	—	0.4	0.4
	Both	4566500	—	0.6	0.6

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA

REAR BRAKES - REAR BRAKE (456)

S : KALOS, N : NUBIRA/LACETTI, L : EVANDA
