SECTION 4D

BRAKE (FRONT BRAKES)

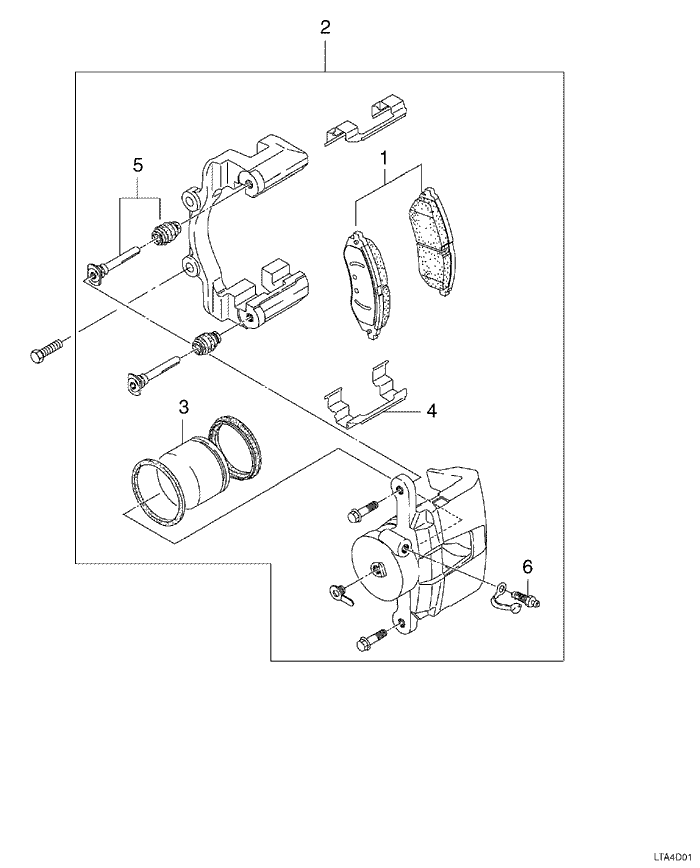

LTA4D01
Display graphicTranslations of text in graphics


FRONT BRAKES - FRONT BRAKE (445)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S
N
L
1
. PADS, DISC BRAKE (FRONT) - REPLACE
.
.
.
.
Right
4450100
0.4
0.5
0.5
Left
4450110
0.4
0.5
0.5
Both
4450120
0.6
0.8
0.8
2
. CALIPER ASSEMBLY - REPLACE
.
.
.
.
Right Front
4450300
0.7
0.7
0.7
Left Front
4450400
0.7
0.7
0.7
Both Front
4450500
0.9
1.0
1.0
3
. SEAL KIT, PISTON - REPLACE
4450700
0.9
0.9
0.9
4
. SPRING, PAD - REPLACE
4450900
0.4
0.5
0.5
5
. PIN KIT (UPPER/LOWER) - REPLACE
.
.
.
.
Right
4451100
0.9
0.7
0.7
Left
4451200
0.9
0.7
0.7
Both
4451300
1.1
1.1
1.1
6
. BLEEDER SCREW - REPLACE
4451500
0.2
0.3
0.3
S : KALOS, N : NUBIRA/LACETTI, L : EVANDA
