Labor Time Guide2006 Kalos RESTRAINTS (SEAT BELTS)

SECTION 8A

RESTRAINTS (SEAT BELTS)

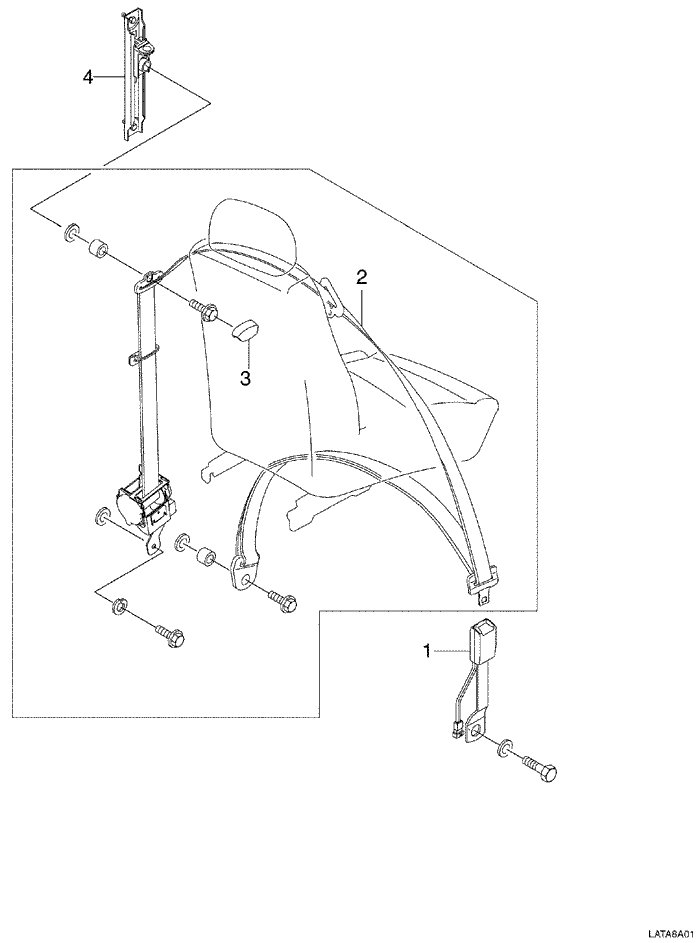

SEAT BELTS - FRONT SEAT BELT (812)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
1	. BUCKLE, FRONT SEAT BELT - REPLACE	.	.	.	.
	Right	8120100	0.3	0.3	0.3
	Left	8120200	0.3	0.3	0.3
	Both	8120300	0.5	0.5	0.5
2	. BELT, SAFETY FRONT (RETRACTOR SIDE) - REPLACE	.	.	.	.
	Right	8120500	0.4	0.4	0.4
	Left	8120600	0.4	0.4	0.4
	Both	8120700	0.6	0.7	0.7
3	. GUIDE AND/OR COVER, SAFETY BELT - REPLACE	.	.	.	.
	Right	8120900	0.2	0.2	0.2
	Left	8121100	0.2	0.2	0.2
4	. ADJUSTER, FRONT SAFETY BELT - REPLACE	.	.	.	.
	Right	8121300	0.3	0.4	0.4
	Left	8121400	0.3	0.4	0.4

S : AVEO/KALOS/BARINA, N : NUBIRA/LACETTI/FORENZA/OPTRA/VIVA , L : EVANDA/EPICA

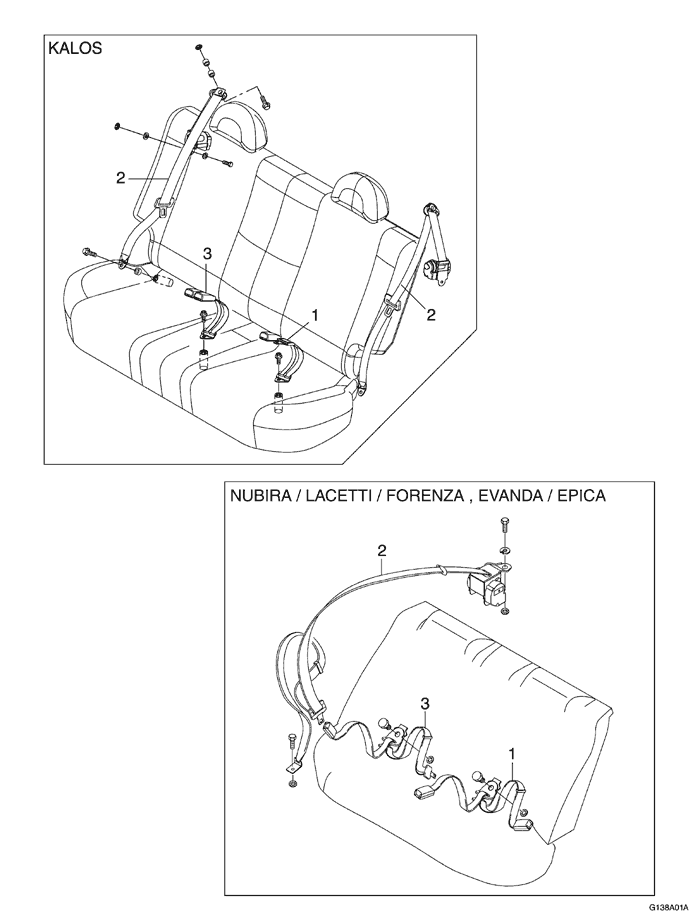

SEAT BELTS - REAR SEAT BELT (822)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	S	N	L
1	. BUCKLE, REAR SEAT BELT CENTER - REPLACE	8220100	0.2	0.3	0.3
2	. BELT, SAFETY REAR (RETRACTOR SIDE) - REPLACE	.	.	.	.
	Right	8220400	0.6	0.6	0.6
	Left	8220500	0.6	0.6	0.6
	Center	8220600	0.7	0.8	0.8
3	. BUCKLE, REAR SEAT BELT - REPLACE	8220900	0.3	0.3	0.3

S : AVEO/KALOS/BARINA, N : NUBIRA/LACETTI/FORENZA/OPTRA/VIVA , L : EVANDA/EPICA
