SECTION 9E

BODY & ACCESSORIES (INSTRUMENT DRIVER SYSTEM)

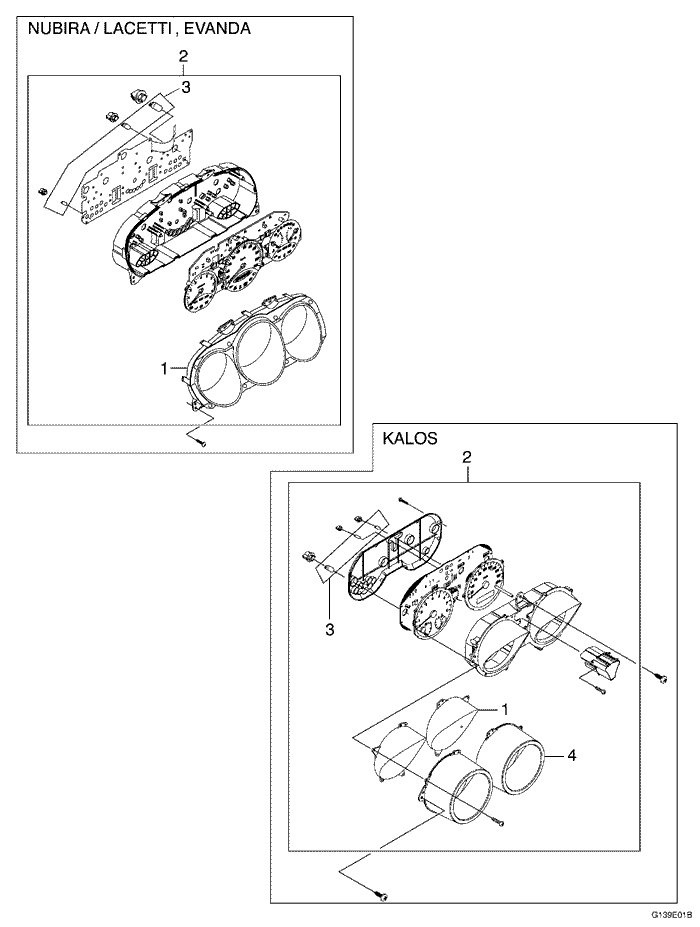

G139E01B
Display graphicTranslations of text in graphics


INSTRUMENT DRIVER SYSTEM - INSTRUMENT CLUSTER (925)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S
N
L
1
. LENS, INSTRUMENT CLUSTER - REPLACE
9250100
0.3
0.4
0.5
2
. CLUSTER ASSEMBLY, I/P - REPLACE
9250300
0.3
0.4
0.4
3
. BULB, CLUSTER - REPLACE
9251700
0.4
0.4
0.4
4
. CAP, INSTRUMENT - REPLACE
9252400
0.4
–
—
S : KALOS, N : NUBIRA/LACETTI, L : EVANDA
