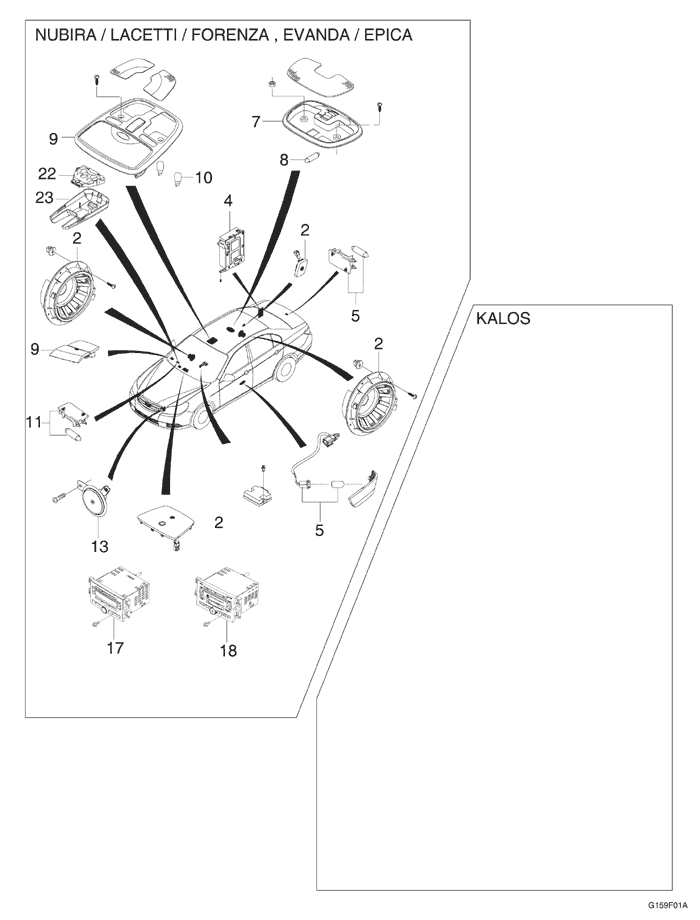

SECTION 9F

BODY & ACCESSORIES (AUDIO & ANTI-THEFT SYSTEM)

G159F01A
Display graphicTranslations of text in graphics


AUDIO SYSTEM - ELECTRICAL PARTS (928)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. RESISTOR, COOLING FAN - REPLACE
9280100
0.2
0.2
0.3
0.3
0.3
2
. SPEAKER, RADIO - REPLACE
.
.
.
.
.
.
Center
9280200
—
—
—
—
0.2
Right Front
9280300
0.3
0.3
0.5
0.5
0.5
Left Front
9280400
0.3
0.3
0.5
0.5
0.5
Both Front
9280500
0.5
0.5
0.8
0.8
0.8
Right Rear
9280600
0.2
0.2
0.5
0.5
0.5
Left Rear
9280700
0.2
0.2
0.5
0.5
0.5
Both Rear
9280800
0.3
0.3
0.8
0.8
0.8
. SPEAKER, REAR, RADIO - REPLACE
.
.
.
.
.
.
Hatch Back
9280900
0.2
0.2
—
—
—
Wagon
9281000
—
—
0.3
—
—
3
. HORN ASSEMBLY - REPLACE
9281100
0.2
0.2
0.3
0.3
0.3
4
. SPEAKER, TRUNK LID - REPLACE
9281200
—
—
—
—
0.3
5
. LAMP, REAR COMPARTMENT - REPLACE
9281300
0.2
0.2
0.2
0.2
0.2
6
. LAMP, DOOR STEP - REPLACE
9281400
—
—
—
0.3
0.3
7
. LAMP, ROOM (CENTRAL) - REPLACE
9281500
—
—
0.3
0.2
0.2
8
. BULB, ROOM LAMP (CENTRAL) - REPLACE
9281600
—
—
0.2
0.2
0.2
9
. LAMP ASS'Y (ROOM) - REPLACE
9281700
0.2
0.2
0.3
0.3
0.3
10
. BULB, LAMP ASS'Y (ROOM) - REPLACE
9281800
0.2
0.2
0.2
0.2
0.2
11
. LAMP, GLOVE BOX - REPLACE
9281900
—
—
—
0.2
0.2
12
. BULB, GLOVE BOX LAMP - REPLACE
9282000
—
—
—
0.2
0.2
13
. SWITCH, GLOVE BOX LAMP - REPLACE
9282100
—
—
—
0.3
0.2
14
. SWITCH, HOOD CONTACT - REPLACE
9282300
0.2
0.2
0.2
0.2
0.2
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

G159F01A
Display graphicTranslations of text in graphics


AUDIO SYSTEM - ELECTRICAL PARTS (928)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
15
. CASSETTE - REPLACE
9283100
0.2
0.2
0.5
0.3
0.3
16
. EQUALIZER, CASSETTE - REPLACE
9283200
—
—
—
0.3
0.3
17
. PLAYER, COMPACT DISK - REPLACE
9283300
0.2
0.2
0.5
0.3
0.3
18
. CD CHANGER - REPLACE
9283400
—
—
0.5
0.3
0.3
19
. TWEETER, INNER COVER - REPLACE
.
.
.
.
.
.
Right
9283600
0.2
0.2
0.2
0.2
0.2
Left
9283700
0.2
0.2
0.2
0.2
0.2
20
. SWITCH, AUDIO REMOTE CONTROL
9283800
0.2
0.2
0.2
0.2
0.2
21
. CABLE, CD CHANGER - REPLACE
9283900
—
—
1.5
1.5
1.5
22
. SENSOR, RAIN - REPLACE
9284200
—
—
0.3
0.3
0.3
23
. COVER, RAIN SENSOR - REPLACE
9284300
—
—
0.2
0.2
0.2
24
. BATTERY SAVER - REPLACE
9284500
0.2
0.2
0.2
0.2
0.2
25
. FOLDING MIRROR UNIT
9284600
—
0.2
0.4
0.4
0.4
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA

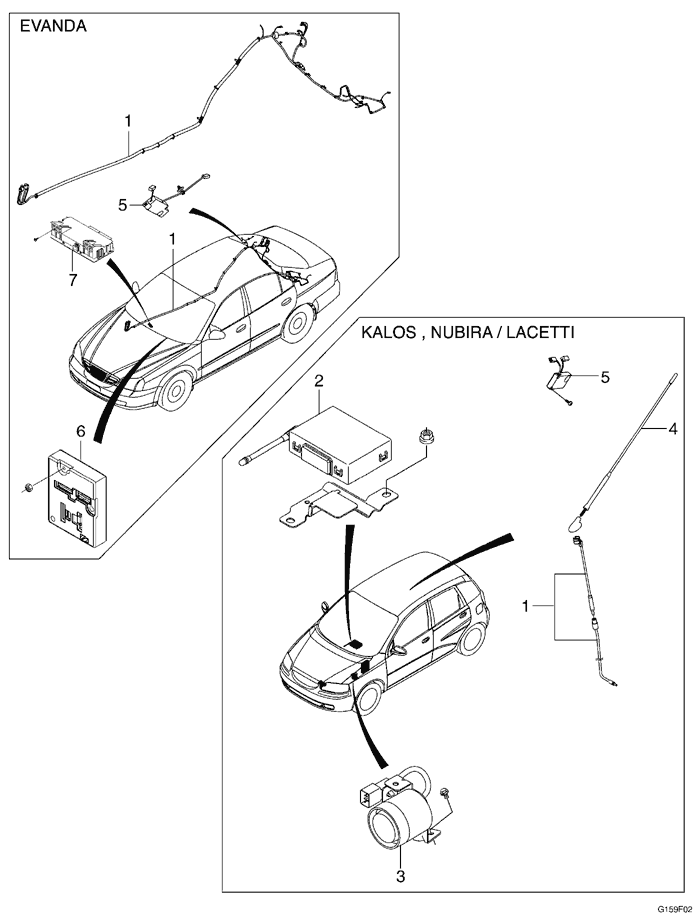

G159F02
Display graphicTranslations of text in graphics


AUDIO & ANTI-THEFT SYSTEM - ANTENNA (929)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
S1
S2
N
L1
L2
1
. CABLE, ANTENNA - REPLACE
.
.
.
.
.
.
Antenna to Connector
9290300
1.5
1.5
1.5
1.5
1.5
Radio to Connector
9290400
0.9
0.9
0.9
0.9
0.9
2
. CONTROL UNIT, REMOTE - REPLACE
9291100
0.3
0.3
0.5
—
—
3
. SIREN - REPLACE
9291300
0.2
0.2
0.2
0.2
0.2
4
. ANTENNA ASSEMBLY, ROOF - REPLACE
9291700
0.2
—
0.2
—
—
5
. MODULE, GLASS ANTENNA
9291800
0.3
0.3
0.3
0.3
0.3
6
. SWITCH UNIT, INTELLIGENT - REPLACE
9293600
—
—
—
0.5
0.5
7
. MODULE, LIGHTING CONTROL - REPLACE
9293800
—
—
—
—
0.3
S1 : T200(AVEO / KALOS / BARINA), S2 : T250(AVEO), N : NUBIRA / LACETTI / FORENZA / OPTRA/VIVA, L1 : EVANDA / EPICA, L2 : EPICA
