SECTION

SCHEMATIC AND ROUTING DIAGRAMS

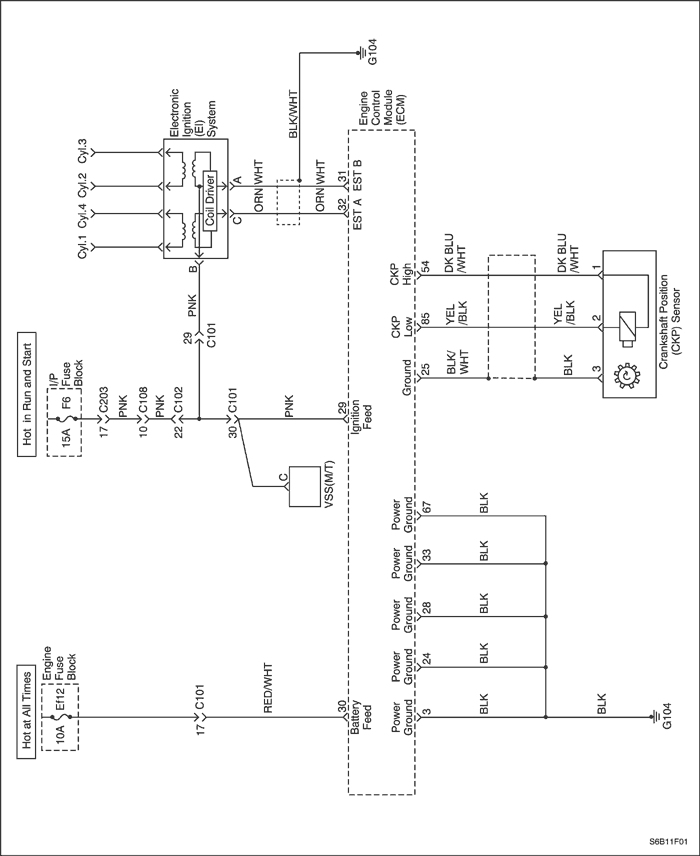

ECM Wiring Diagram (1.2L SOHC - 1 OF 7)


S6B11F01
Display graphicTranslations of text in graphics

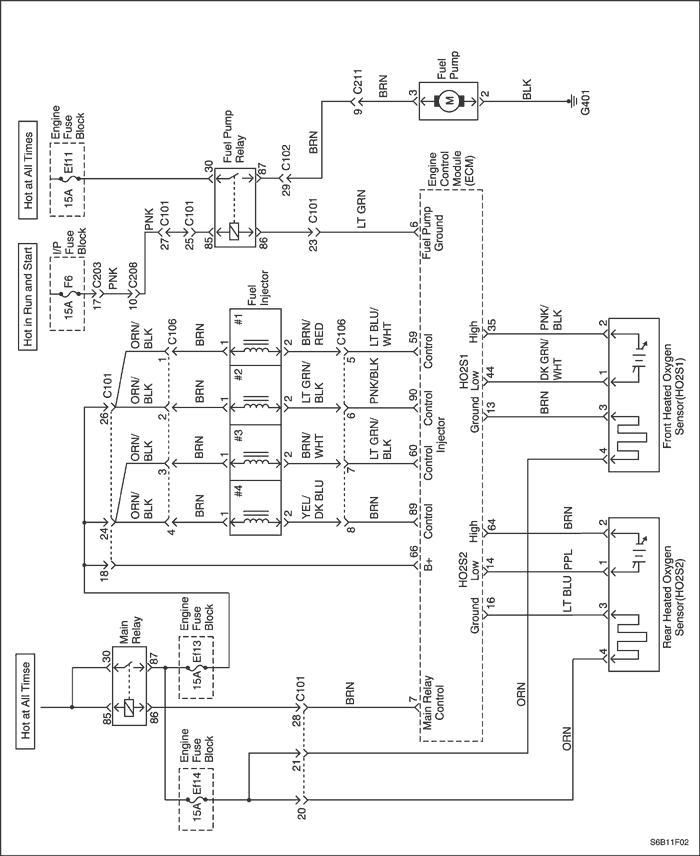

ECM Wiring Diagram (1.2L SOHC - 2 OF 7)


S6B11F02
Display graphicTranslations of text in graphics

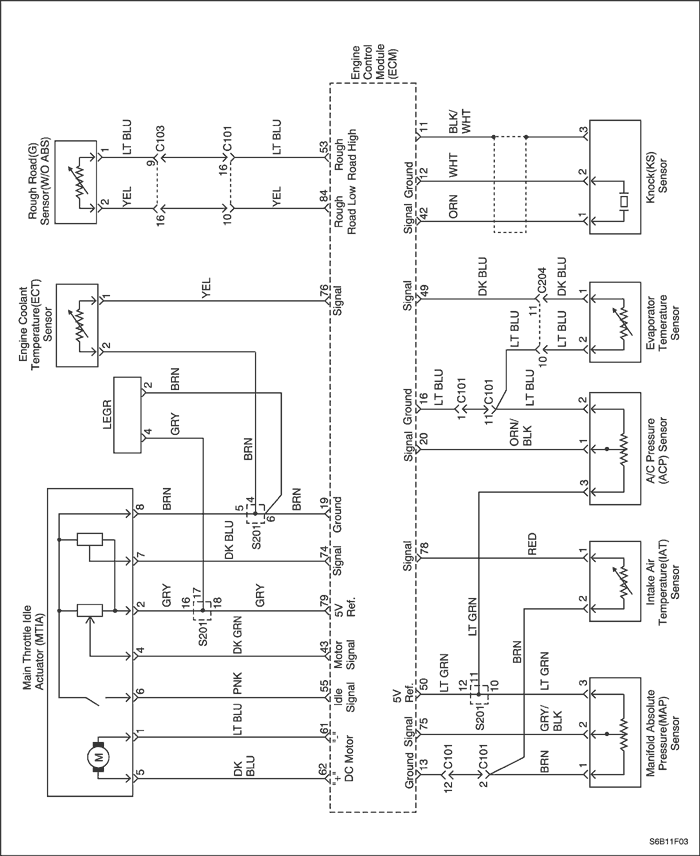

ECM Wiring Diagram (1.2L SOHC - 3 OF 7)


S6B11F03
Display graphicTranslations of text in graphics

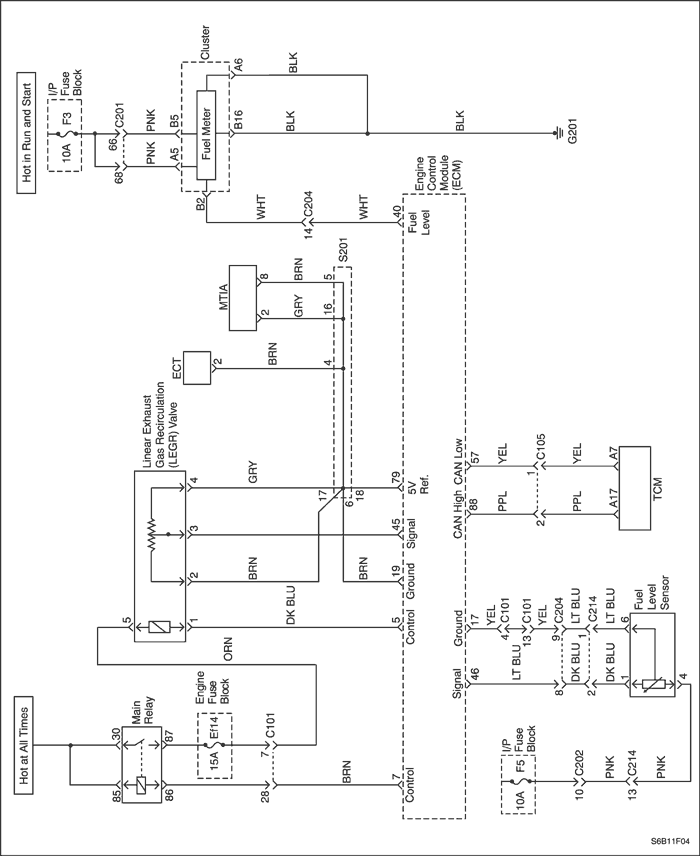

ECM Wiring Diagram (1.2L SOHC - 4 OF 7)


S6B11F04
Display graphicTranslations of text in graphics

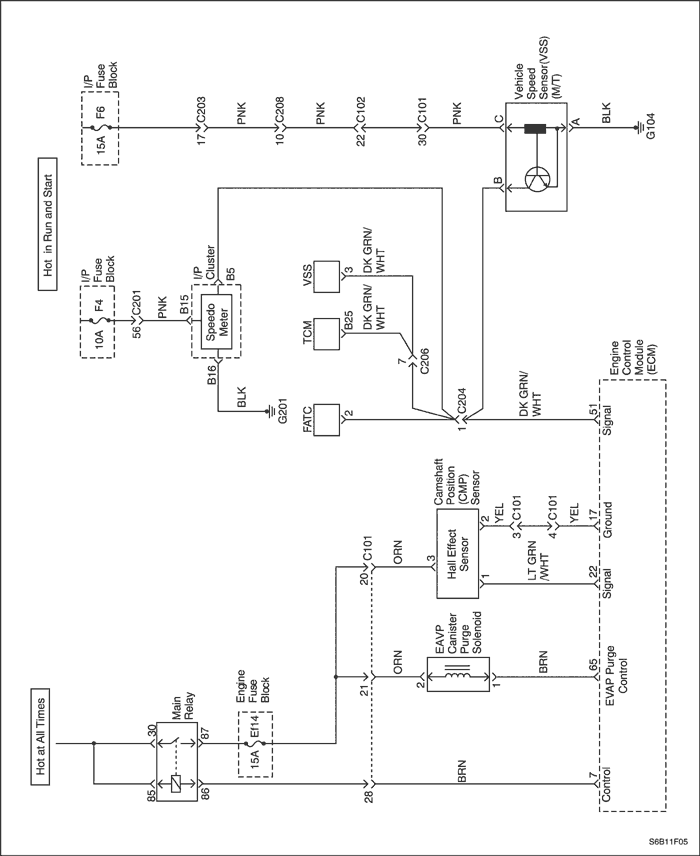

ECM Wiring Diagram (1.2L SOHC - 5 OF 7)


S6B11F05
Display graphicTranslations of text in graphics

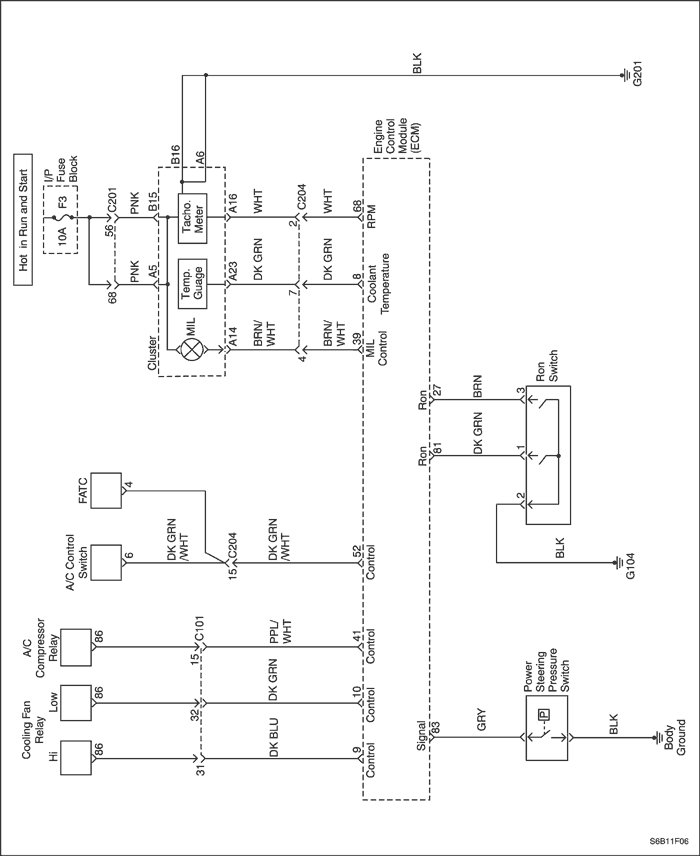

ECM Wiring Diagram (1.2L SOHC - 6 OF 7)


S6B11F06
Display graphicTranslations of text in graphics

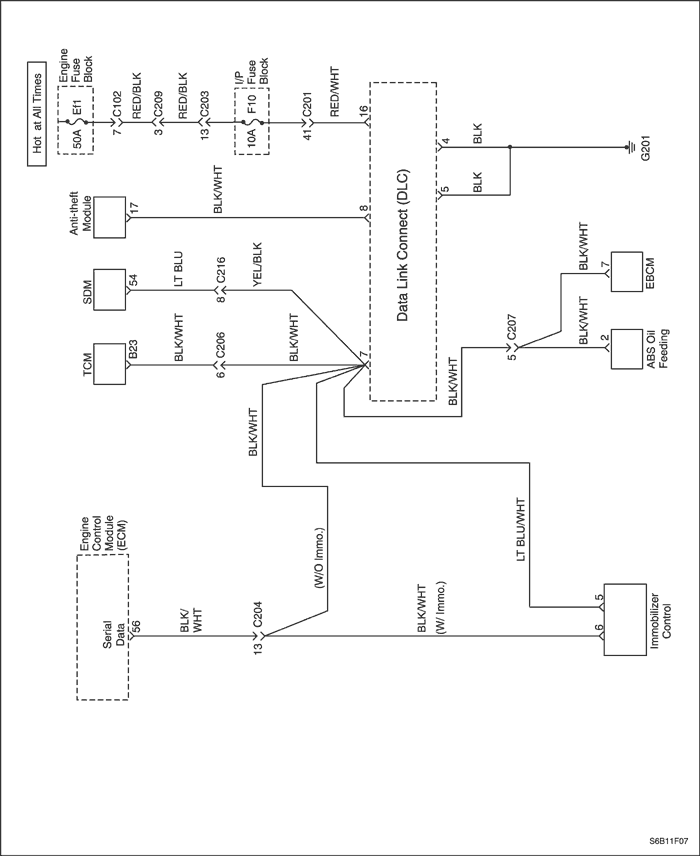

ECM Wiring Diagram (1.2L SOHC - 7 OF 7)


S6B11F07
Display graphicTranslations of text in graphics

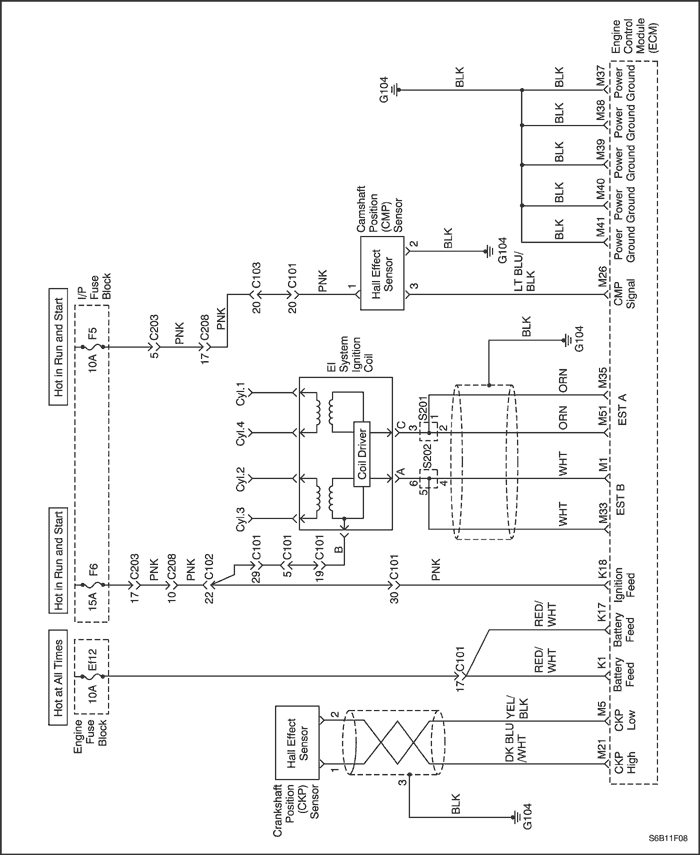

ECM Wiring Diagram (1.4L DOHC - 1 OF 6)


S6B11F08
Display graphicTranslations of text in graphics

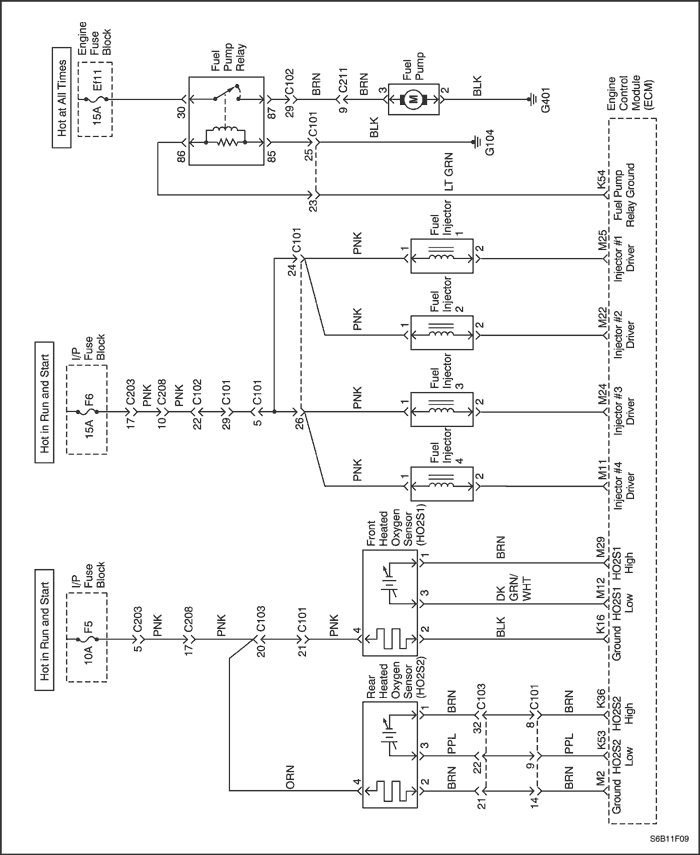

ECM Wiring Diagram (1.4L DOHC - 2 OF 6)


S6B11F09
Display graphicTranslations of text in graphics

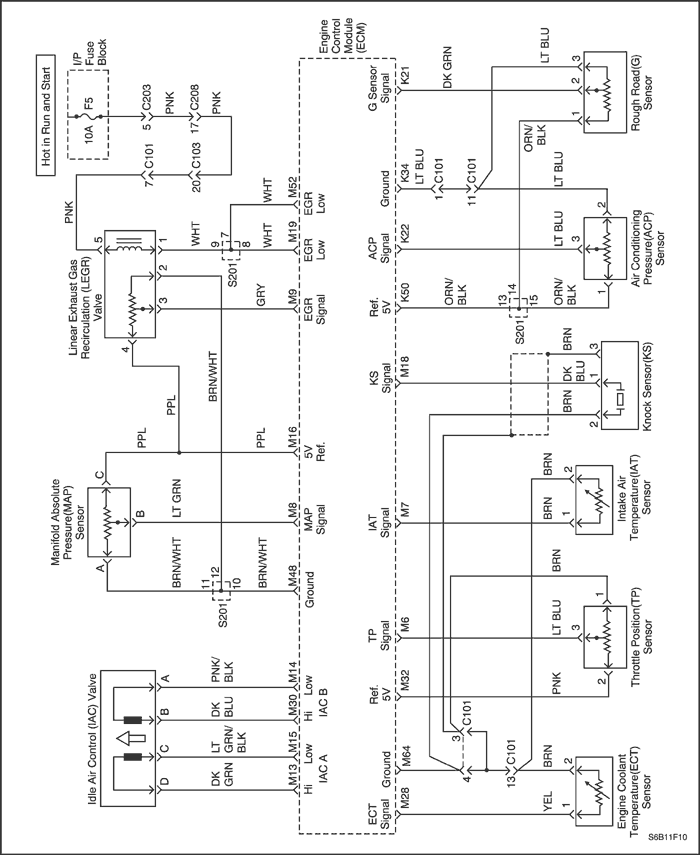

ECM Wiring Diagram (1.4L DOHC - 3 OF 6)


S6B11F10
Display graphicTranslations of text in graphics

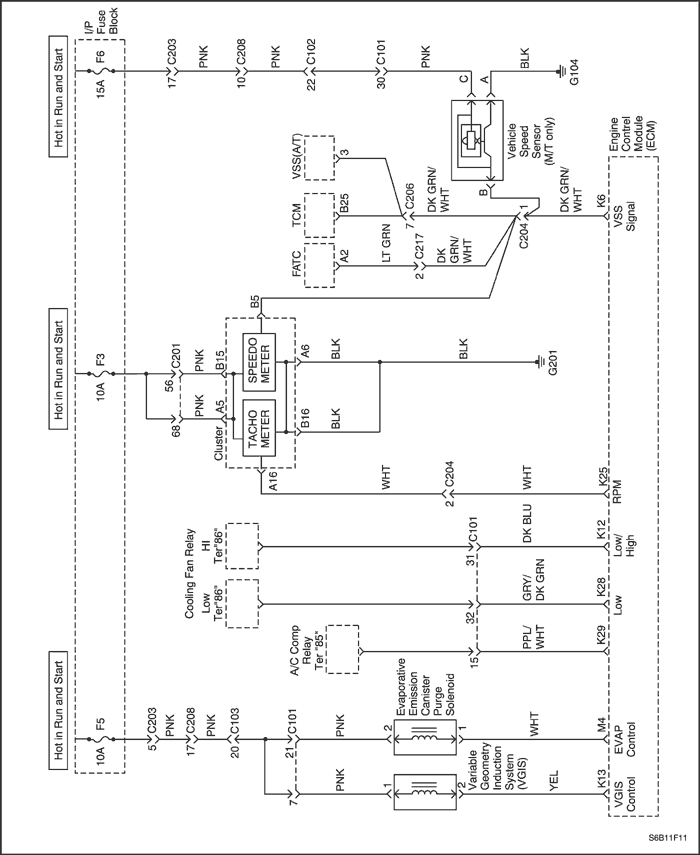

ECM Wiring Diagram (1.4L DOHC - 4 OF 6)


S6B11F11
Display graphicTranslations of text in graphics

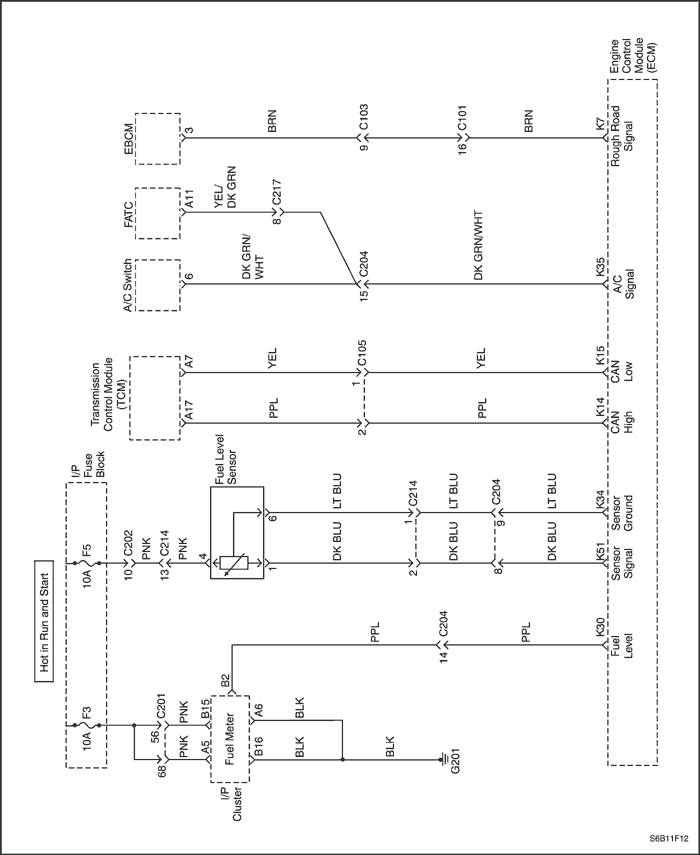

ECM Wiring Diagram (1.4L DOHC - 5 OF 6)


S6B11F12
Display graphicTranslations of text in graphics

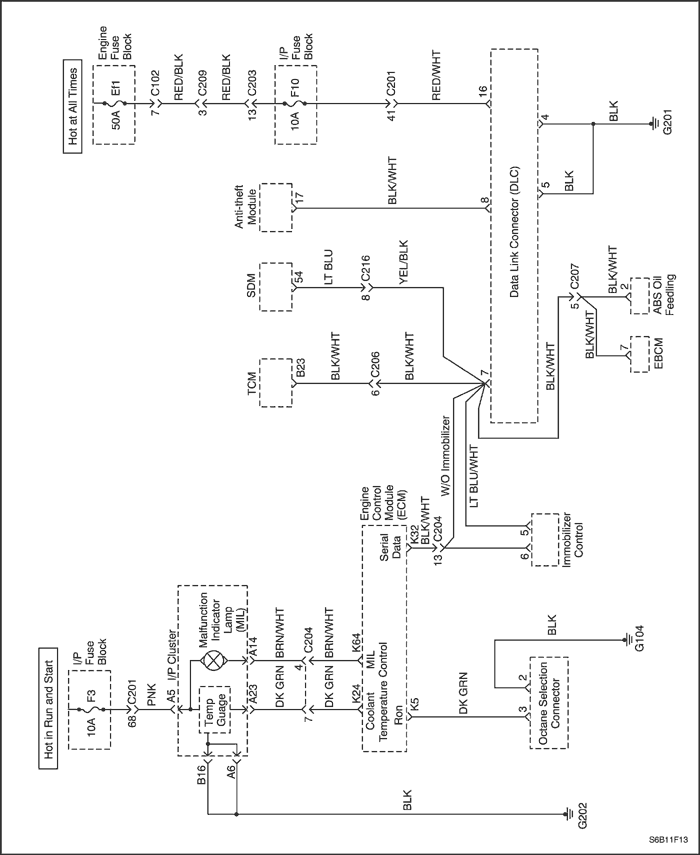

ECM Wiring Diagram (1.4L DOHC - 6 OF 6)


S6B11F13
Display graphicTranslations of text in graphics


Connector END View

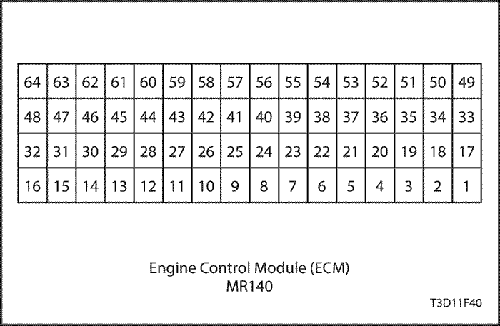

T3D11F40
Display graphicTranslations of text in graphics

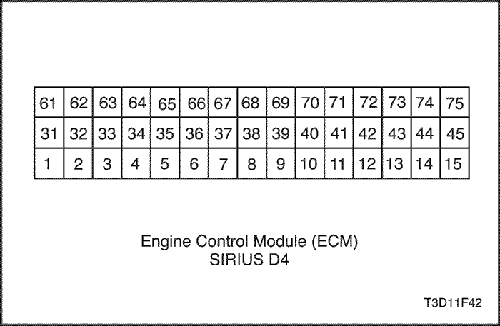

T3D11F42
Display graphicTranslations of text in graphics

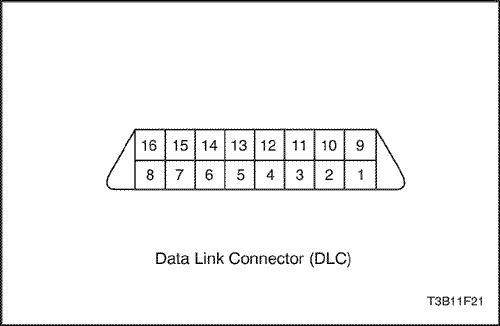

T3B11F21
Display graphicTranslations of text in graphics

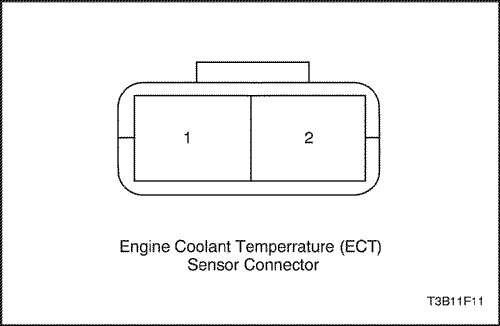

T3B11F11
Display graphicTranslations of text in graphics

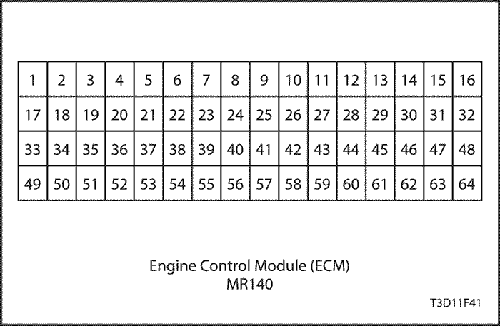

T3D11F41
Display graphicTranslations of text in graphics

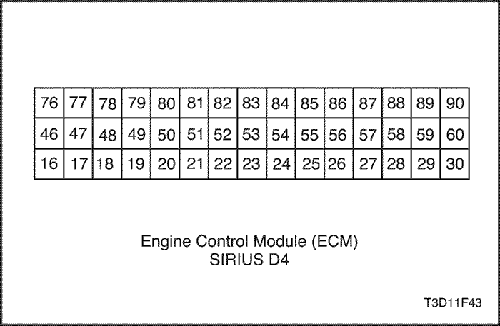

T3D11F43
Display graphicTranslations of text in graphics

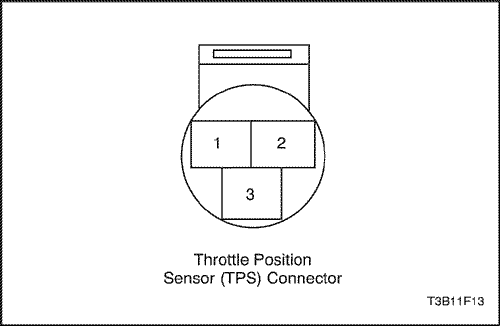

T3B11F13
Display graphicTranslations of text in graphics

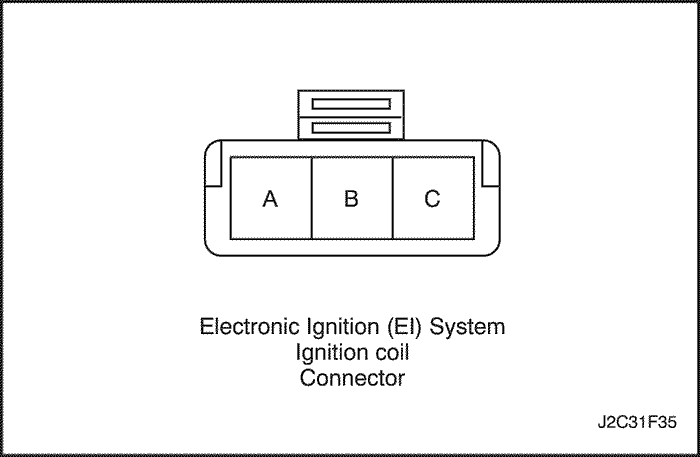

J2C31F35
Display graphicTranslations of text in graphics

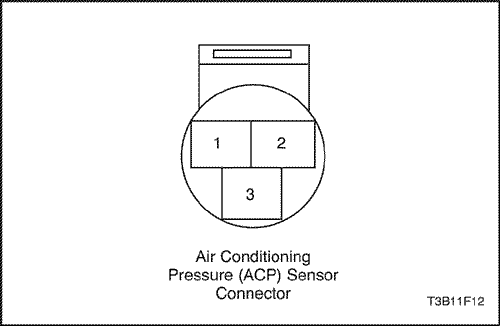

T3B11F12
Display graphicTranslations of text in graphics



A102F076
Display graphicTranslations of text in graphics



A402F017
Display graphicTranslations of text in graphics

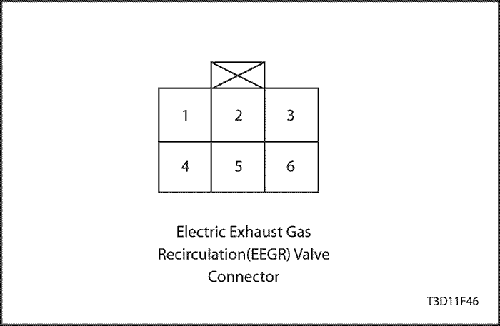

T3D11F46
Display graphicTranslations of text in graphics



A402F020
Display graphicTranslations of text in graphics

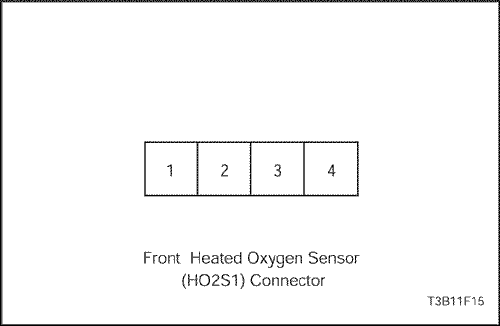

T3B11F15
Display graphicTranslations of text in graphics

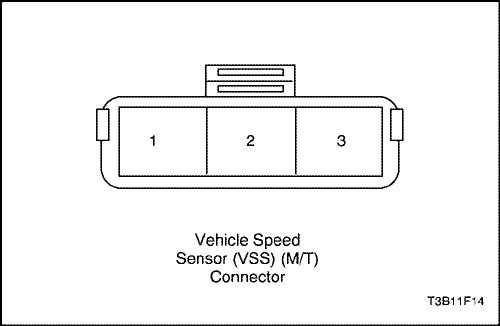

T3B11F14
Display graphicTranslations of text in graphics

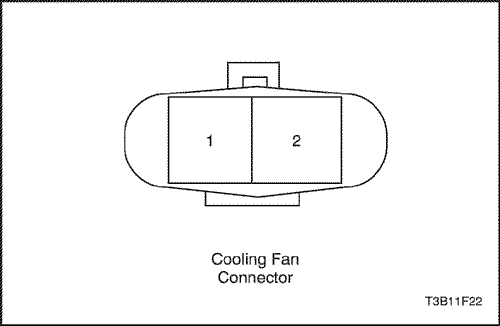

T3B11F22
Display graphicTranslations of text in graphics

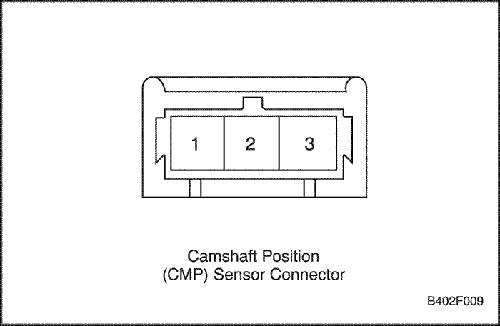

B402F009
Display graphicTranslations of text in graphics

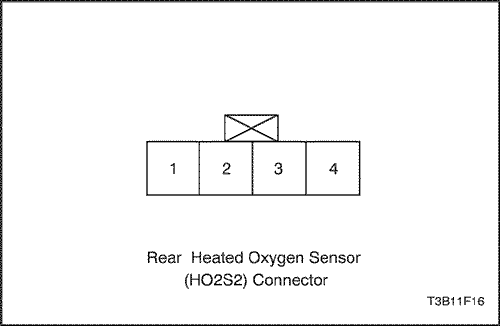

T3B11F16
Display graphicTranslations of text in graphics

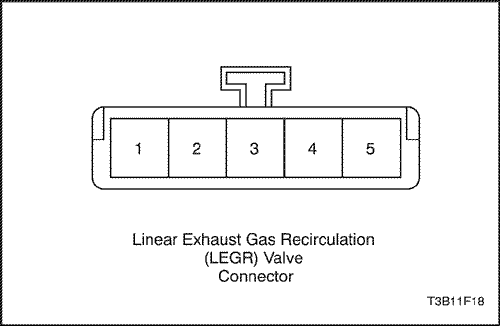

T3B11F18
Display graphicTranslations of text in graphics

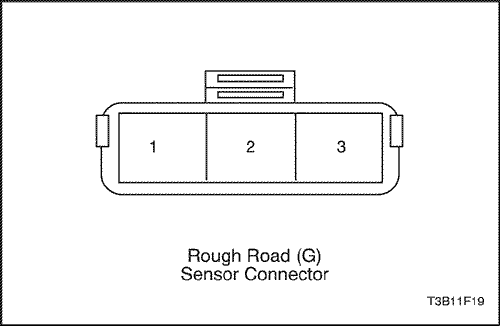

T3B11F19
Display graphicTranslations of text in graphics

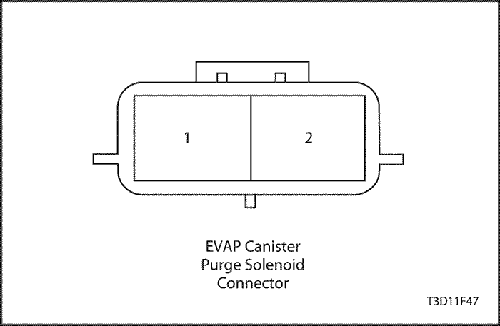

T3D11F47
Display graphicTranslations of text in graphics

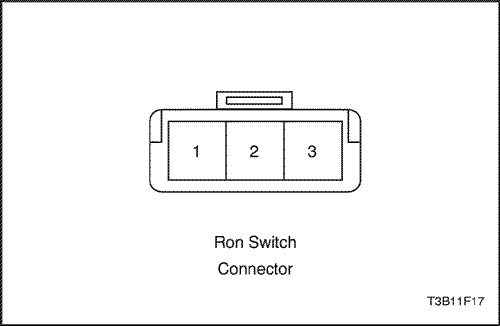

T3B11F17
Display graphicTranslations of text in graphics

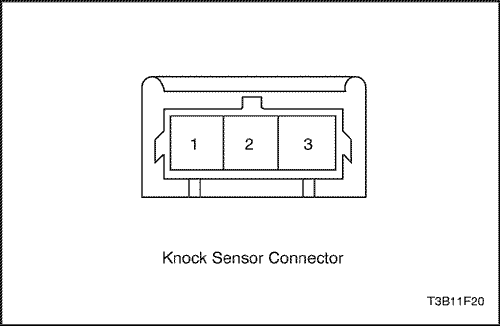

T3B11F20
Display graphicTranslations of text in graphics


COMPONENT LOCATOR

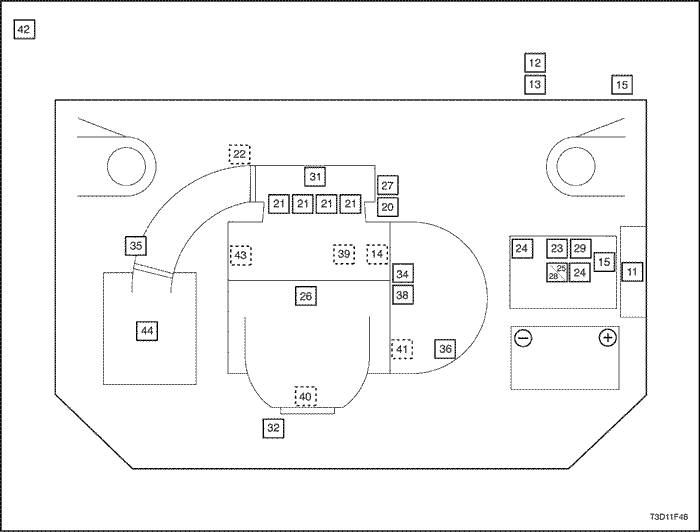

Component Locator (1.2L SOHC)


T3D11F48
Display graphicTranslations of text in graphics


Components on ECM Harness
  1. Engine Control Module (ECM)
  2. Data Link Connector (DLC)
  3. Malfunction Indicator Lamp (MIL)
  4. ECM/ABS Harness Ground
  5. Fuse Panel (2)
ECM Controlled Devices
  1. Exhaust Gas Recirculation (EGR) Valve
  2. Fuel Injector (4)
  3. Main Throttle Idle Actuator (MTIA)
  4. Fuel Pump Relay
  5. Cooling Fan Relays
  6. Cooling Fan Control Relay (A/C Only)
  7. Electronic Ignition System Ignition Coil
  8. Evaporative Emission (EVAP) Control Purge Solenoid
  9. Main Relay
  10. A/C Compressor Relay
Information Sensors
  1. Manifold Absolute Pressure (MAP) Sensor
  2. Front Heated Oxygen Sensor (HO2S1)
  3. Engine Coolant Temperature (ECT) Sensor
  4. Intake Air Temperature (IAT) Sensor
  5. Vehicle Speed Sensor (VSS)
  6. Crankshaft Position (CKP) Sensor
  7. Knock Sensor
  8. Rear Heated Oxygen Sensor (HO2S2)
  9. Camshaft Position (CMP) Sensor
Not PCM/ECM Connected
  1. Evaporative Emission Canister (under vehicle, behind right rear wheel)
  2. Engine Oil Pressure Switch
  3. Air Cleaner

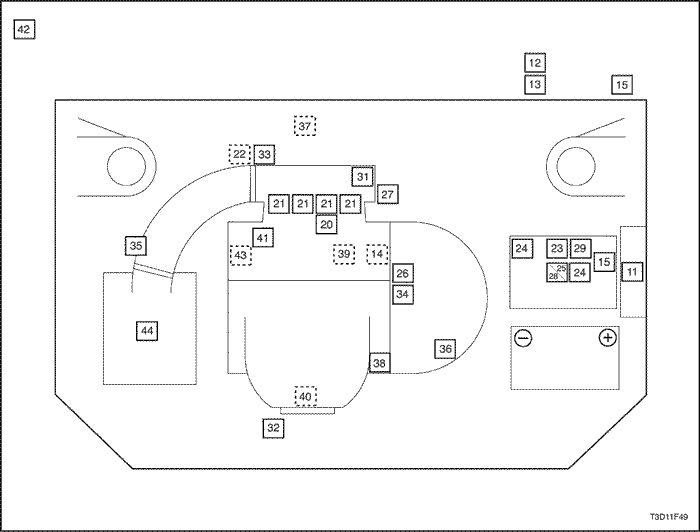

Component Locator (1.4L DOHC)


T3D11F49
Display graphicTranslations of text in graphics


Components on ECM Harness
  1. Engine Control Module (ECM)
  2. Data Link Connector (DLC)
  3. Malfunction Indicator Lamp (MIL)
  4. ECM/ABS Harness Ground
  5. Fuse Panel (2)
ECM Controlled Devices
  1. Exhaust Gas Recirculation (EGR) Valve
  2. Fuel Injector (4)
  3. Idle Air Control (IAC) Valve
  4. Fuel Pump Relay
  5. Cooling Fan Relays
  6. Cooling Fan Control Relay (A/C Only)
  7. Electronic Ignition System Ignition Coil
  8. Evaporative Emission (EVAP) Control Purge Solenoid
  9. Main Relay
  10. A/C Compressor Relay
Information Sensors
  1. Manifold Absolute Pressure (MAP) Sensor
  2. Front Heated Oxygen Sensor (HO2S1)
  3. Throttle Position (TP) Sensor
  4. Engine Coolant Temperature (ECT) Sensor
  5. Intake Air Temperature (IAT) Sensor
  6. Vehicle Speed Sensor (VSS)
  7. Variable Geometry Induction System (VGIS) Sensor
  8. Crankshaft Position (CKP) Sensor
  9. Knock Sensor
  10. Rear Heated Oxygen Sensor (HO2S2)
  11. Camshaft Position (CMP) Sensor
Not PCM/ECM Connected
  1. Evaporative Emission Canister (under vehicle, behind right rear wheel)
  2. Engine Oil Pressure Switch
  3. Air Cleaner
