Green

DK GRN

Light Green

LT GRN

Blue

DK BLU

Brown

BRN

Orange

ORN

Yellow

YEL

Grey

GRY

Sky Blue

LT BLU

Red

RED

Black

BLK

Pink

PNK

White

WHT

Purple

PPL

Red with White Tracer

RED/WHT

Red with Black Tracer

RED/BLK

Brown with White Tracer

BRN/WHT

Black with White Tracer

BLK/WHT

Black with Yellow Tracer

BLK/YEL

Green with Black Tracer

DK GRN/BLK

Green with White Tracer

DK GRN/WHT

Light Green with Black Tracer

LT GRN/BLK

Red with Yellow Tracer

RED/YEL

Red with Blue Tracer

RED/DK BLU

Black with Brown Tracer

BLK/BRN

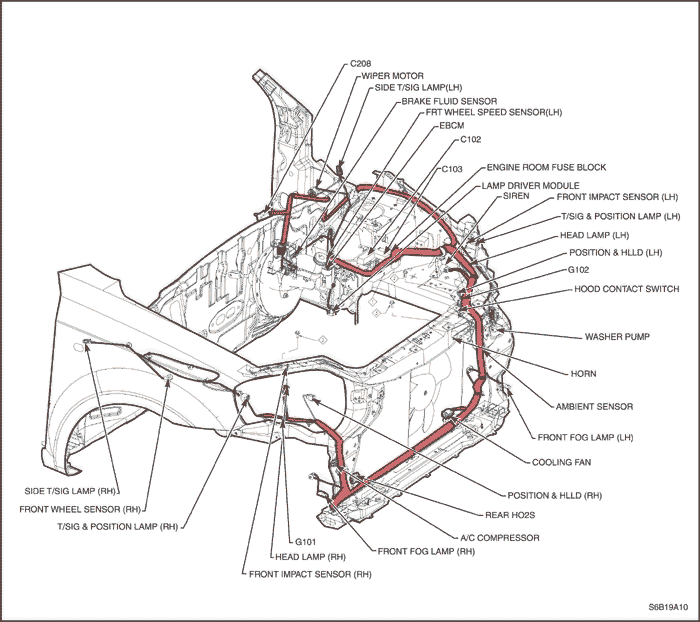

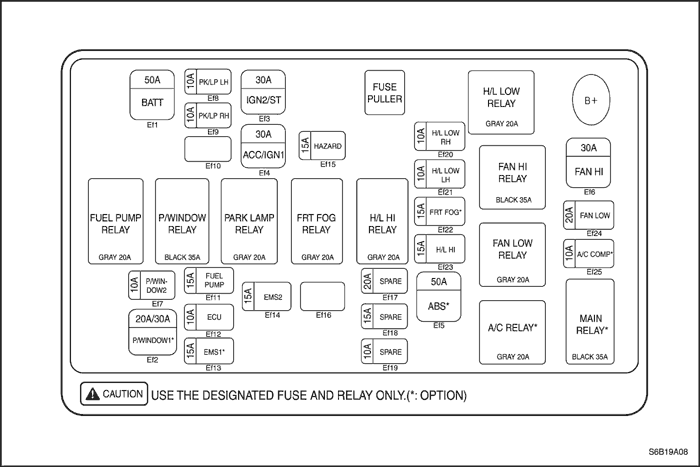

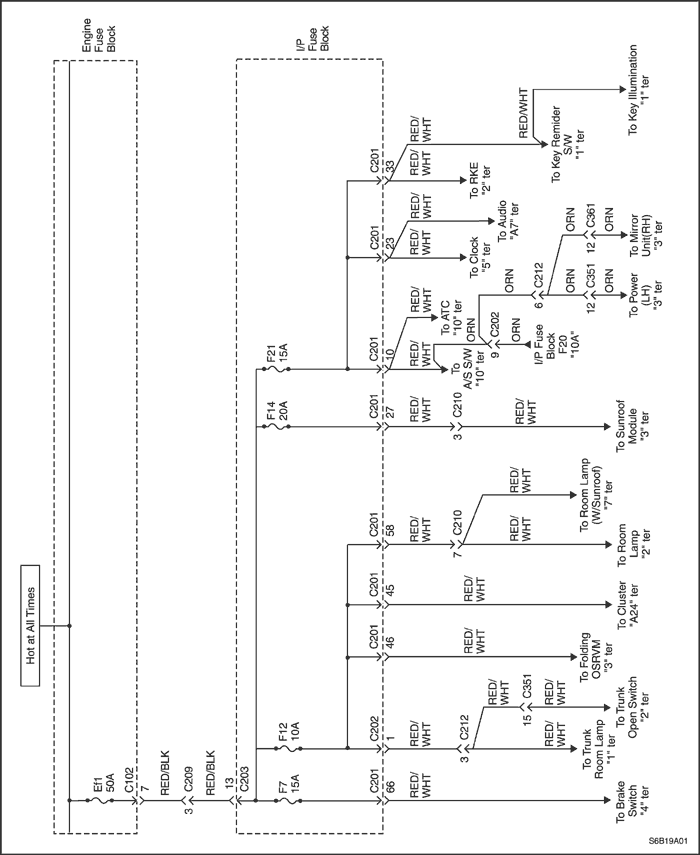

Ef1

50A

B+

I/P Fuse Block (F7, F10~F16, F18, F21)

Ef2

30A

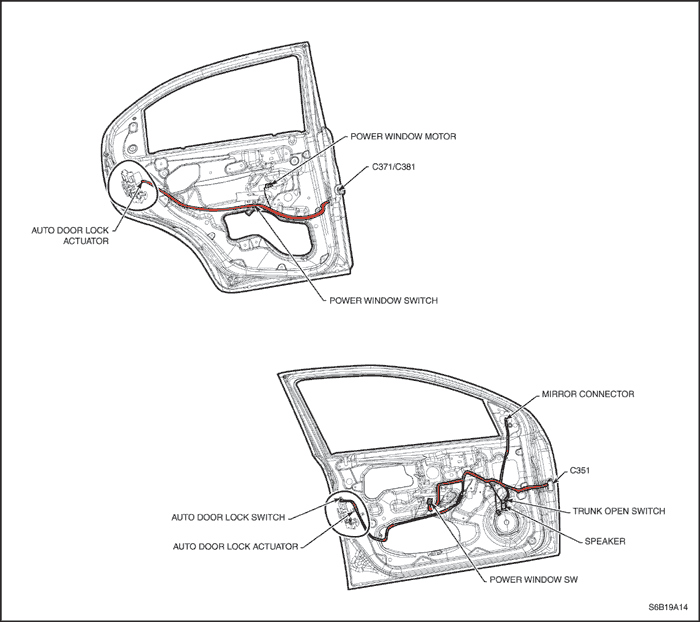

Power Window Relay

Power Window Switch

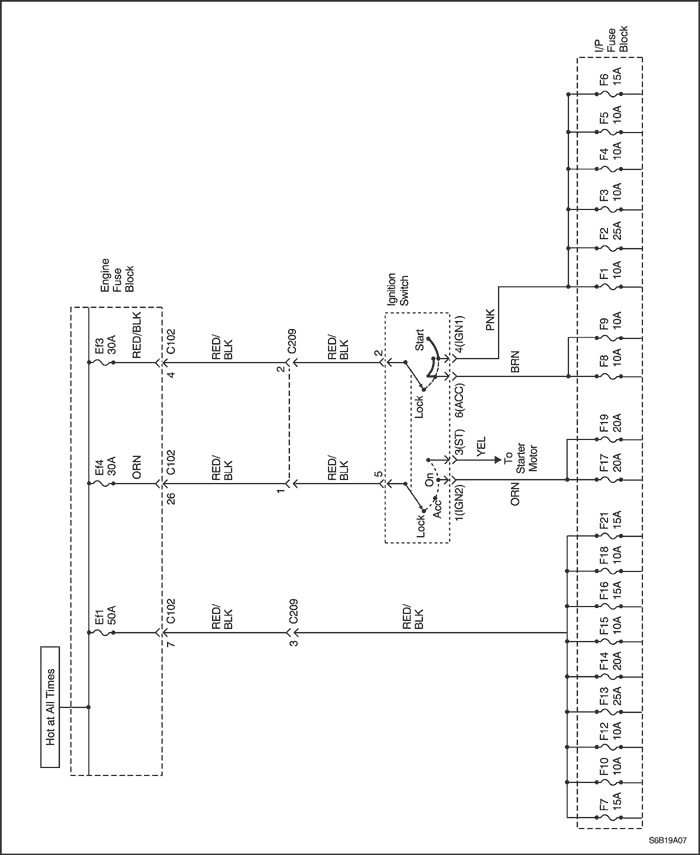

Ef3

30A

B+

Ignition Switch

Ef4

30A

B+

Ignition Switch

Ef5

50A

B+

EBCM

Ef6

30A

B+

Cooling Fan HI Relay

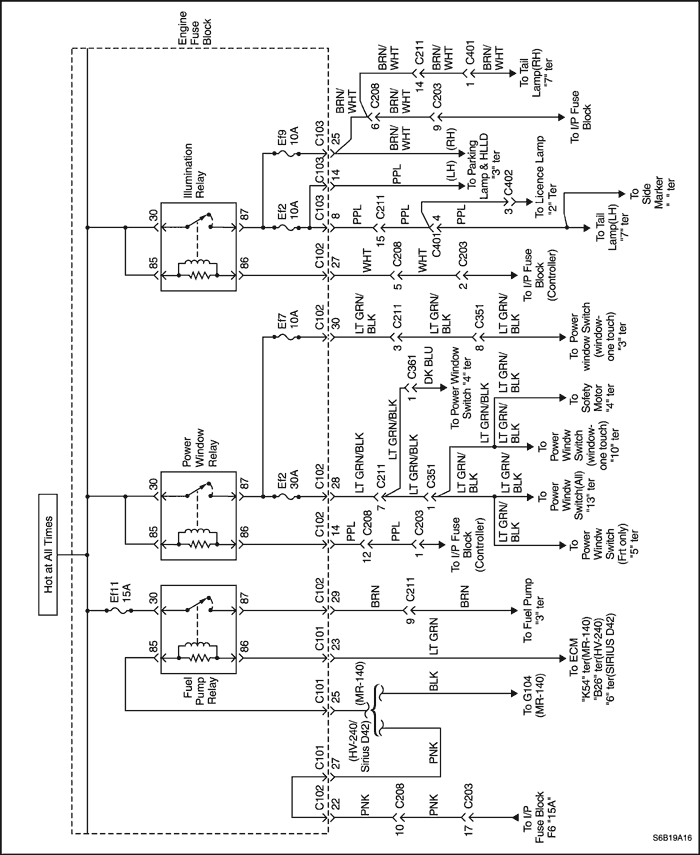

Ef7

10A

Power Window Relay

Power Window Switch

Ef8

10A

B+

Tail Lamp (LH), License Lamp, Parking Lamp & HLLD (LH)

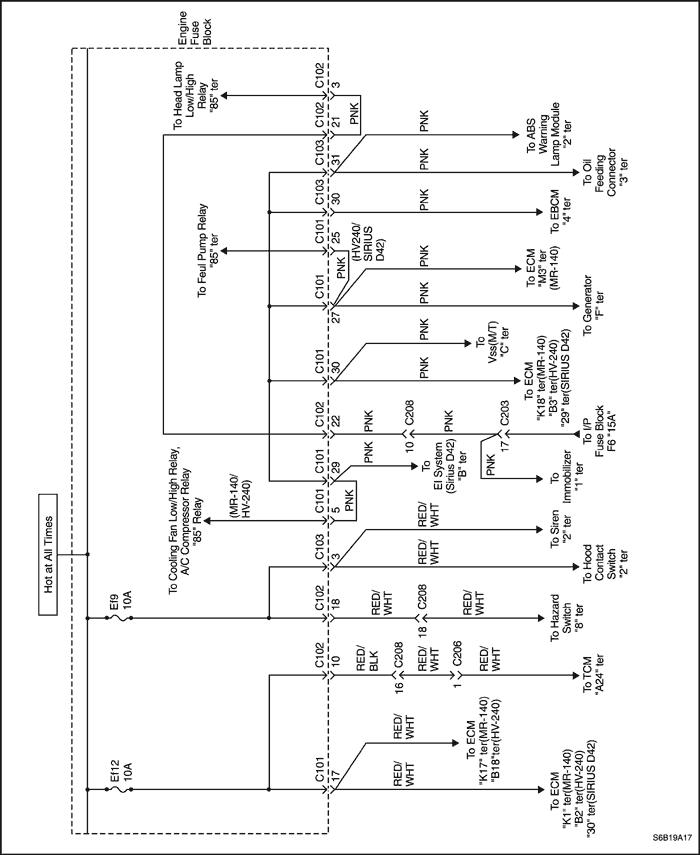

Ef9

10A

Illumination

Tail Lamp (RH), Parking Lamp & HLLD (RH), Illumination Circuit

Ef10

-

Spare

-

Ef11

15A

B+

Fuel Pump Relay

Ef12

10A

B+

ECM, TCM

Ef13

15A

Main Relay

ECM, Injector, Cooling Fan, A/C Compressor

Ef14

15A

Main Relay

LEGR Valve, HO2S, EVAP Canister Purge Solenoid, CMP Sensor

Ef15

15A

B+

Hazard Switch, Siren, Hood Contact Switch

Ef16

-

Spare

Not Used

Ef17

20A

Spare

Not Used

Ef18

15A

Spare

Not Used

Ef19

10A

Spare

Not Used

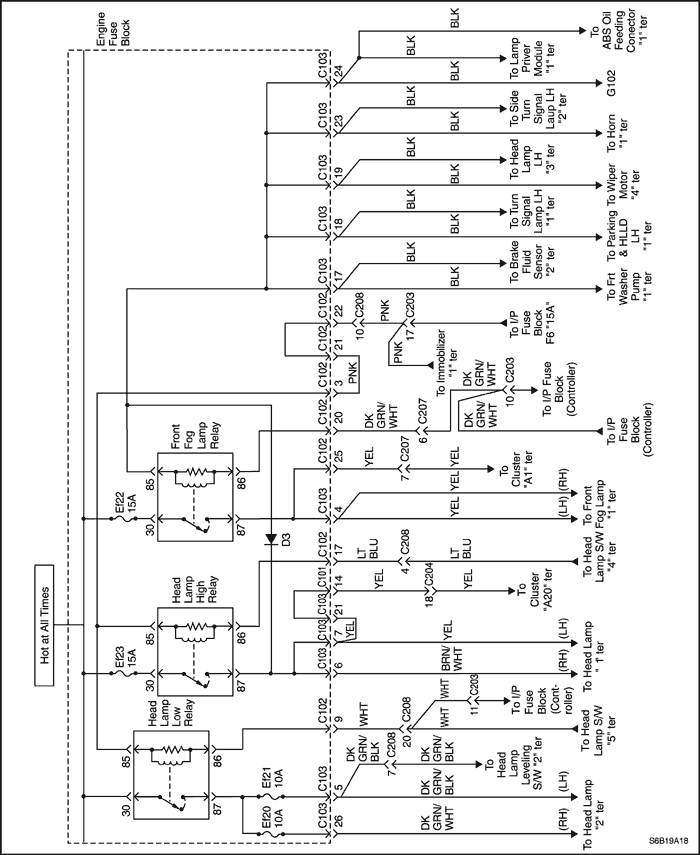

Ef20

10A

Headlamp Relay

Head Lamp (RH)

Ef21

10A

Headlamp Relay

Head Lamp (LH), Head Lamp Leveling Switch

Ef22

15A

B+

Front Fog Lamp Relay

Ef23

15A

B+

Headlamp HI Relay

Ef24

20A

B+

Cooling Fan LOW Relay

Ef25

10A

B+

A/C Compressor Relay

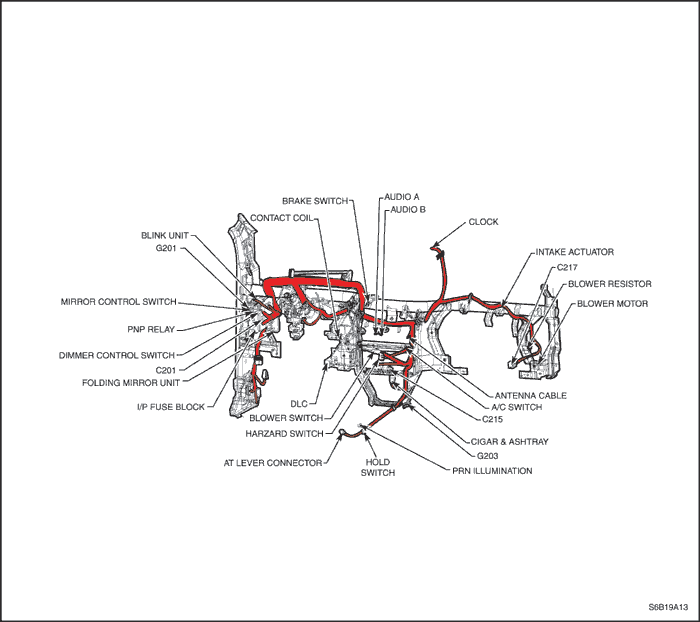

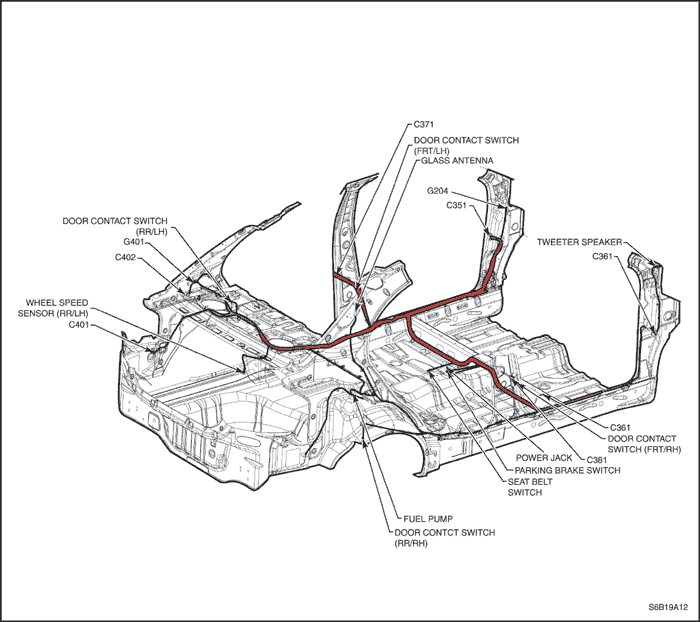

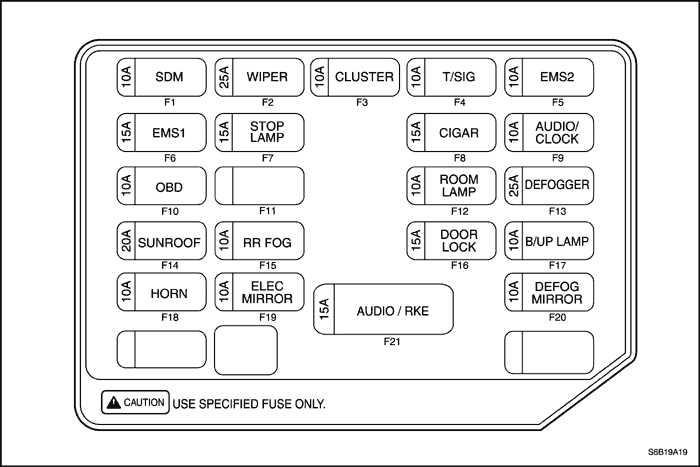

F1

10A

IGN 1

SDM

F2

25A

IGN 1

Wiper Switch, Wiper Motor

F3

10A

IGN 1

Brake Switch, Cluster, Anti-theft Module

F4

10A

IGN 1

Hazard Switch

F5

10A

IGN 1

Stop Lamp Siwch

F6

15A

IGN 1

Engine Room Fuse Block, Rear HO2S (MR-140), TCM, VSS, Fuel Pump

F7

15A

B+

Brake Switch

F8

15A

ACC

Cigar Lighter, Power Jack

F9

10A

ACC

Audio, Glove Box S/W, Clock

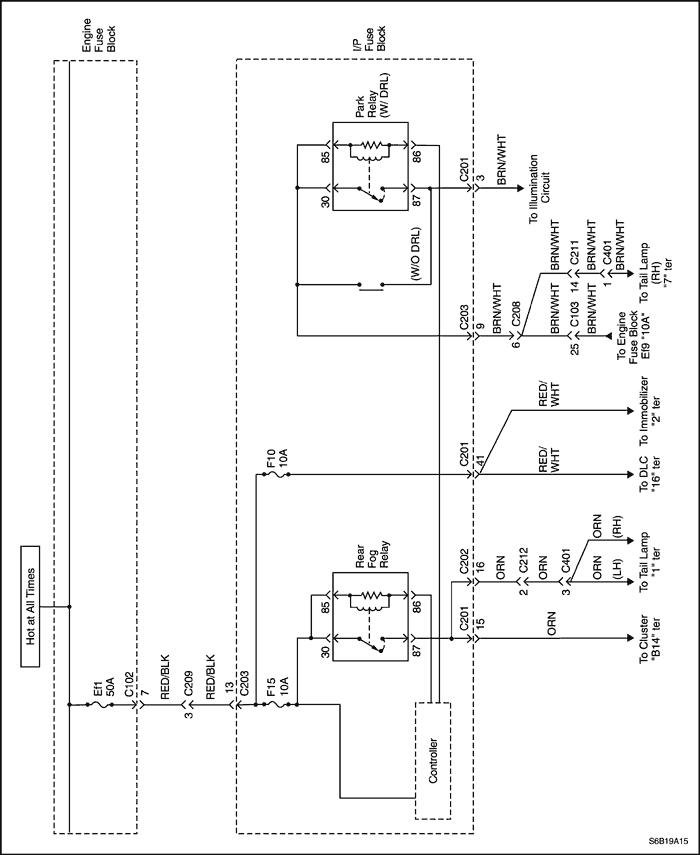

F10

10A

B+

DLC, Immobilizer

F11

-

B+

-

F12

10A

B+

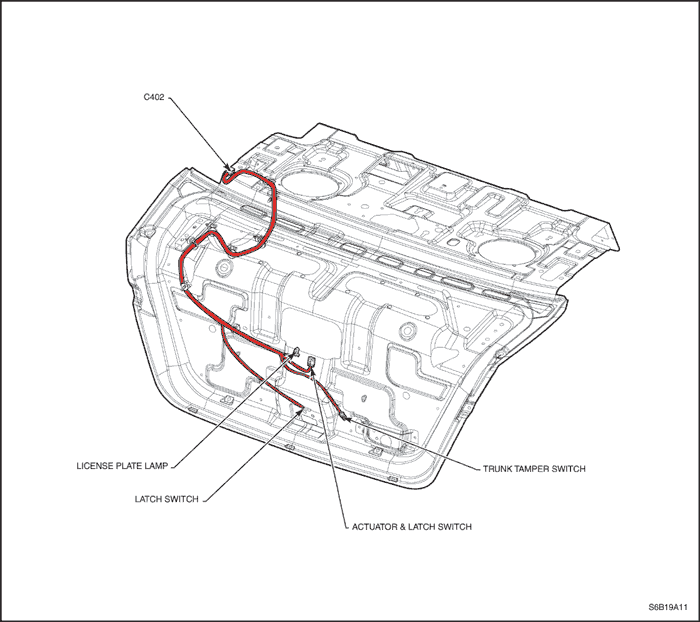

Trunk Room Lamp, Trunk Open Switch, Folding Mirror Unit, Cluster, Room Lamp

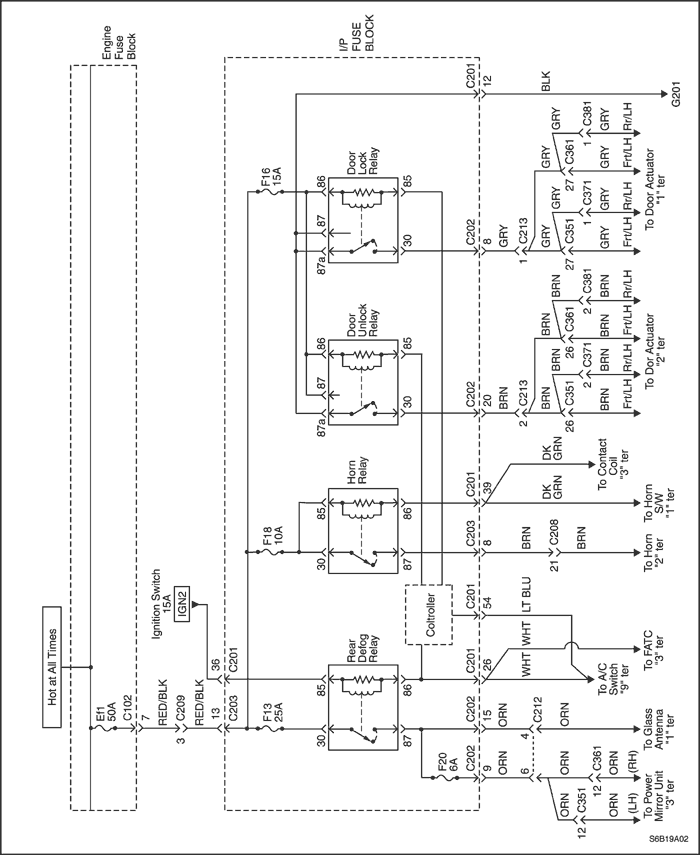

F13

25A

B+

Rear Defog Relay

F14

20A

B+

Sunroof Module

F15

15A

B+

Rear Fog Relay

F16

15A

B+

Door Lock/ Unlock Relay

F17

10A

IGN 2

PNP Switch, Reverse Lamp Switch

F18

10A

B+

Horn Relay

F19

10A

IGN 2

Mirror Control Switch, FATC, Room Lamp, A/C Switch

F20

10A

Rear Defog Relay

A/C Switch, Power Mirror Unit

F21

15A

B+

A/C Switch, FATC, Clock, Power Mirror Unit, Audio, Anti-theft Module, Key Reminder S/W, Key Illumination
