26. ANTI LOCK BRAKE SYSTEM (ABS)

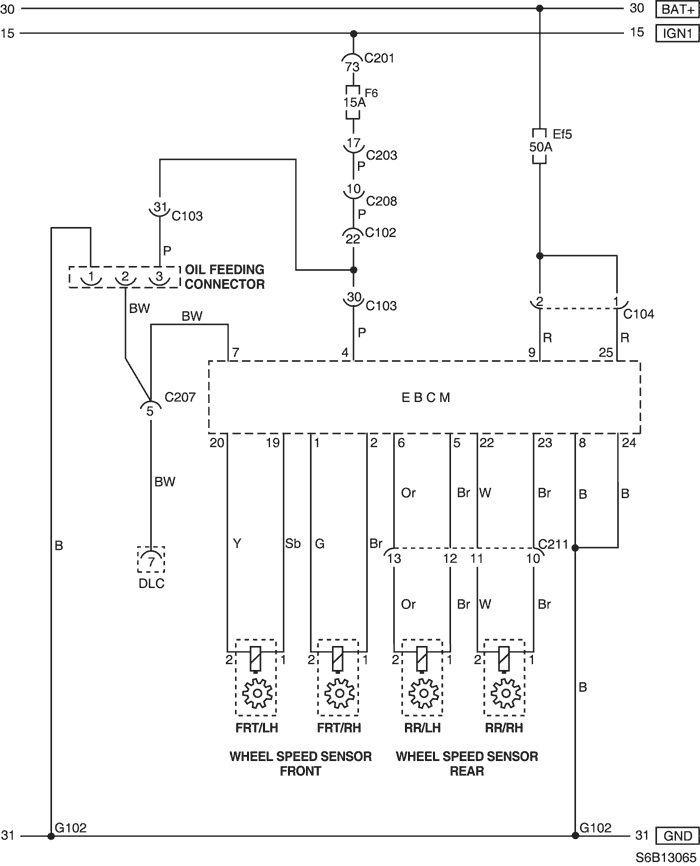

1) POWER SUPPLY, WHEEL SPEED SENSOR & OIL FEEDING CONNECTOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C104 (2 Pin, Colorless) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C208 (20 Pin, Yellow) | Front - I.P | Front TCM |
| C211 (15 Pin, Yellow) | Front - Floor | Under Left A Pillar |
| G102 | Front | Behind Left Headlamp |

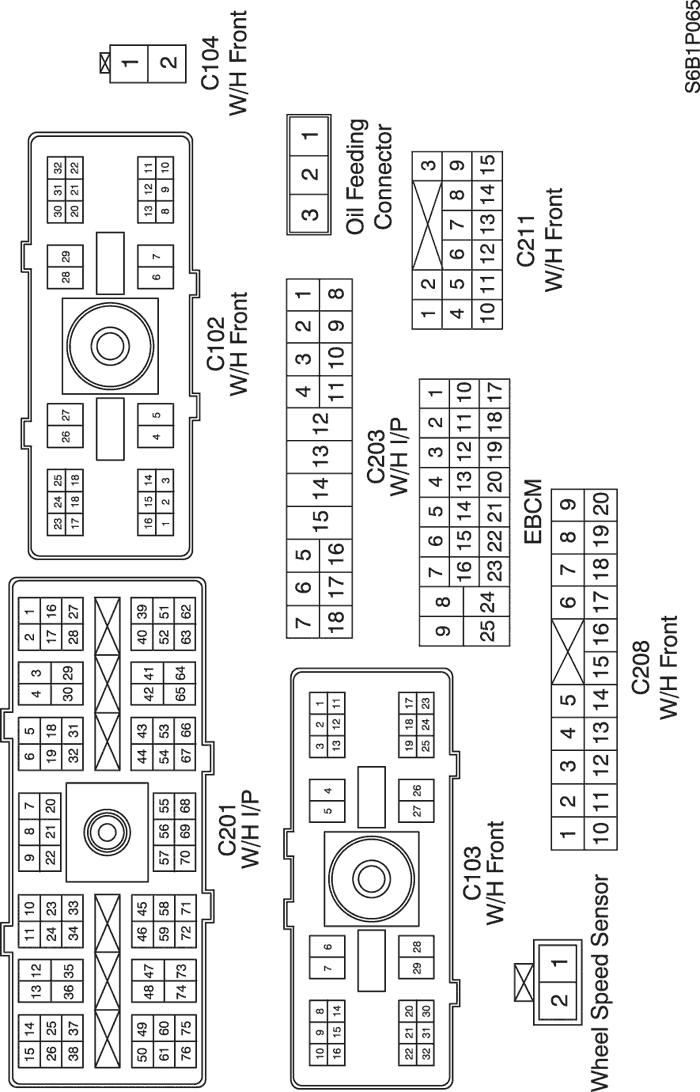

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

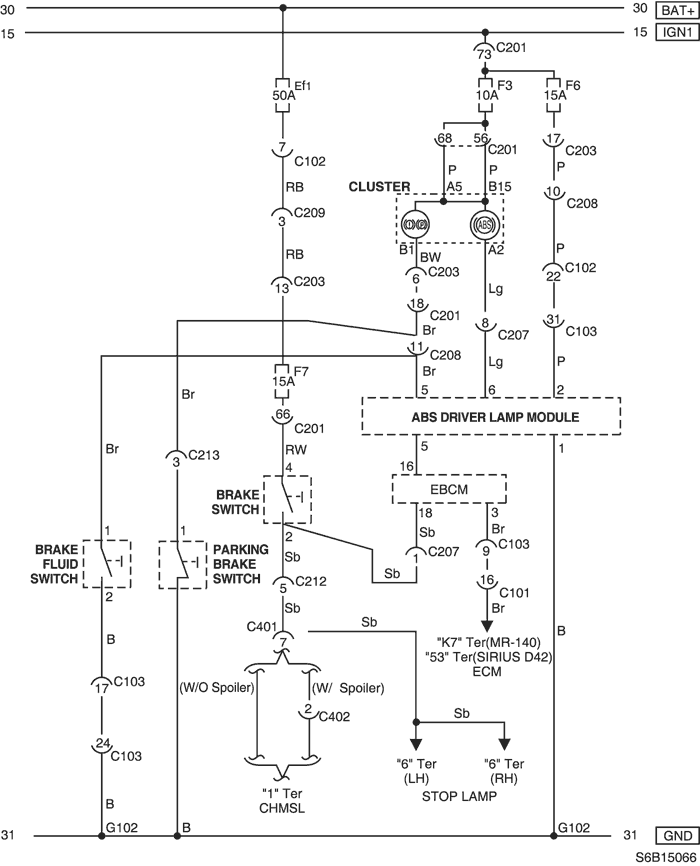

2) ABS DRIVER LAMP MODULE, PARKING BRAKE, BRAKE FLUID SWITCH & WARNING(ABS,BRAKE)LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C207 (12 Pin, Gray) | Front - I.P | Below I.P Fuse Block |
| C208 (20 Pin, Yellow) | Front - I.P | Front TCM |
| C212 (11 Pin, Blue) | I.P - Floor | Under Left A Pillar |
| C402 (6 Pin, White) | Trunk Lid - Floor | Below Back Shelf Panel |
| G102 | Front | Behind Left Headlamp |

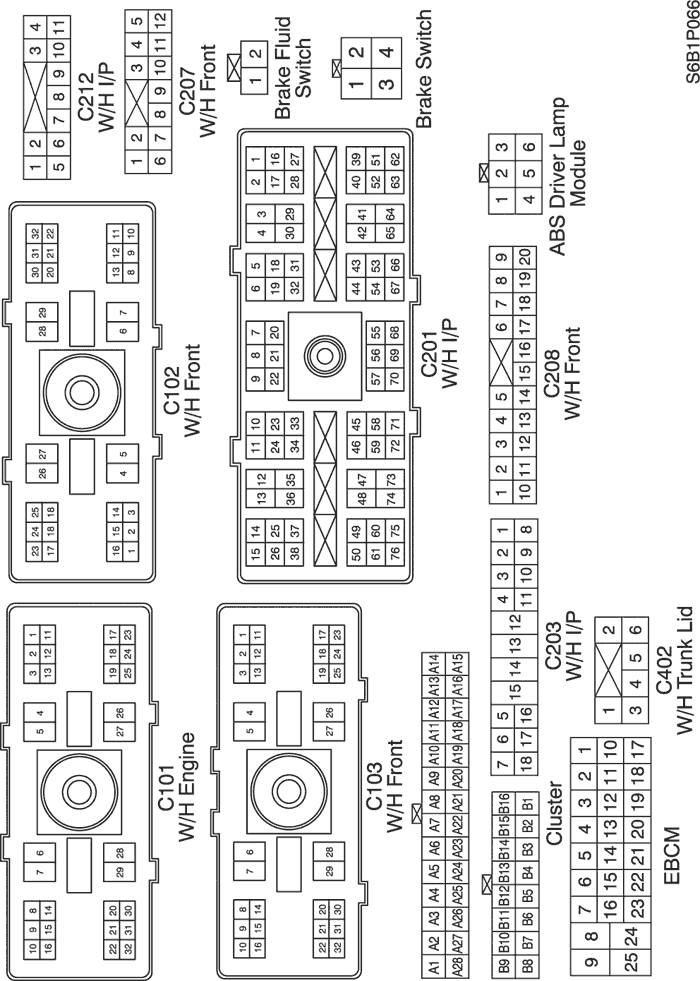

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
