Electrical Wiring Diagram 2006 Kalos 27. AIR BAG (SDM : SENSING & DIAGNOSTIC MODULE)

Aveo

To Previous Page

To Next Page

GMDE Start Page

Load static TOC

Load dynamic TOC

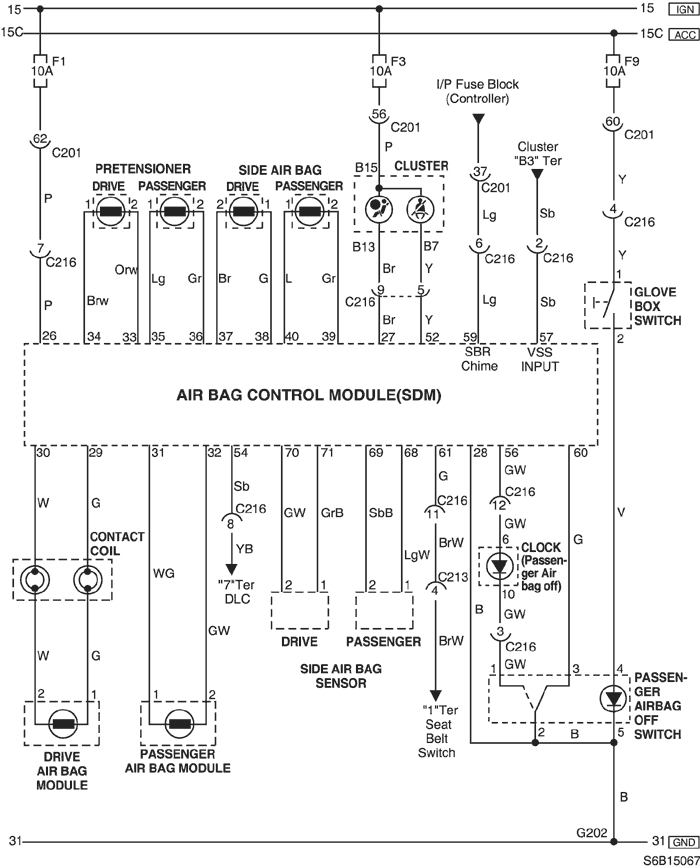

27. AIR BAG (SDM : SENSING & DIAGNOSTIC MODULE)

Display graphic

Translations of text in graphics

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
C201 (76 Pin, Black)	I.P - I.P Fuse Block	I.P Fuse Block
C213 (20 Pin, White)	I.P - Floor	Under Left A Pillar
C216 (12 Pin, White)	Air Bag - I.P	Behind Airconditioner
G202	Air Bag	Upper Mirror Control Switch

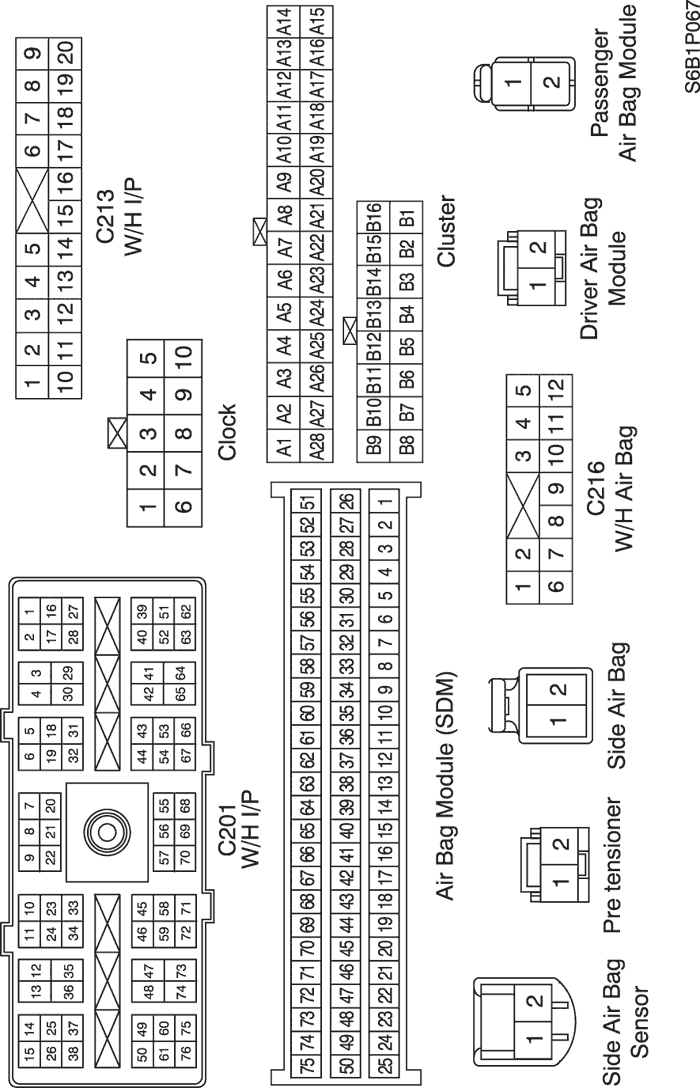

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphic

Translations of text in graphics

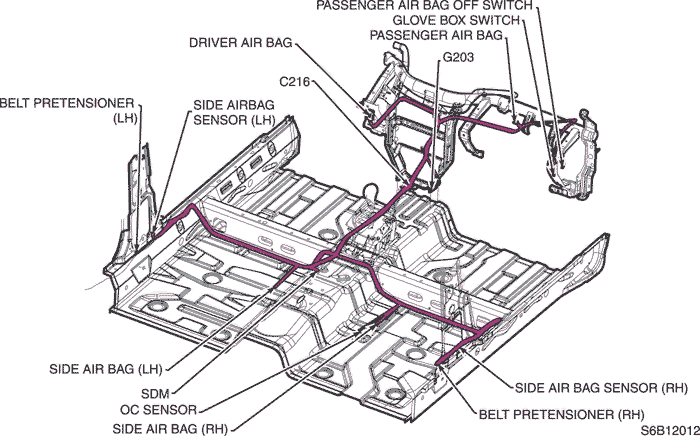

c. POSITION OF CONNECTORS AND GROUNDS

W/H AIR BAG

Display graphic

Translations of text in graphics

W/H I/P

Display graphic

Translations of text in graphics
