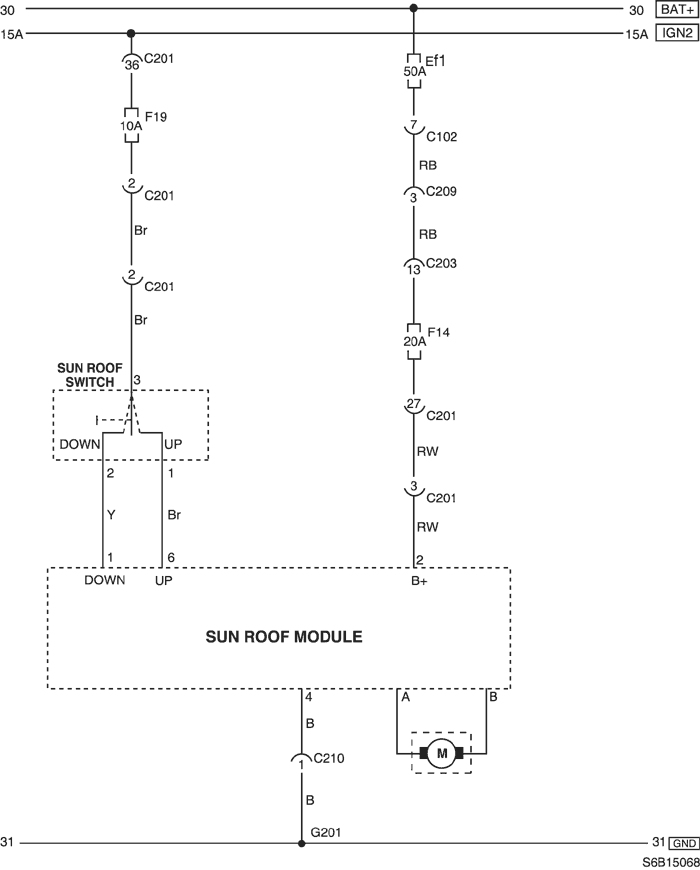

28. SUN ROOF CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C209 (4 Pin, White)Front - I.PFront TCM
C210 (10 Pin, White)Roof - I.PBelow I.P Fuse Block
G201I.PUpper Mirror Control Switch

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics

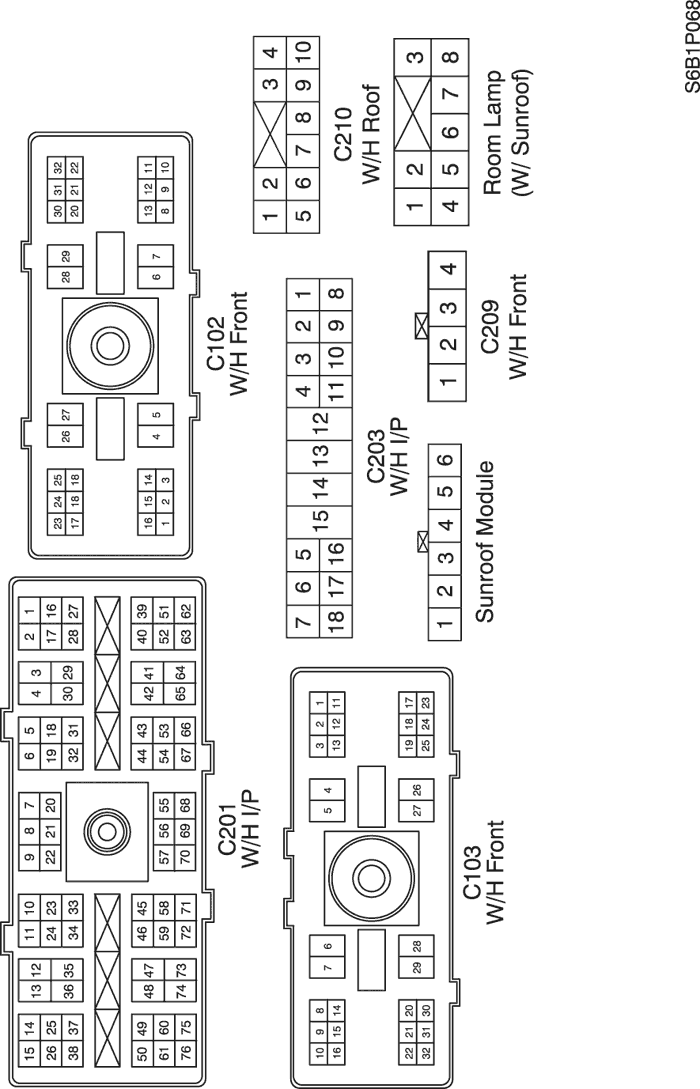

c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
