3. ECM (ENGINE CONTROL MODULE) : HV - 240

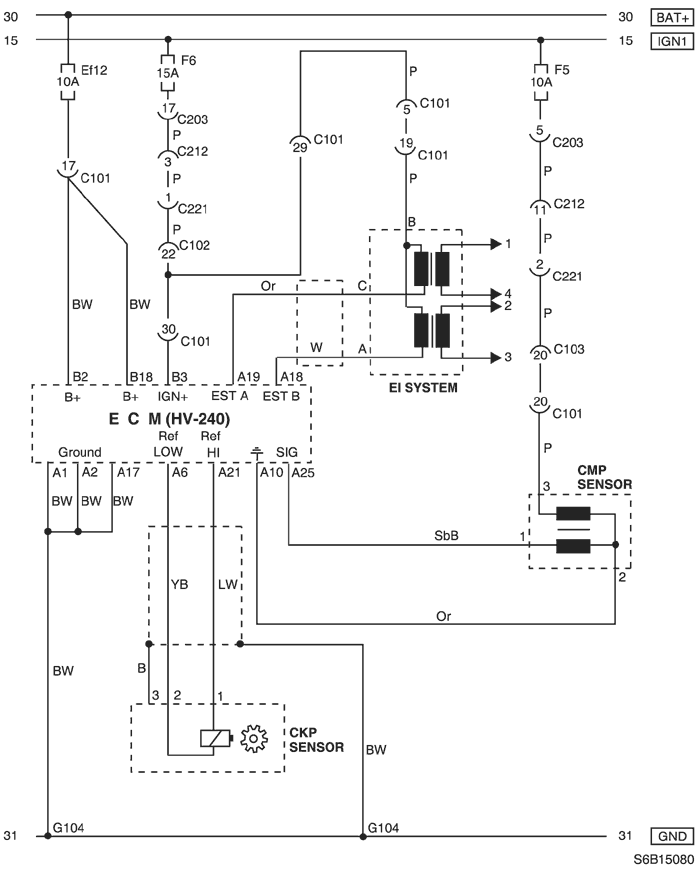

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM, CKP SENSOR & CMP SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C221 (11 Pin, Blue) | Front - Floor | Under Left A Pillar |
| G104 | Battery | Next to Start Motor |

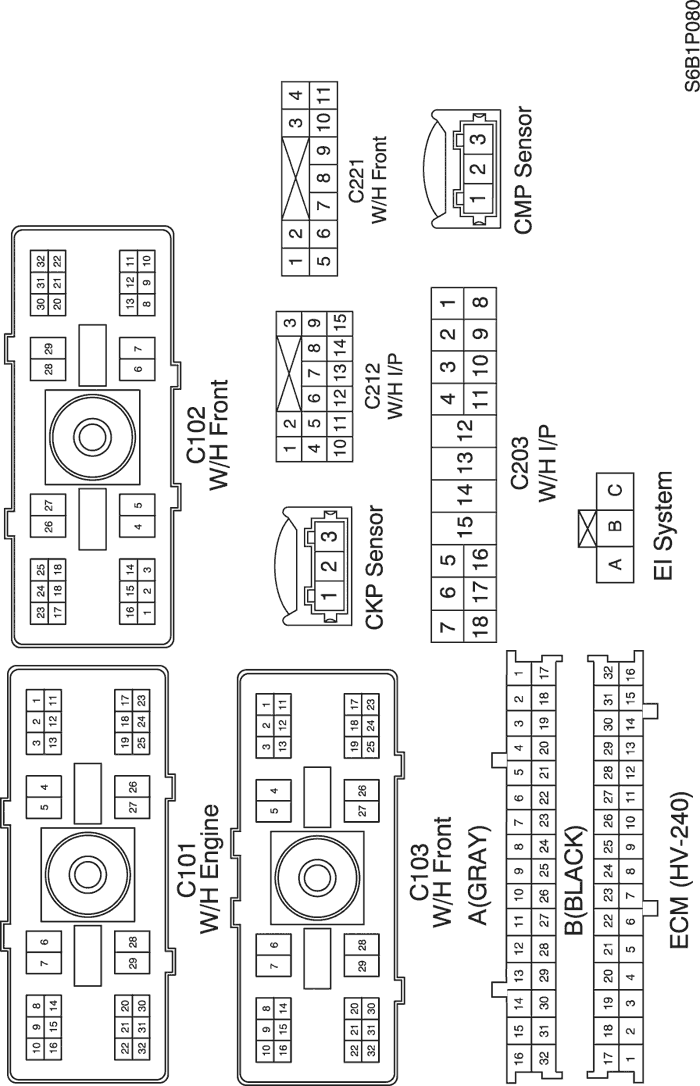

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

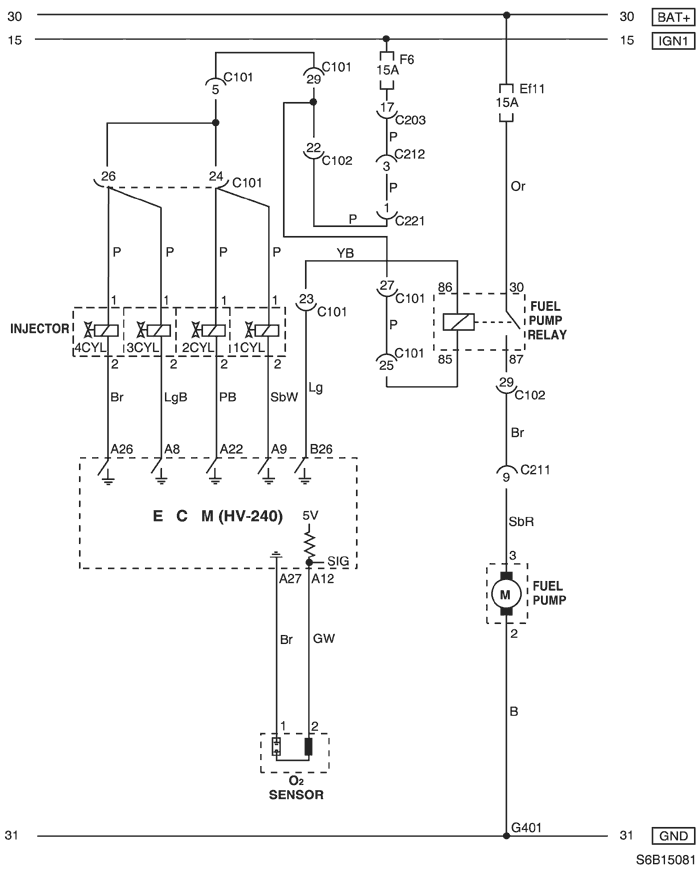

2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C211 (15 Pin, Yellow) | Front - Floor | Under Left A Pillar |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C221 (11 Pin, Blue) | Front - Floor | Under Left A Pillar |
| G401 | Floor | Upper Back Shelf Panel |

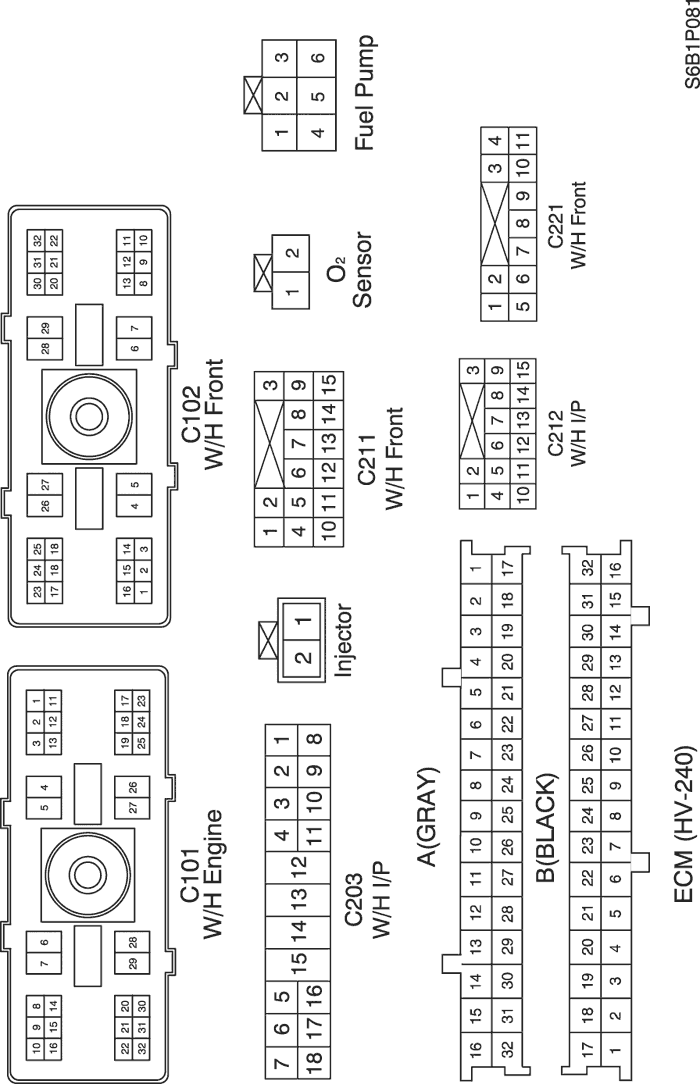

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

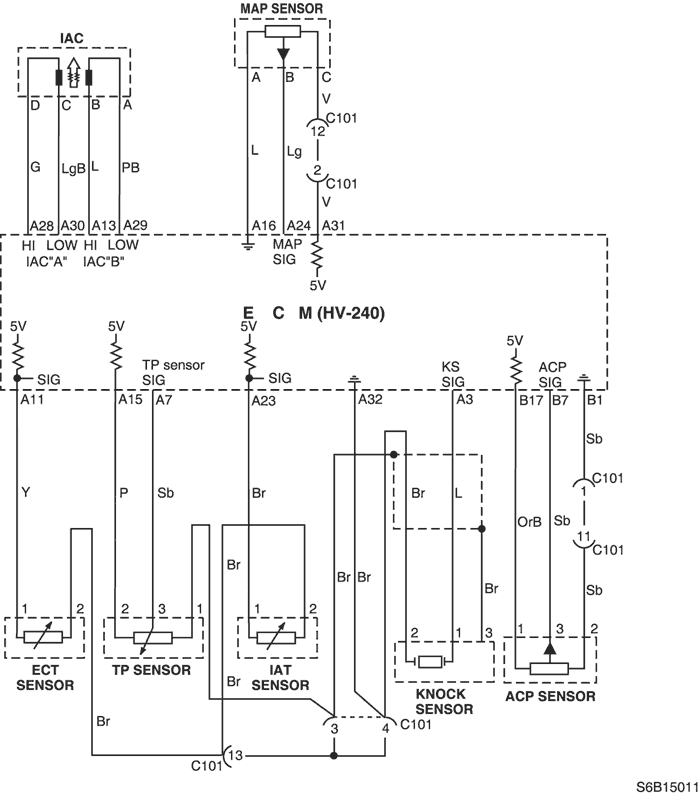

3) IAC & SENSOR (MAP, ECT, TP, IAT, KNOCK, ACP) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |

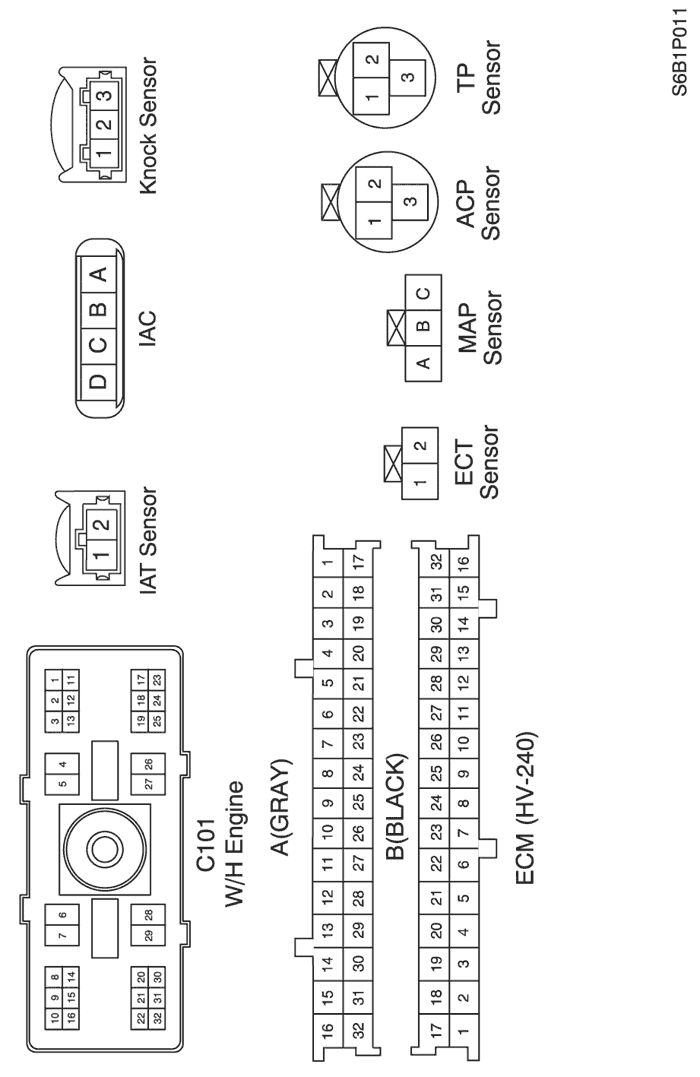

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

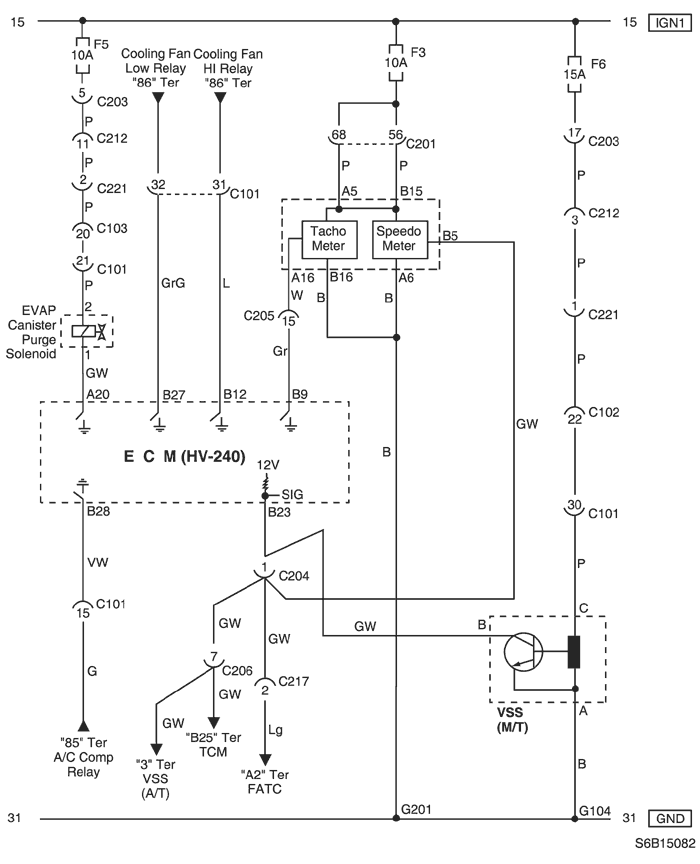

4) EVAP CANISTER PURGE SOLENOID, CLUSTER & VSS CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C206 (10 Pin, White) | TCM - I.P | Below TCM |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C221 (11 Pin, Blue) | Front - Floor | Under Left A Pillar |
| G104 | Battery | Next to Start Motor |
| G201 | I.P | Upper Mirror Control Switch |

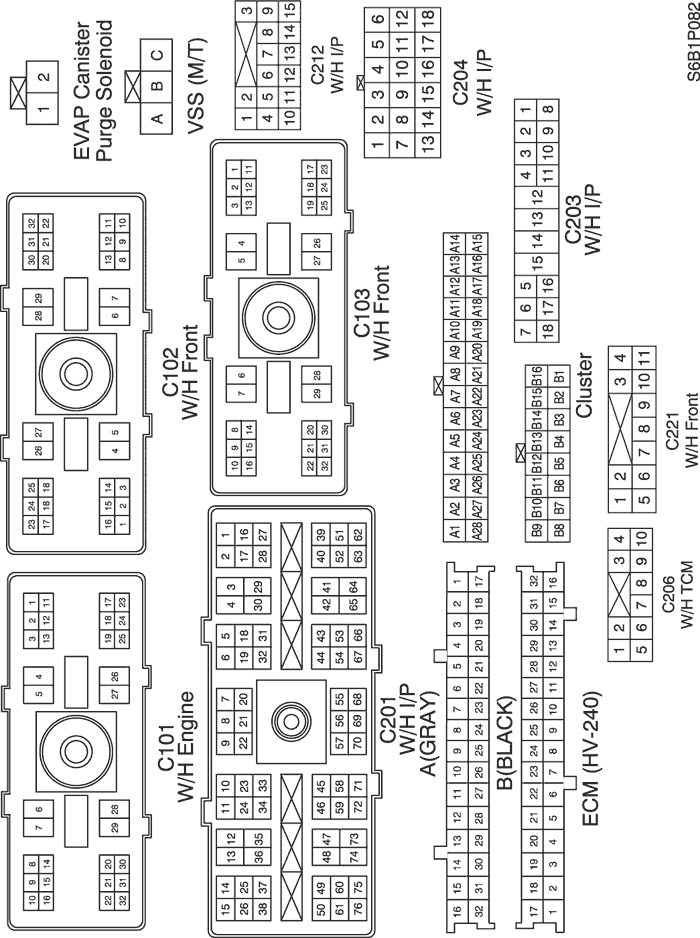

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

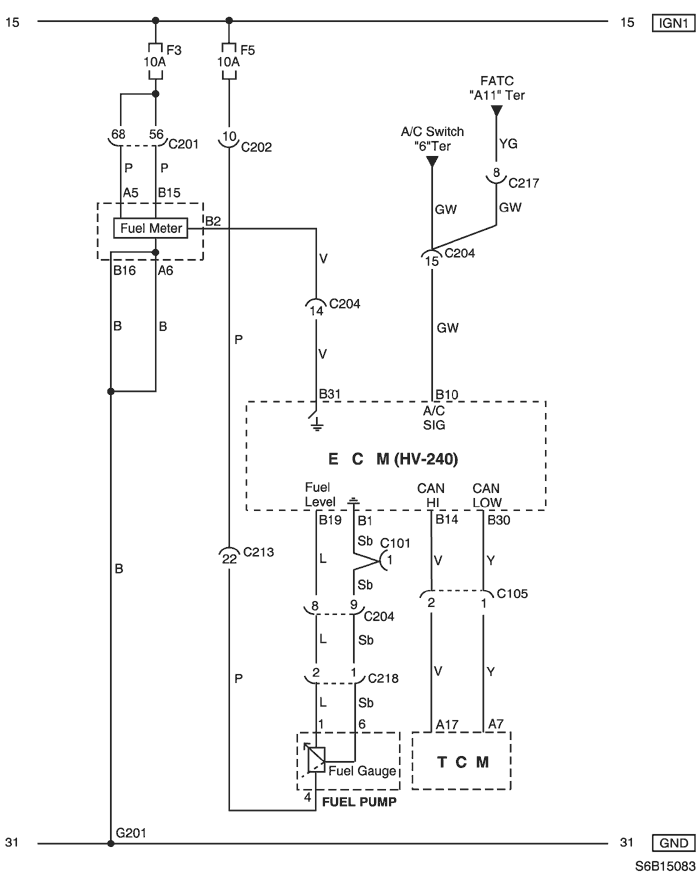

5) CLUSTER, FUEL PUMP & TCM CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C105 (3 Pin, Gray) | Engine - TCM | Next to EBCM |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C202 (20 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C213 (22 Pin, Yellow) | I.P - Floor | Below I.P Fuse Block |
| C218 (20 Pin, White) | I.P - Floor | Under Left A Pillar |
| G201 | I.P | Upper Mirror Control Switch |

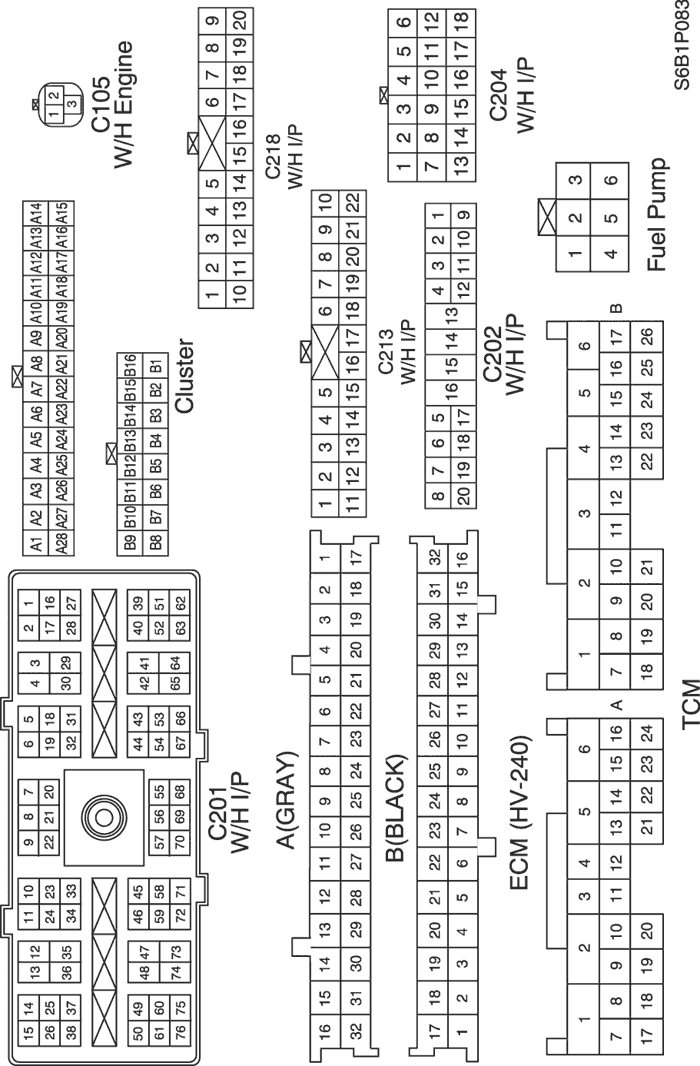

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

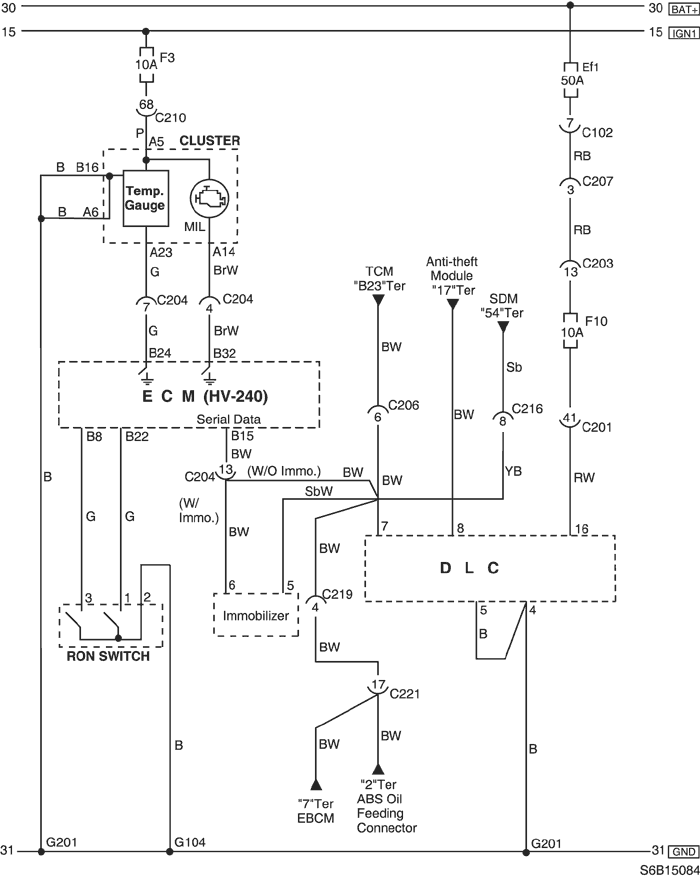

6) DLC, MIL & RON SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C206 (10 Pin, White) | TCM - I.P | Below TCM |
| C207 (4 Pin, Black) | Front - I.P | Below I.P Fuse Block |
| C216 (12 Pin, White) | Air Bag - I.P | Behind Airconditioner |
| C219 (8 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C221 (11 Pin, Blue) | Front - Floor | Under Left A Pillar |
| G104 | Battery | Next to Start Motor |
| G201 | I.P | Upper Mirror Control Switch |

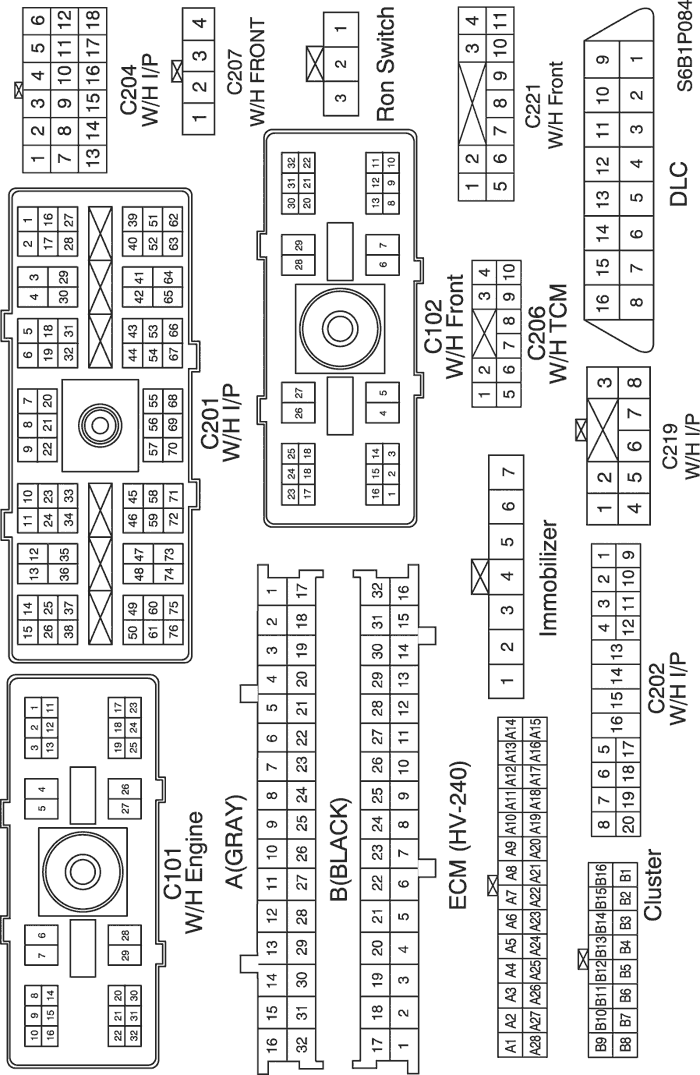

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
