Kalos/Aveo
To Previous PageTo Next Page
GMDE Start PageLoad static TOCLoad dynamic TOCHelp?



2. ECM (ENGINE CONTROL MODULE) : MR - 140

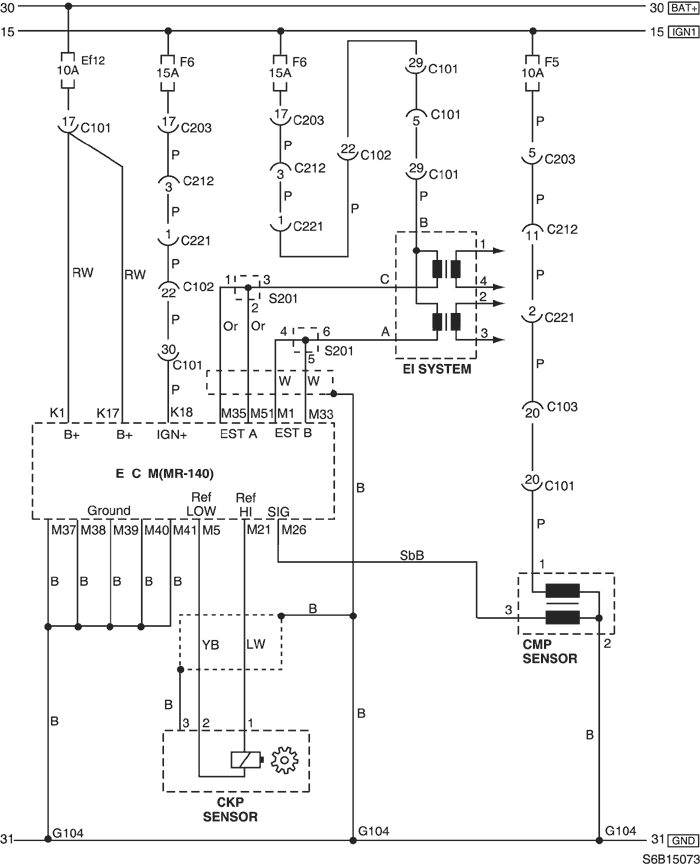

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM, CKP SENSOR & CMP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C212 (15 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C221 (11 Pin, Blue)Front - FloorUnder Left A Pillar
S201EngineUpper Co-Driver Leg Room
G104BatteryNext to Start Motor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

S201

Display graphicTranslations of text in graphics

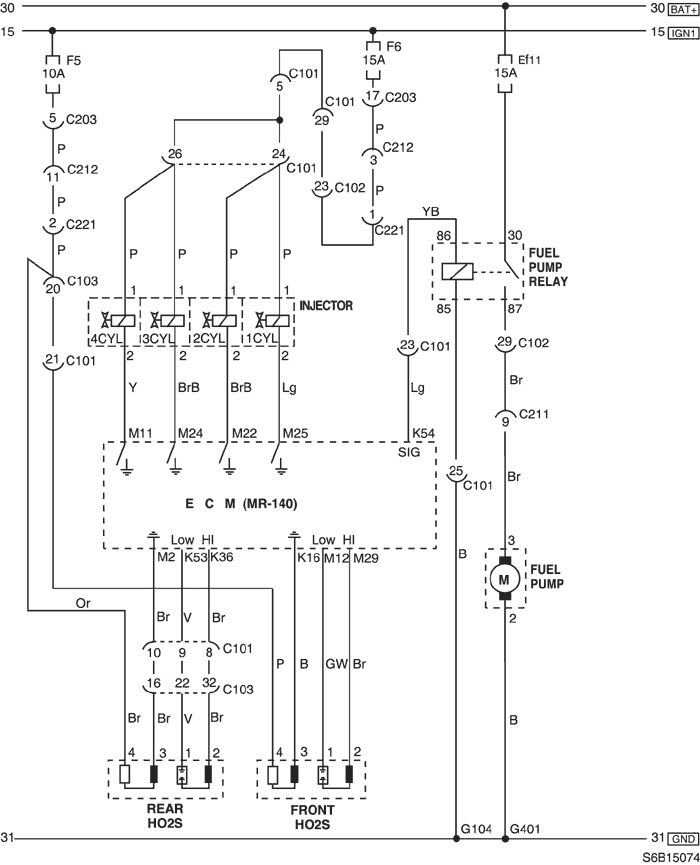

2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUIT : EXCEPT EURO IV

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C211 (15 Pin, Yellow)Front - FloorUnder Left A Pillar
C212 (15 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C221 (11 Pin, Blue)Front - FloorUnder Left A Pillar
G104BatteryNext to Start Motor
G401FloorUpper Back Shelf Panel

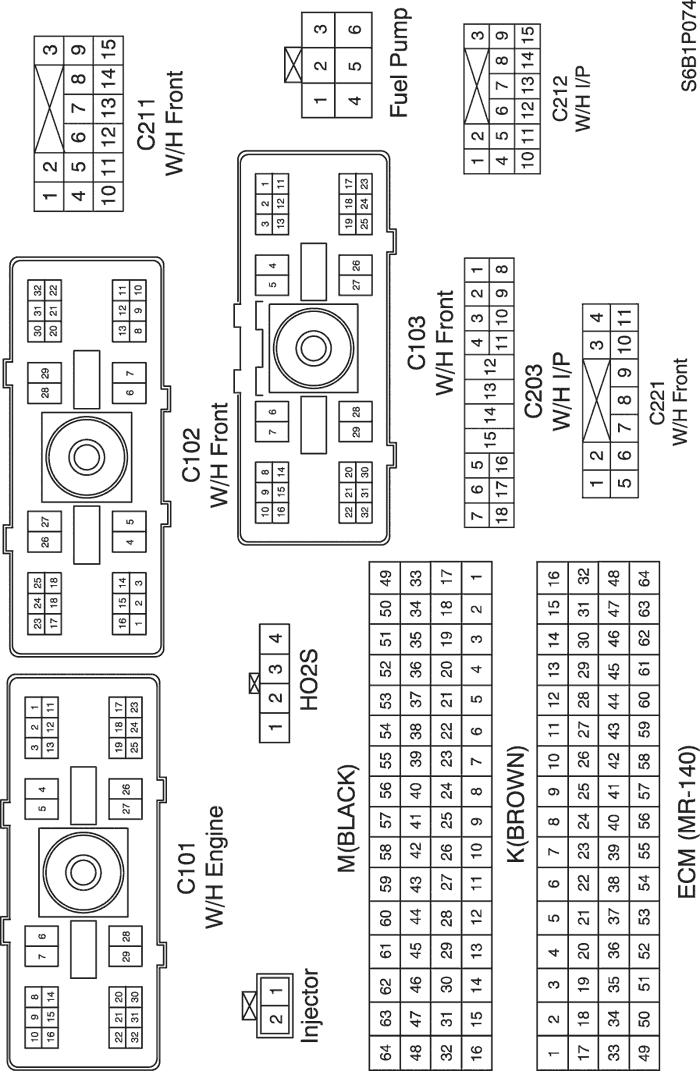

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

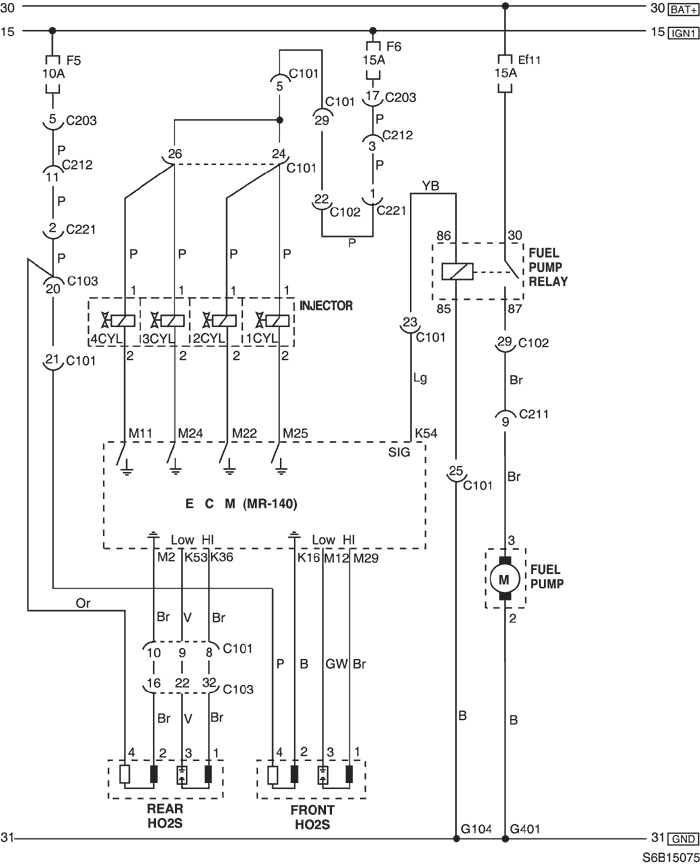

3) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUIT : EURO IV

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C211 (15 Pin, Yellow)Front - FloorUnder Left A Pillar
C212 (15 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C221 (11 Pin, Blue)Front - FloorUnder Left A Pillar
G104BatteryNext to Start Motor
G401FloorUpper Back Shelf Panel

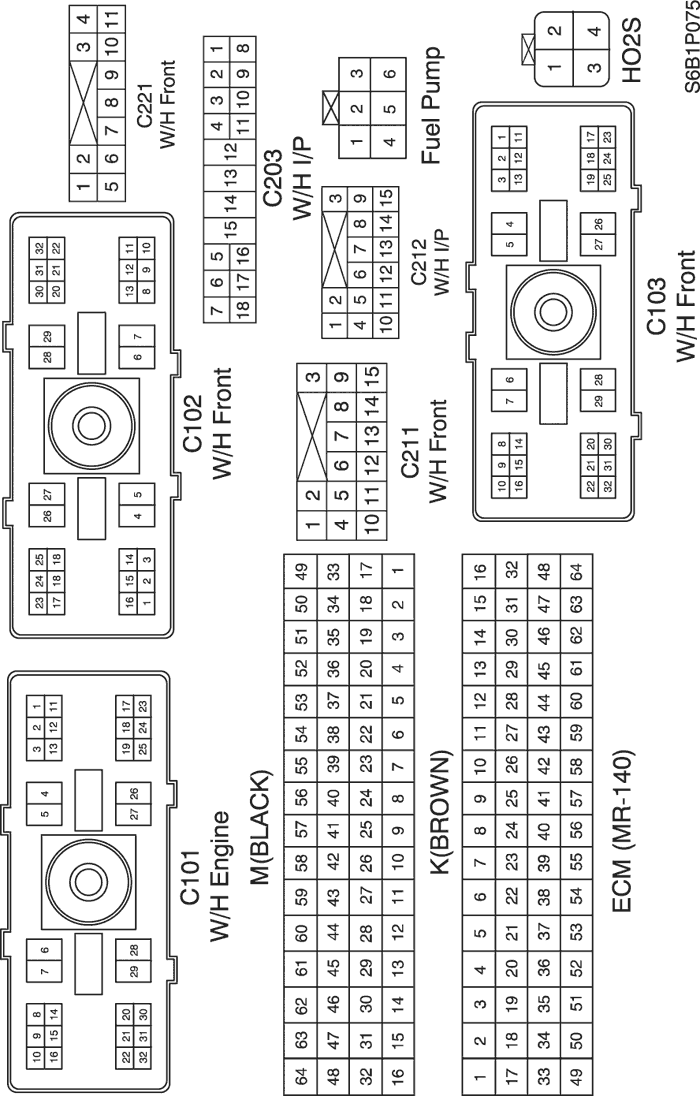

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

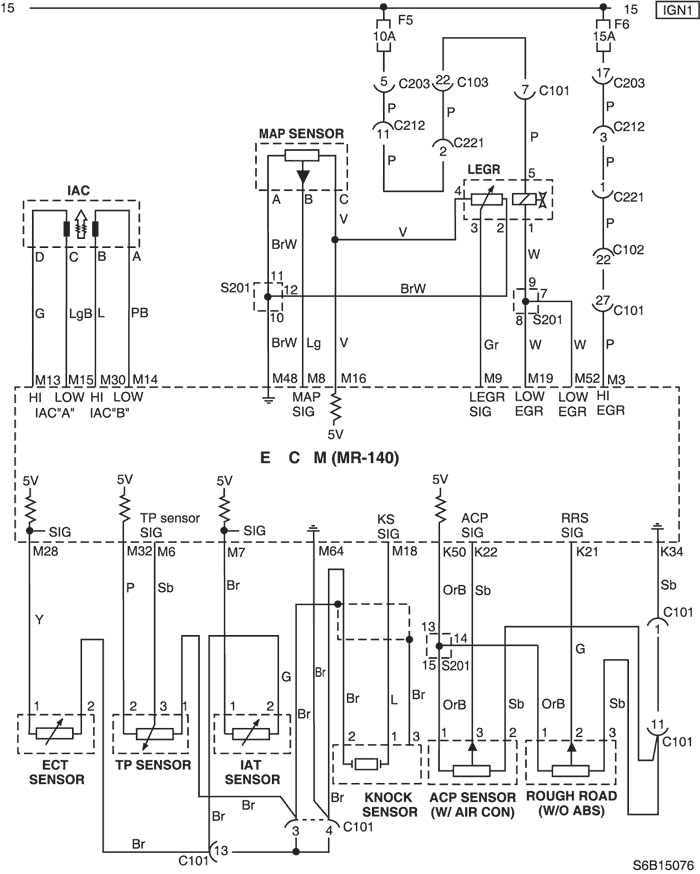

4) IAC, SENSOR (MAP, ECT, TP, KNOCK, ACP), LEGR & ROUGH ROAD CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C212 (15 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C221 (11 Pin, Blue)Front - FloorUnder Left A Pillar
S201EngineUpper Co-Driver Leg Room

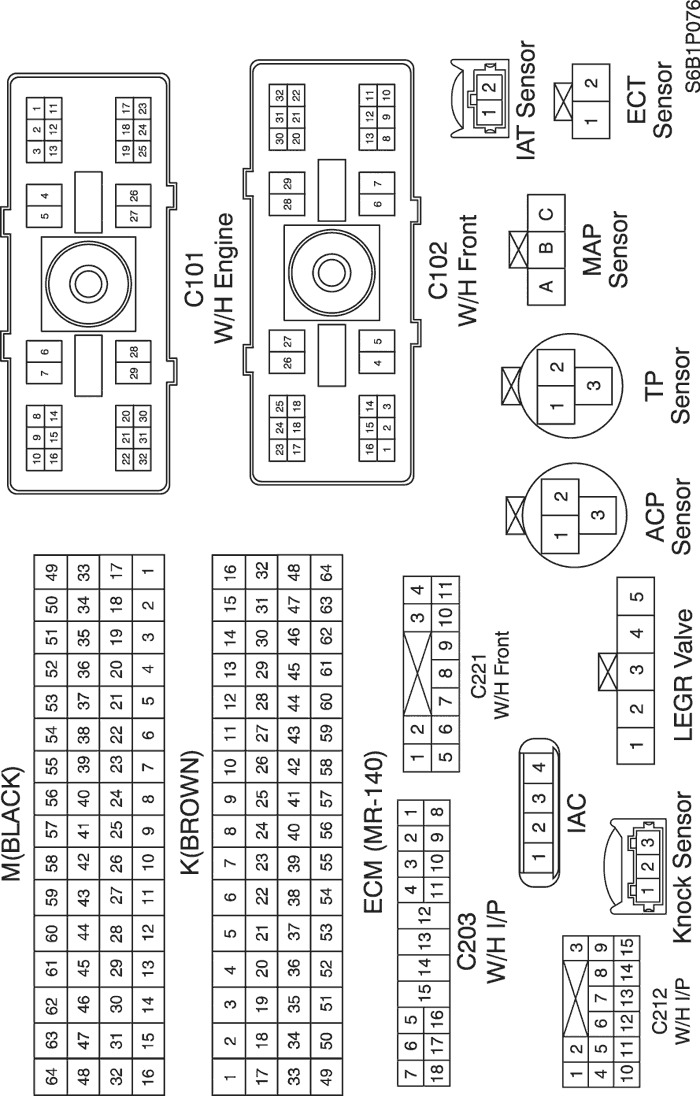

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S201

Display graphicTranslations of text in graphics

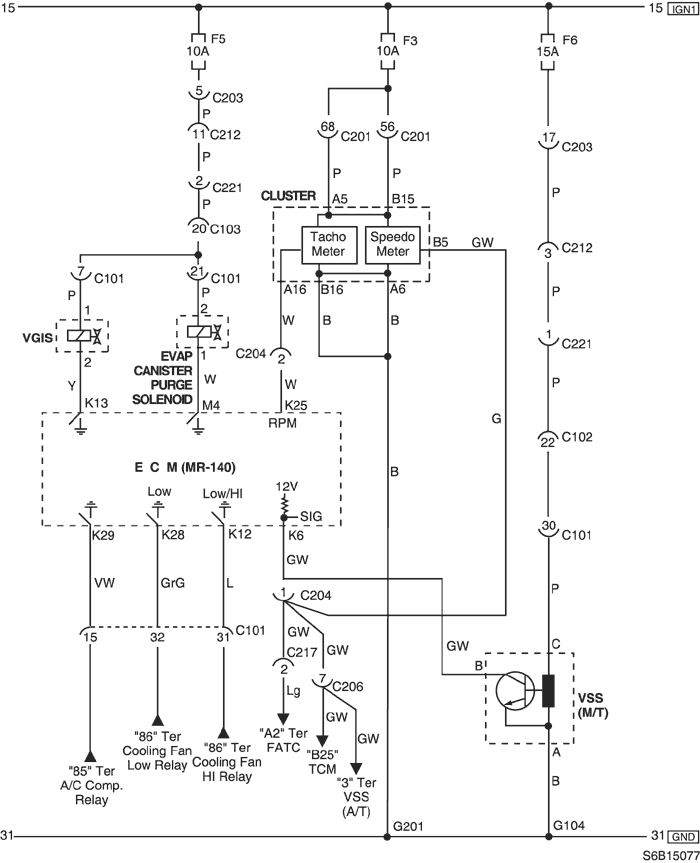

5) EVAP CANISTER PURGE SOLENOID, CLUSTER & VSS CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Co-Driver Leg Room
C207 (12 Pin, Gray)Front - I.PBelow I.P Fuse Block
C212 (15 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C217 (16 Pin, White)I.P - FATCUnder Blower Motor
C221 (11 Pin, Blue)Front - FloorUnder Left A Pillar
G104BatteryNext to Start Motor
G201I.PUpper Mirror Control Switch

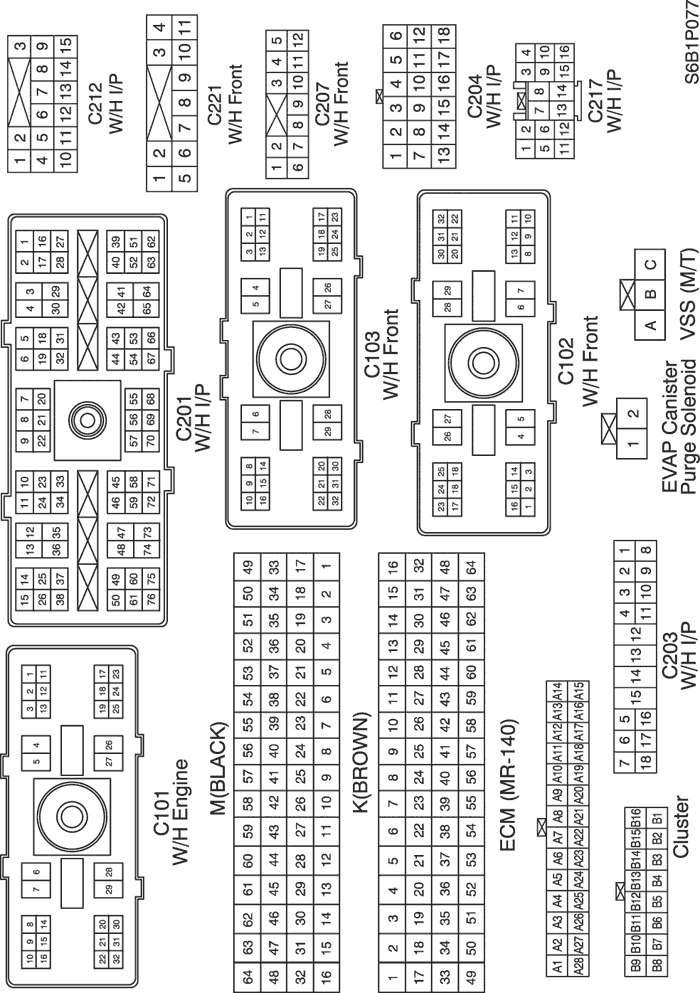

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

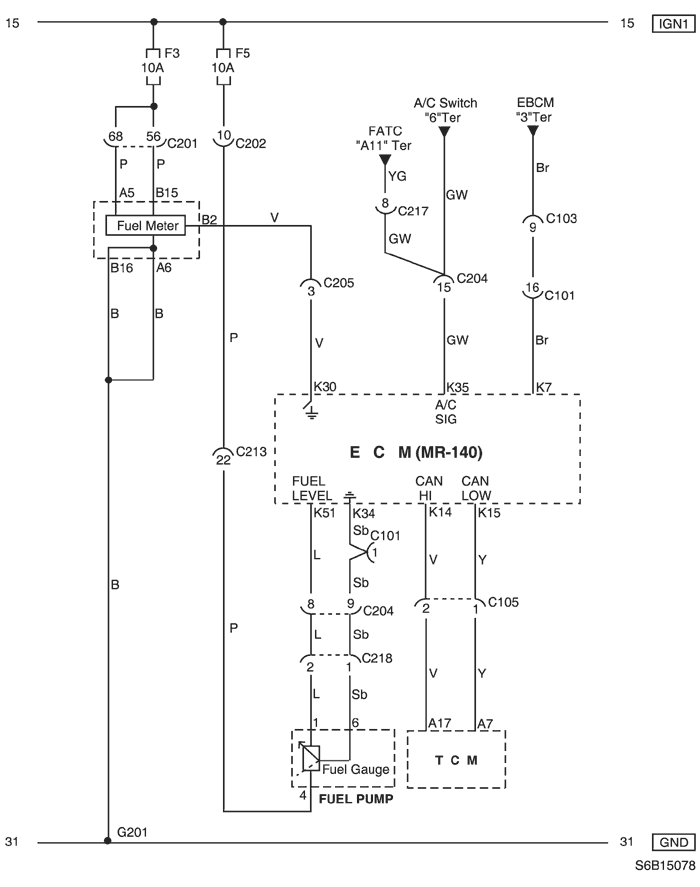

6) CLUSTER, FUEL PUMP & TCM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (32 Pin, Black)Engine - Engine Fuse BlockEngine Fuse Block
C103 (32 Pin, Brown)Front - Engine Fuse BlockEngine Fuse Block
C105 (3 Pin, Gray)Engine - TCMNext to EBCM
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C202 (20 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Co-Driver Leg Room
C213 (22 Pin, Yellow)I.P - FloorBelow I.P Fuse Block
C218 (20 Pin, White)I.P - FloorUnder Left A Pillar
G201I.PUpper Mirror Control Switch

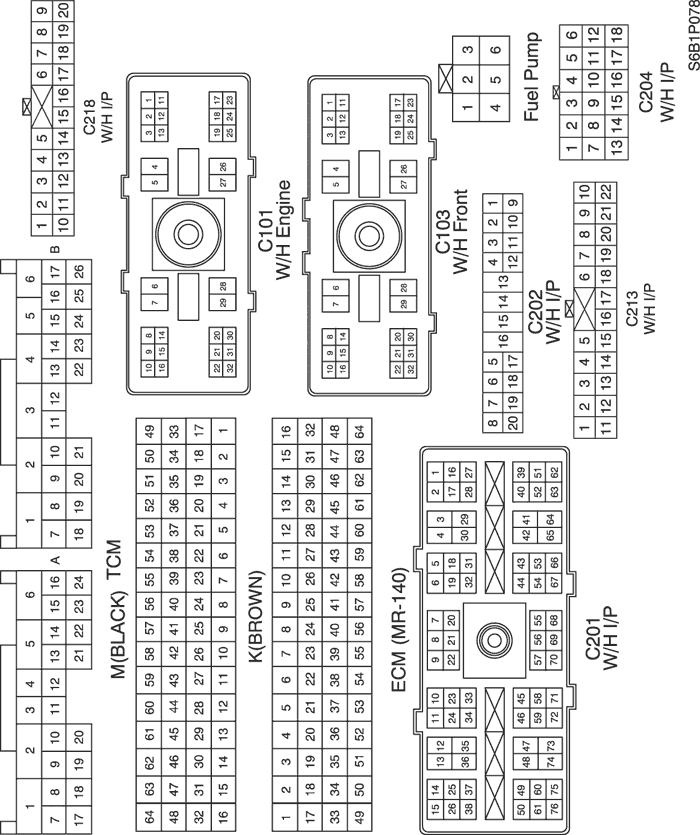

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

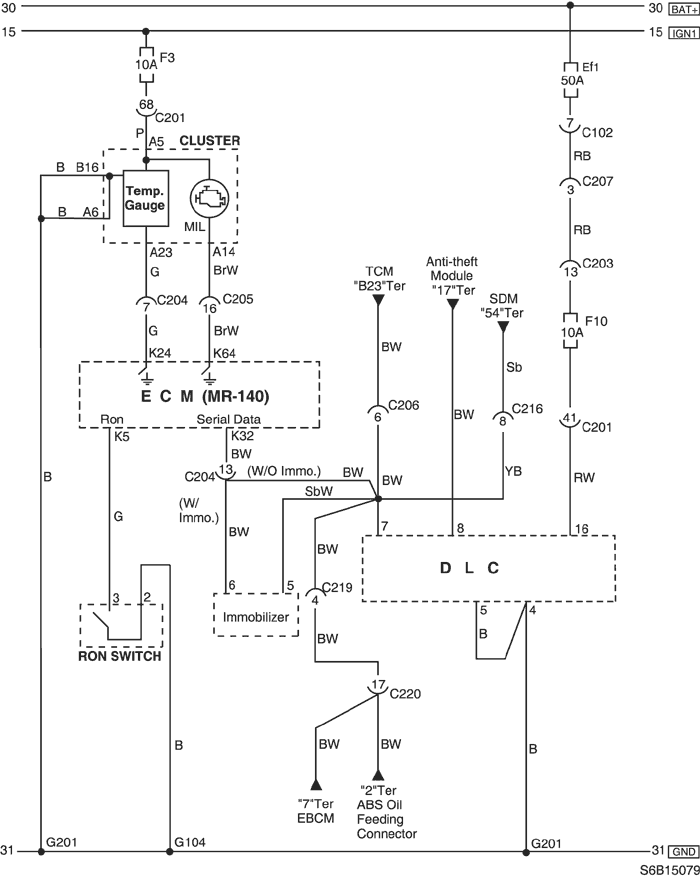

7) DLC, MIL & RON SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (32 Pin, Gray)Front - Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P - I.P Fuse BlockI.P Fuse Block
C203 (18 Pin, White)I.P - I.P Fuse BlockI.P Fuse Block
C204 (18 Pin, Gray)I.P - EngineUpper Co-Driver Leg Room
C206 (10 Pin, White)TCM - I.PBelow TCM
C207 (4 Pin, Black)Front - I.PBelow I.P Fuse Block
C216 (12 Pin, White)Air Bag - I.PBehind Airconditioner
C219 (8 Pin, Blue)I.P - FloorBelow I.P Fuse Block
C221 (11 Pin, Blue)Front - FloorUnder Left A Pillar
G104BatteryNext to Start Motor
G201I.PUpper Mirror Control Switch

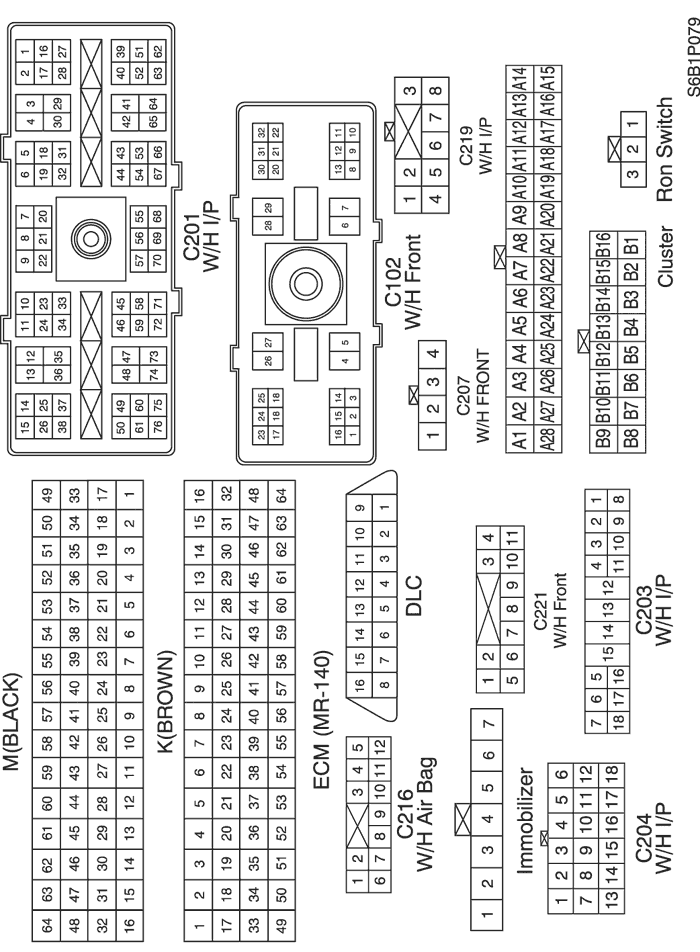

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
