SECTION 9O

BUMPERS AND FASCIAS

SPECIFICATIONS

Fastener Tightening Specifications

Application
N•m
Lb-Ft
Lb-In
Front Bumper Impact Bar Nuts
24
18
-
Front Wheel Well Screws
1.5
-
13
Luggage Compartment Fascia Bolts, Nuts
4
-
35
Mud Guard Screws
1.5
-
13
Rear Bumper Energy Absorber Nuts
24
18
-
Rear Upper Fascia Screws
1.5
-
13
Splash Shield Bolts
1.5
-
13
Splash Shield Nuts
1.5
-
13
Splash Shield Screws
1.5
-
13

MAINTENANCE AND REPAIR

On-Vehicle service


S6B59O01
Display graphicTranslations of text in graphics


Front Bumper Fascia

Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the front wheels. Refer to Section 2E, Tires and Wheels.
  3. Remove the screws, the bolts, the nuts, and the front wheel well splash shields.

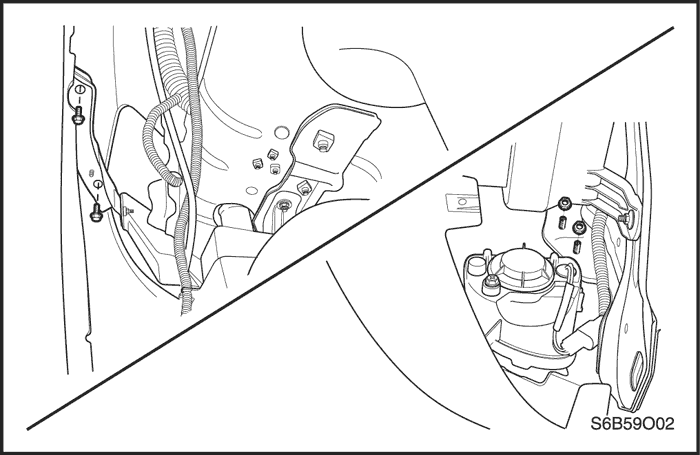

    4. S6B59O02
    Display graphicTranslations of text in graphics


  4. Remove the headlamps, the turn signal lamps, the side turn signal lamps and the front fog lamps. Refer to Section 9B, Lighting Systems.
  5. Remove the screws from underneath the fascia.
  6. Remove the nuts from the fascia

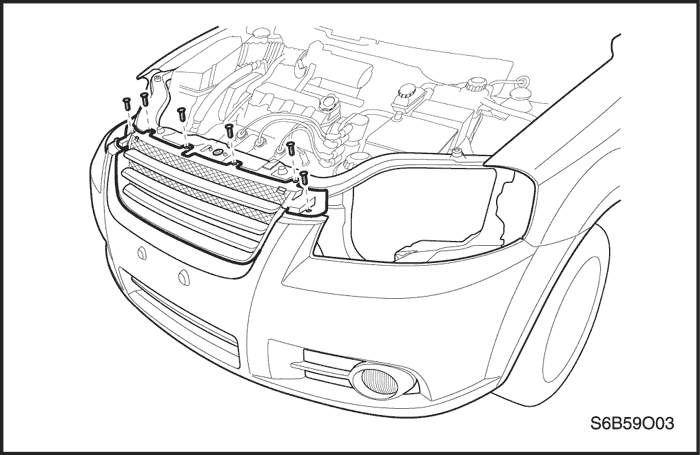

    7. S6B59O03
    Display graphicTranslations of text in graphics


  7. Remove the screws on the top of the fascia.
  8. Remove the front bumper fascia.

S6B59O03
Display graphicTranslations of text in graphics


Installation Procedure

    Notice : Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

  1. Install the bumper fascia.
  2. Install the screws on the top of the fascia.

    3. S6B59O02
    Display graphicTranslations of text in graphics


  3. Install the nuts behind the fascia.

    4. Tighten
    Tighten the front bumper impact beam nuts to 27 N•m (20 Ib-ft).

  4. Install the screws underneath the fascia.

    5. Tighten
    Tighten the frontwheelwell screws to 1.5 N•m(13 lb-in).

  5. Install the headlamps, the turn signal lamp, the side turn signal lamps, and the front fog lamps. Refer to Section 9B, Lighting Systems.

    6. S6B59O01
    Display graphicTranslations of text in graphics


  6. Install the front wheel well splash shields with the screws, the bolts, and the nuts.
  7. Install the front wheels. Refer to Section 2E, Tires and Wheels.

    8. Tighten
    Tighten the splash shield screws to 1.5 N•m(13 lb-in).
    Tighten the splash shield bolts to 1.5 N•m (13 lb-in).
    Tighten the splash shield nuts to 1.5 N•m (13 lb-in).

  8. Connect the negative battery cable.

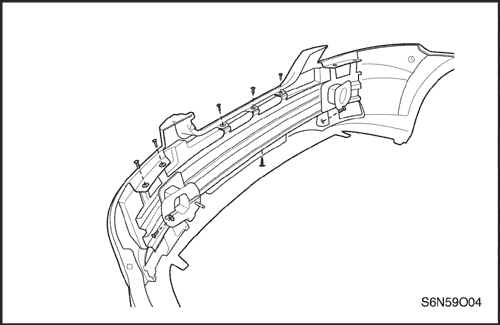

S6B59O04
Display graphicTranslations of text in graphics


Front Bumper Impact Beam

Removal Procedure

  1. Remove the front bumper fascia. Refer to "Front Bumper Fascia" in this section.
  2. Remove the front bumper impact beam.

S6B59O04
Display graphicTranslations of text in graphics


Installation Procedure

  1. Install the front bumper impact beam.
  2. Install the front bumper fascia. Refer to "Front Bumper Fascia" in this section.

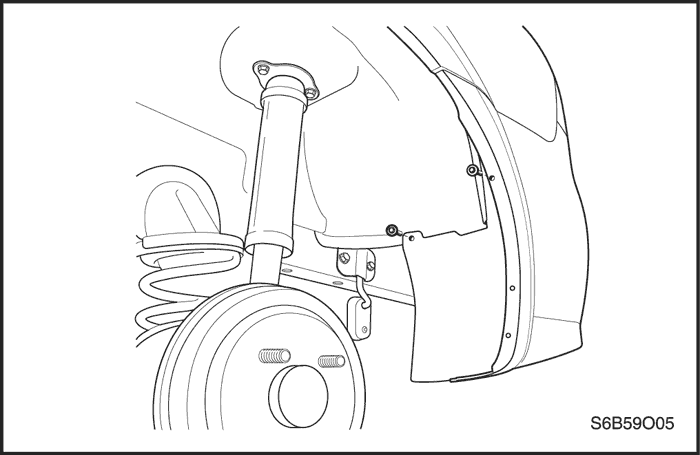

S6B59O05
Display graphicTranslations of text in graphics


Rear Bumper Fascia

Removal Procedure

  1. Remove the rear wheels. Refer to Section 2E, Tires and Wheels.
  2. Remove the screws and the mud guards.
  3. Remove the screws and the splash shields.
  4. Remove the screws behind the fascia.

    5. S6B59O06
    Display graphicTranslations of text in graphics


  5. Remove the nuts behind the rear bumper energy absorber.

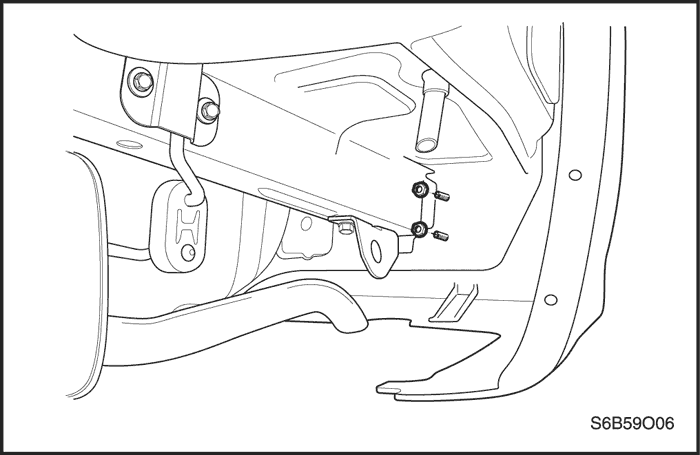

    6. S6B59O07
    Display graphicTranslations of text in graphics

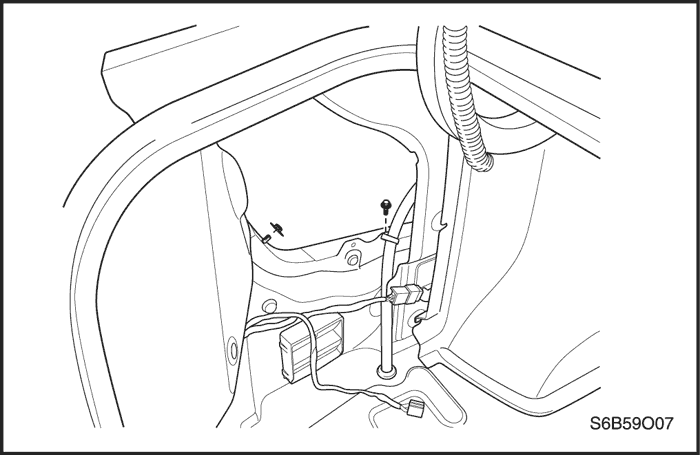

  6. Remove the luggage compartment rear quarter trim panels. Refer to Section 9G, Interior Trim.
  7. Remove the bolts and the nuts in the luggage compartment.

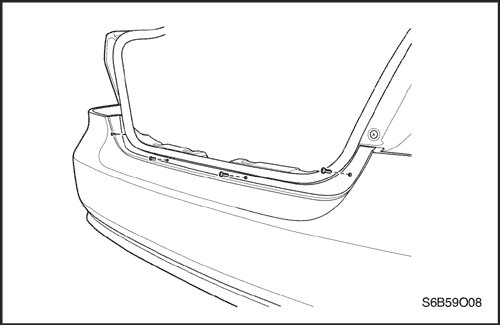

    8. S6B59O08
    Display graphicTranslations of text in graphics


  8. Remove the rear upper fascia screws.
  9. Remove the fascia.

S6B59O08
Display graphicTranslations of text in graphics


Installation Procedure

    Notice : Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

  1. Install the fascia with the rear upper fascia screws.

    2. Tighten
    Tighten the rear upper fascia screws to 1.5 N•m (13 lb-in).


    S6B59O07
    Display graphicTranslations of text in graphics


  2. Install the bolts and the nuts in the luggage compartment.

    3. Tighten
    Tighten the luggage compartment fascia bolts to 4 N•m (35 lb-in).


    S6B59O06
    Display graphicTranslations of text in graphics


  3. Install the luggage compartment rear quarter trim panels.Refer to Section 9G, Interior Trim.
  4. Install the nuts behind the rear bumper energy absorber.

    5. Tighten
    Tighten the rear bumper energy absorber nuts to 24 N•m (18 lb-ft).


    S6B59O05
    Display graphicTranslations of text in graphics


  5. Install the screws behind the fascia.

    6. Tighten
    Tighten the behind fascia screws to 1.5 N•m (13 lb-in).

  6. Install the splash shields with the screws.

    7. Tighten
    Tighten the splash shield screws to 1.5 N•m(13 lb-in).

  7. Install the mud guards with the screws.

    8. Tighten
    Tighten the mud guard screws to 1.5 N•m(13 lb-in).

  8. Install the rear wheels. Refer to Section 2E, Tires and Wheels.

GENERAL DESCRIPTIONAND SYSTEM OPERATION

Bumpers

The bumper systems are designed to sustain a collision into a fixed barrier at either 8km/h (5 mph) or 4km/h (2.5 mph) without damage.
After absorbing the energy of a collision, these bumper systems restore themselves to their original position. Both the front and the rear bumpers feature an internal foam energy absorber and a polymer fascia cover. The rear bumper fascia must be removed before access can be gained to the energy absorber and the bumper. The front bumper assembly can be removed as a whole unit or the fascia cover can be removed separately.
